NETGEAR GS748T - ProSafe Smart Switch User Manual

GS748T Smart Switch Hardware Installation Guide
3-2 Applications
v1.1, September 2007

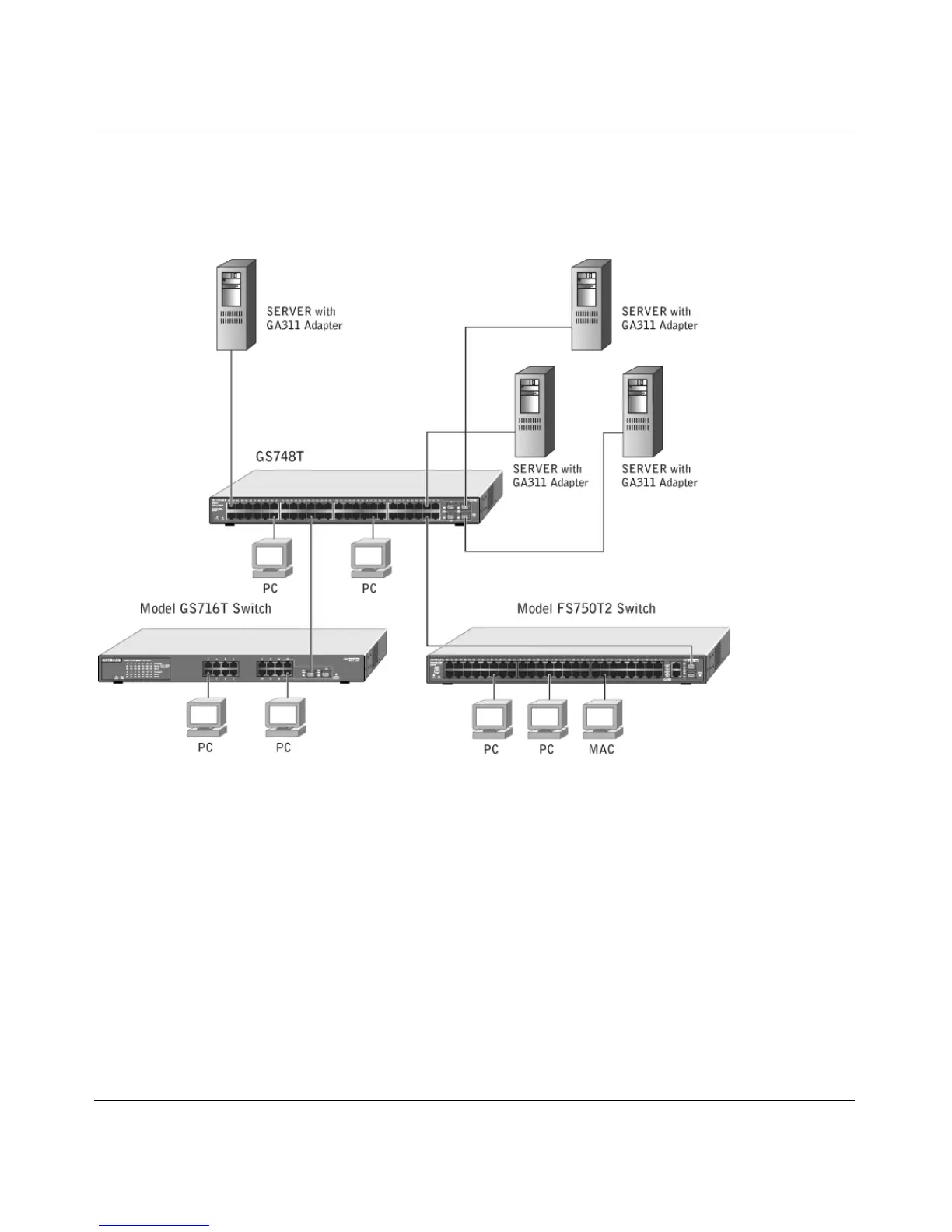

Backbone Switching
You can use your GS748T Gigabit Smart Switch as a backbone switch in a small network that
gives users high-speed access to servers and other network devices.
Figure 3-2

NETGEAR GS748T - ProSafe Smart Switch Specifications

General

Model	GS748T
Device Type	Smart Switch
SFP Slots	4
Form Factor	Rack-mountable
Switching Capacity	96 Gbps
MAC Address Table Size	8K entries
VLAN Support	Yes
QoS	Yes
Humidity	10% to 90% non-condensing
RAM	128 MB
Flash Memory	32 MB
Power Device	Internal power supply
Ports	48 x 10/100/1000
Management	Web-based
Operating Temperature	0 - 50 °C
Voltage Required	100-240 VAC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Features	VLAN support, QoS, port mirroring, SNMP
