GS748T Smart Switch Hardware Installation Guide
Installation 4-5
v1.1, September 2007

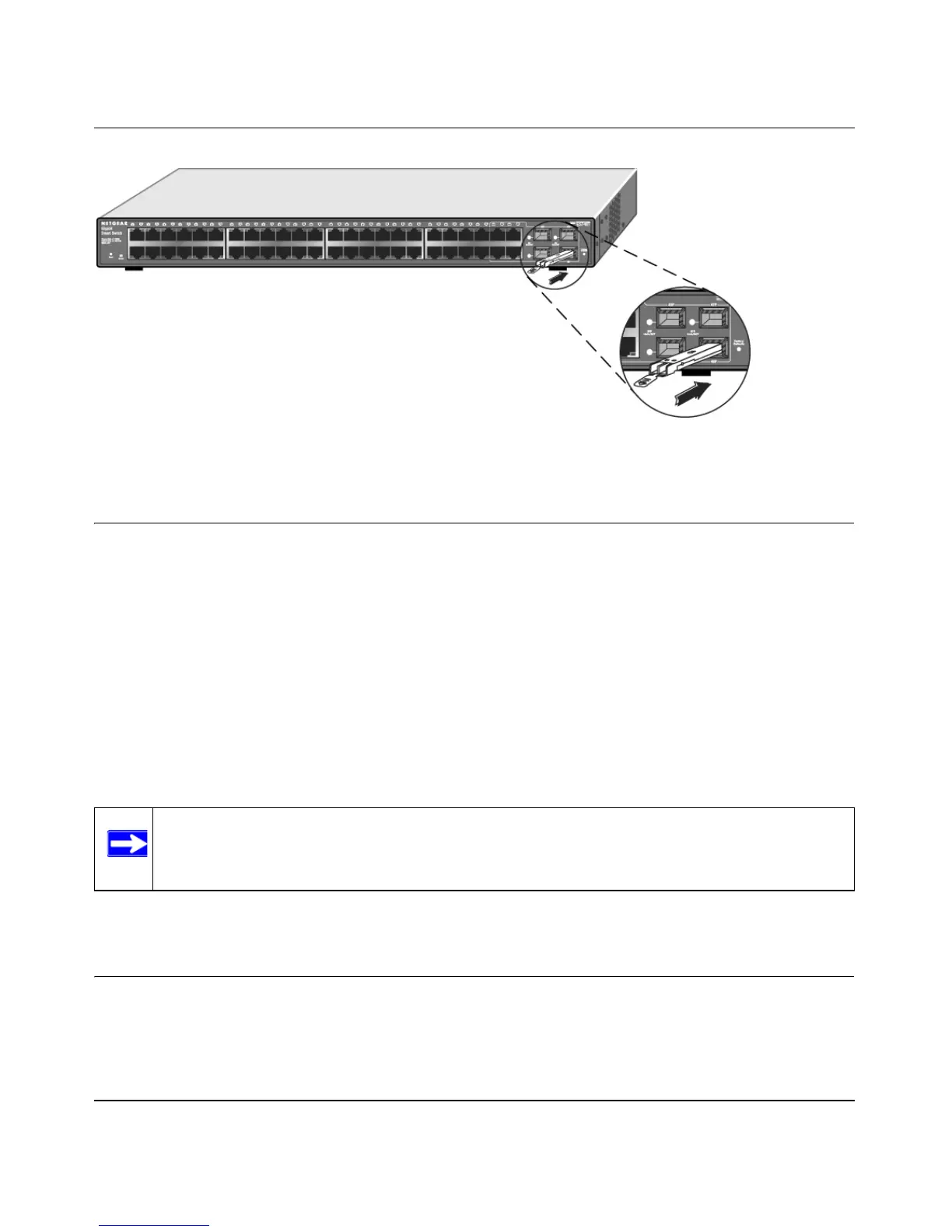

Figure 4-3
Step 6: Applying AC Power
Because he NETGEAR GS748T Gigabit Smart Switch has no ON/OFF switch, AC power must be
controlled by means of the IEC power cord connection. Select an appropriate unswitched,
grounded AC facility outlet so as to avoid any future inadvertent power interruptions. Use the
following procedure to apply AC power:
1. Connect the female end of the supplied IEC AC power adapter cable to the power receptacle
on the back of the switch.
2. Connect the 3-pronged end of the AC power adapter cable to the AC outlet.
When you apply power, the green Power LED on the switch front panel illuminates.
.
Step 7: Management through a Web Browser or Utility
Program (Initial Configuration)
Your NETGEAR GS748T Gigabit Smart Switch has embedded management software for viewing,
changing, and monitoring its activity and configuration. You need not use this management
software for it to function as a simple switch. However, the management software enables you to
Note: If the Power LED does not light, check that the power cable is installed correctly
and that the AC power supply is present. If this does not resolve the problem, refer
to Appendix A, “Troubleshooting”.

NETGEAR GS748T - ProSafe Smart Switch Specifications

General

Model	GS748T
Device Type	Smart Switch
SFP Slots	4
Form Factor	Rack-mountable
Switching Capacity	96 Gbps
MAC Address Table Size	8K entries
VLAN Support	Yes
QoS	Yes
Humidity	10% to 90% non-condensing
RAM	128 MB
Flash Memory	32 MB
Power Device	Internal power supply
Ports	48 x 10/100/1000
Management	Web-based
Operating Temperature	0 - 50 °C
Voltage Required	100-240 VAC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Features	VLAN support, QoS, port mirroring, SNMP
