Hardware Setup
10
JWNR2010v5 N300 Wireless Router
Back Panel
The back panel has the following ports, button, and connector:
Ethernet ports
Internet port
AC power connector
WPS/Reset button

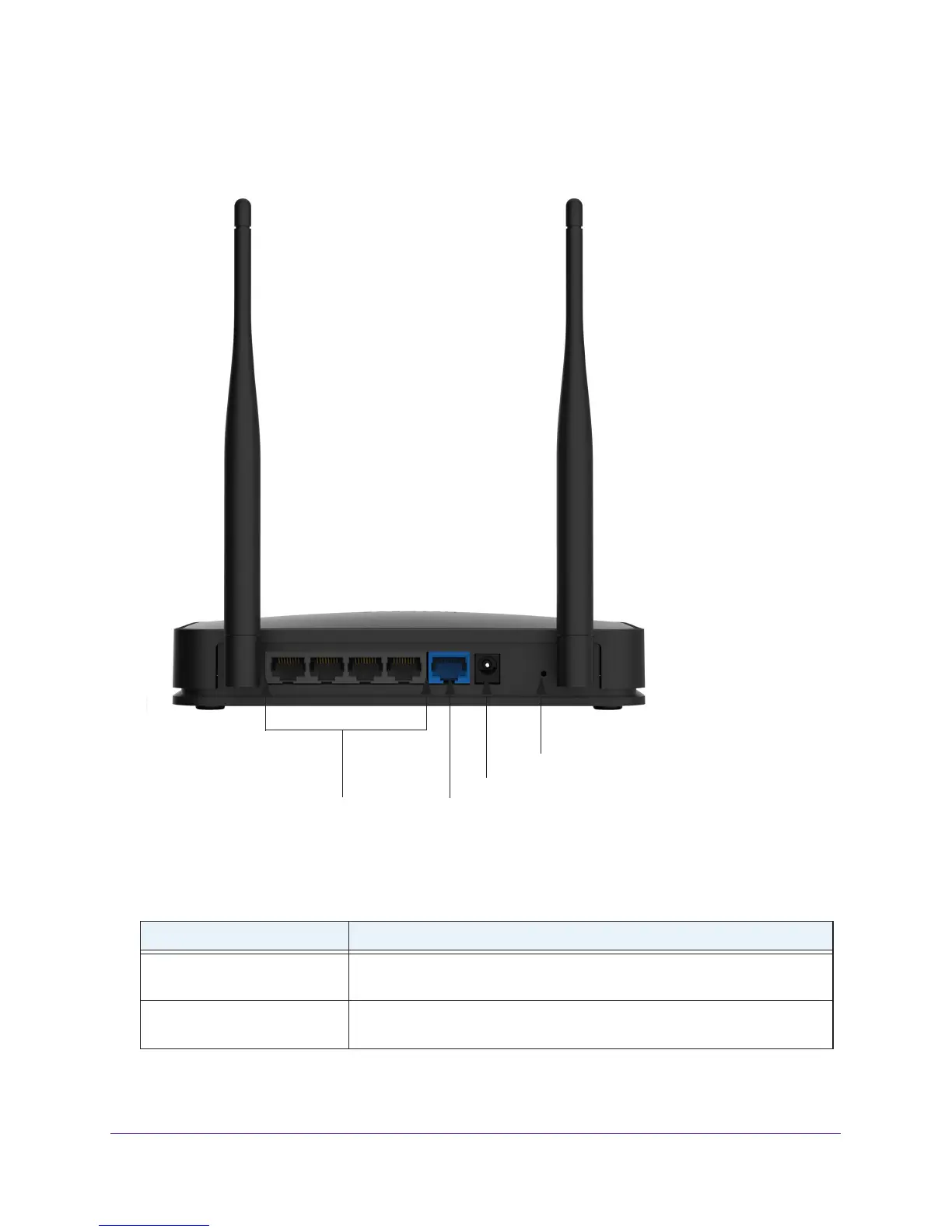

Figure 3. Back panel
Table 2. Back panel port, button, and connector descriptions
Port or Connector Description
Ethernet ports Four local area networks (LAN) Ethernet ports for connecting the router to
your local computers.
Internet port Ethernet port for connecting the router to a cable broadband modem or DSL
broadband modem.
The Internet port is also referred to as the WAN port.
