Hardware overview of model MS510TXM
Model MS510TXM provides eight Gigabit Ethernet multispeed copper ports and two
dedicated SFP+ fiber uplink ports that support 10G and 1G. Four of the multispeed
copper ports support 2.5G, 1G, and 100M and each of the other four multispeed copper
ports supports 10G, 5G, 2.5G, 1G, and 100M.
Front panel model MS510TXM
The following figure shows the front panel of model MS510TXM.

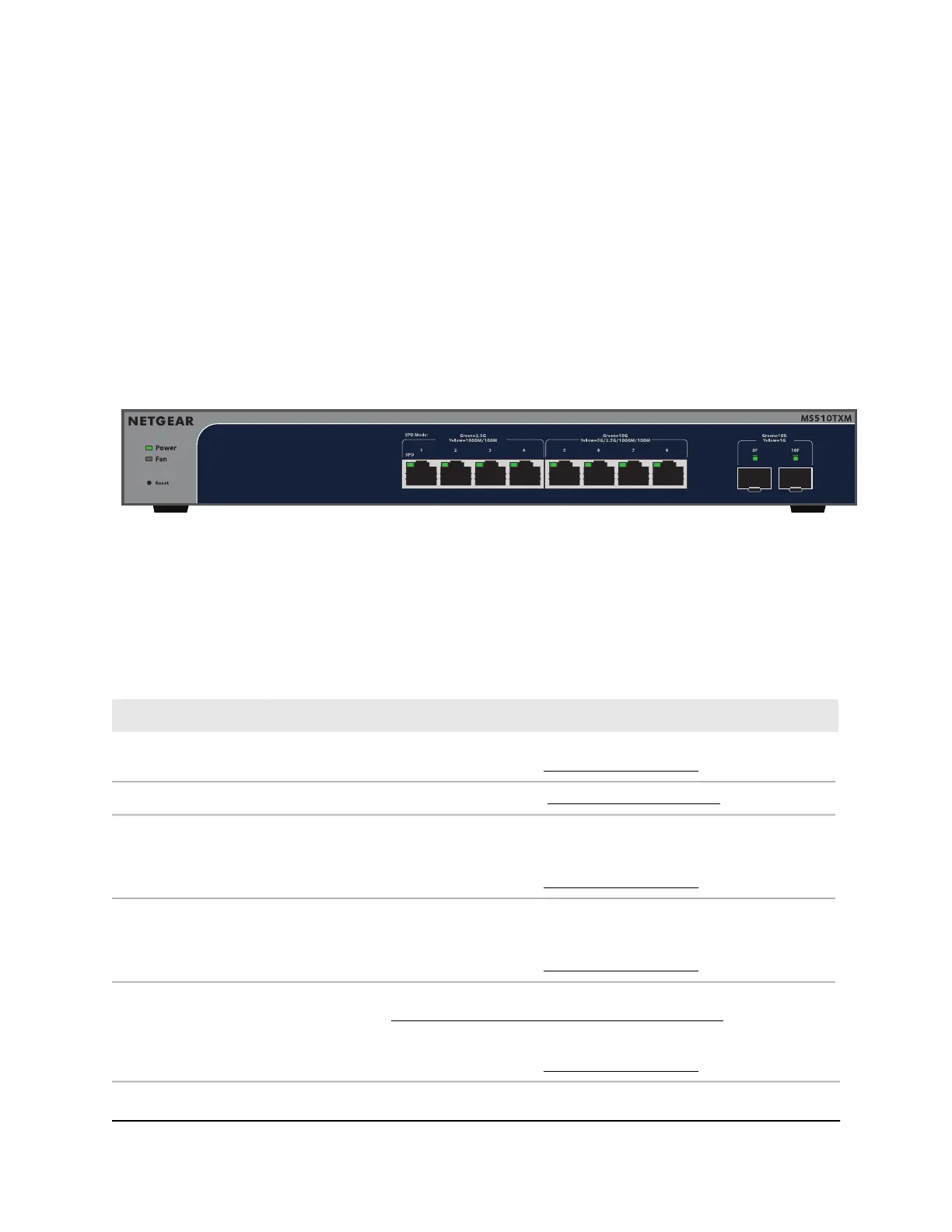

Figure 1. Front panel model MS510TXM
The following table describes the components on the front panel from left to right. The
components are clearly labeled on the front panel.
Table 1. Front panel components model MS510TXM
DescriptionComponent
Power LED and Fan LED.
For more information about the LEDs, see LEDs model MS510TXM on page 13.
System LEDs
Recessed multi-function Reset button (see Multi-function Reset button on page 18).Reset button
Four independent 2.5GBASE-T RJ-45 ports that also support 100/1000BASE-T. Each
port provides a left LED that functions as the combined link, speed, and activity LED.
(The port does not provide a right LED.)
For more information about the LEDs, see LEDs model MS510TXM on page 13.
Ports 1, 2, 3, and 4
Four independent 2.5G/5G/10GBASE-T RJ-45 ports that also support 100/1000BASE-T.
Each port provides a left LED that functions as the combined link, speed, and activity
LED. (The port does not provide a right LED.)
For more information about the LEDs, see LEDs model MS510TXM on page 13.
Ports 5, 6, 7, and 8
Two independent SFP+ ports in which you can install transceiver modules and direct
attach cables (see Transceiver modules and cables for SFP+ fiber ports on page 18).
These ports support 10G or 1G fiber transceiver modules. Each port provides a single
LED that functions as the combined link, speed, and activity LED.
For more information about the LEDs, see LEDs model MS510TXM on page 13.
Ports 9F and 10F
Hardware Installation Guide12Hardware Overview
8-Port Multi-Gigabit/10G Ethernet (Ultra60 PoE++) Smart Managed Pro Switch with 2 SFP+ Ports
