NETGEAR MS510TXM User Manual

Table 4. LEDs on the front panel of model MS510TXUP (Continued)
DescriptionLED
Off: No link is established.
Solid green: A valid link at a speed of 2.5 Gbps is established.
Blinking green: The port is transmitting or receiving packets at 2.5 Gbps.
Solid yellow: A valid link at a speed of 100 Mbps or 1000 Mbps is established.
Blinking yellow: The port is transmitting or receiving packets at 100 Mbps or 1000 Mbps.
Ports 1–4, left LEDs
Link, speed, and
activity
Off: The port is not delivering PoE.
Solid green: The port is delivering PoE.
Solid yellow: A PoE fault occurred. For more information, see PoE troubleshooting
suggestions on page 37.
Ports 1–4, right LEDs
PoE status
Off: No link is established.
Solid green: A valid link at a speed of 10 Gbps is established.
Blinking green: The port is transmitting or receiving packets at 10 Gbps.
Solid yellow: A valid link at a speed of 5 Gbps, 2.5 Gbps, 1000 Mbps, or 100 Mbps is
established.
Blinking yellow: The port is transmitting or receiving packets at 5 Gbps, 2.5 Gbps,
1000 Mbps, or 100 Mbps.
Ports 5–8, left LEDs
Link, speed, and
activity
Off: The port is not delivering PoE.
Solid green: The port is delivering PoE.
Solid yellow: A PoE fault occurred. For more information, see PoE troubleshooting
suggestions on page 37.
Ports 5–8, right LEDs
PoE status
Off: No module is installed in the SFP+ port or no link is established on the SFP+ port.
Solid green: The module in the SFP+ port established a valid link at a speed of 10 Gbps.
Blinking green: The module in the SFP+ is transmitting or receiving packets at 10 Gbps.
Solid yellow: The module in the SFP+ port established a valid link at a speed of 1 Gbps.
Blinking yellow: The module in the SFP+ is transmitting or receiving packets at 1 Gbps.
Ports 9F and 10F, LEDs
Link, speed, and
activity
Back panel model MS510TXUP
The switch integrates a fixed, internal power supply unit (PSU).
The back panel contains a Kensington lock slot and the AC power connector for power
input of 100–240V ~ 50–60Hz. The PSU draws 7.0A max.

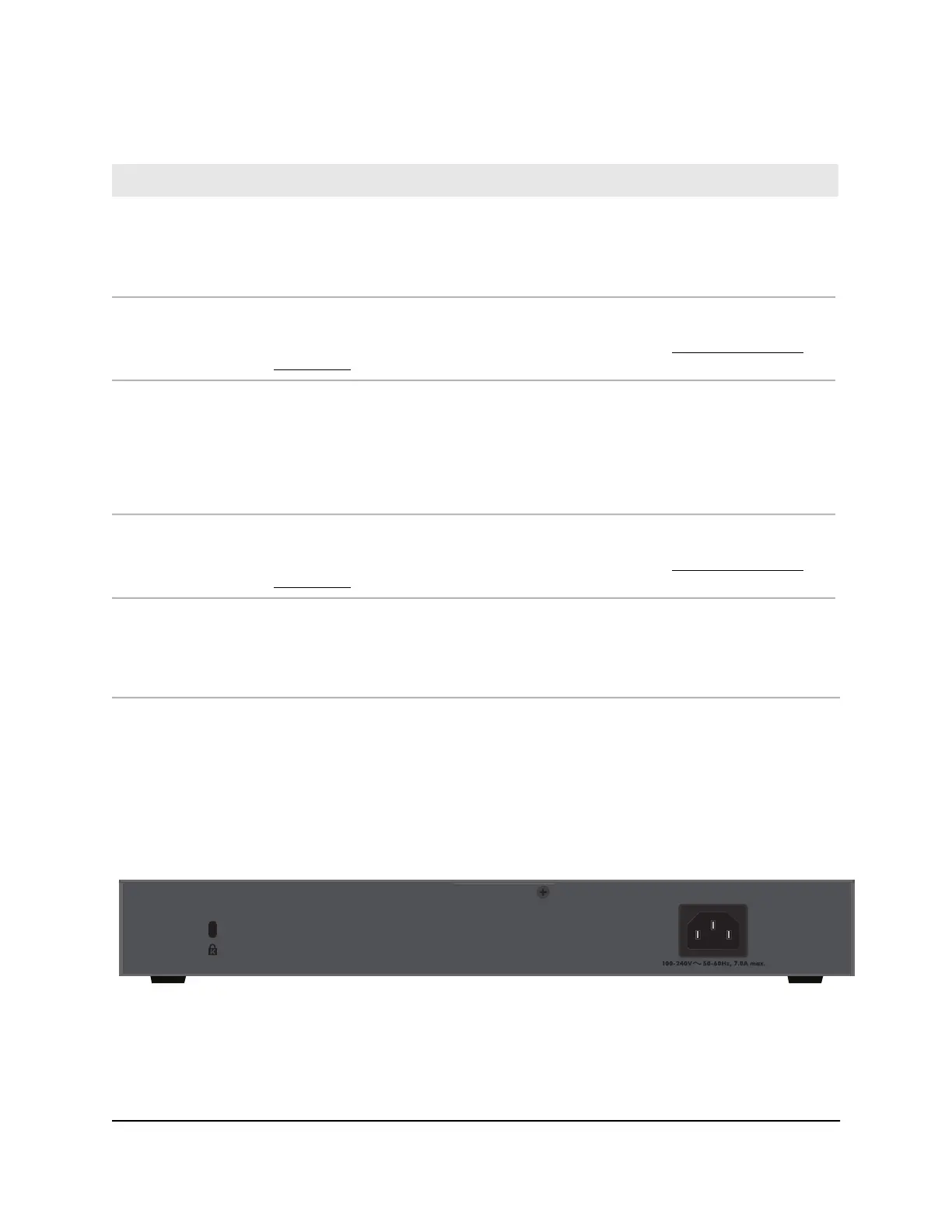

Figure 4. Back panel model MS510TXUP
Hardware Installation Guide16Hardware Overview
8-Port Multi-Gigabit/10G Ethernet (Ultra60 PoE++) Smart Managed Pro Switch with 2 SFP+ Ports
