Advanced Home Settings
42
R6100 WiFi Router

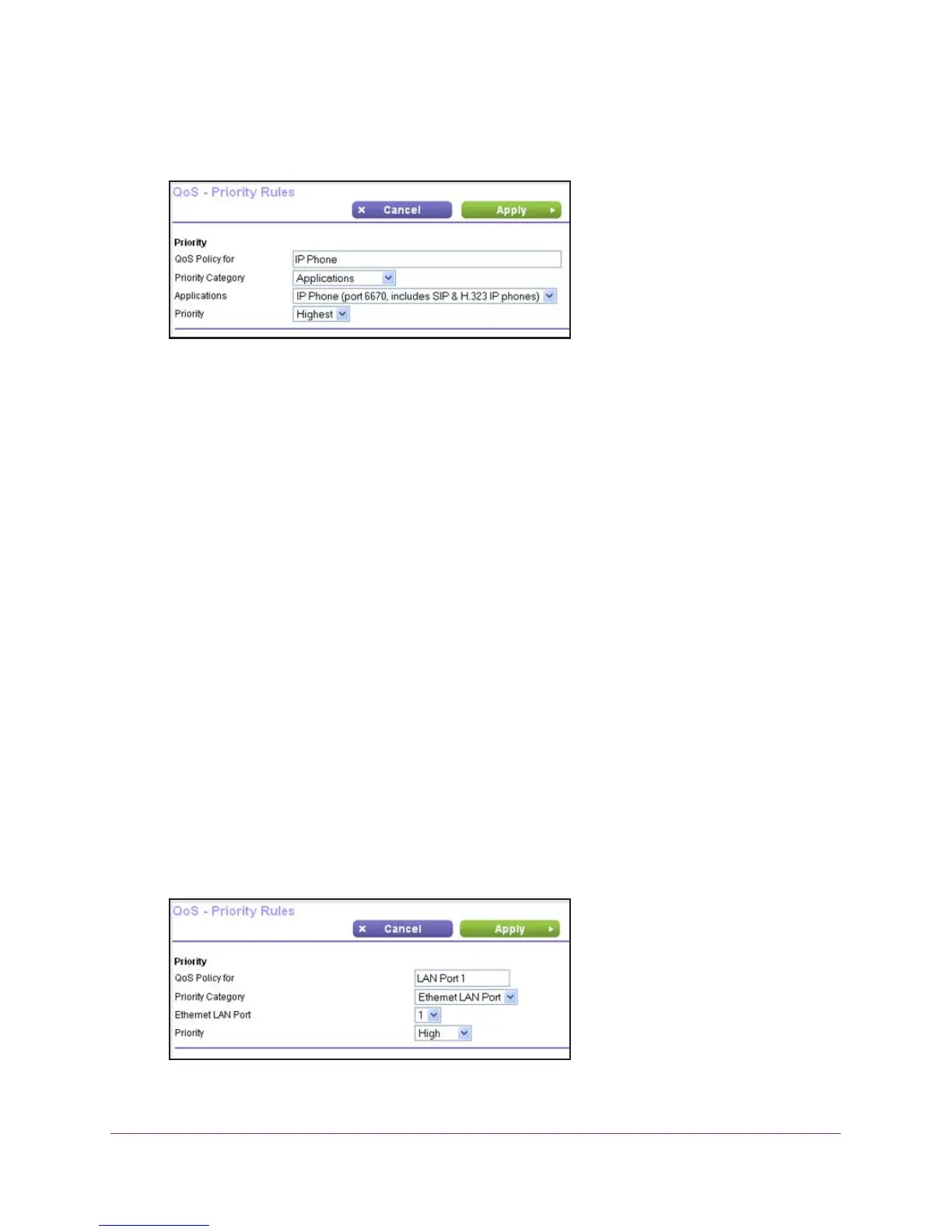

4. To add a priority rule, scroll down to the bottom of the QoS Setup screen and click the Add
Priority Rule button.
5. In the QoS Policy for field, type the name of the application or game.
6. In the Priority Category list, select either Applications or Online Gaming.
A list of applications or games displays.
7. Scroll and select Add a New
Application or Add a New Game, as applicable.
8. If prompted, in the Connection
Type list, select either TCP, UDP, or TCP/UDP (both).
Specify the port number or range of port numbers that the application or game uses.
9. From the Priority list, select the priority for Internet access for this traf
fic relative to other
applications and traffic.
The options are Low, Normal, High, and Highest.
10. Click the Apply button.
The rule is saved in the QoS Policy list.
The QoS Setup screen displays.
QoS for a Router LAN Port
To create a QoS policy for a device connected to one of the router’s LAN ports:
1. Select ADV
ANCED > Setup > QoS Setup.
2. Select the T
urn Internet Access QoS On check box.
3. Click the Set Up QoS Rule button.
4. Click the Add Priority Rule button.
5. From the Priority Category list, select Ethernet LAN Port.
6. From the QoS Policy for list, select the LAN port.
