NETGEAR R7500

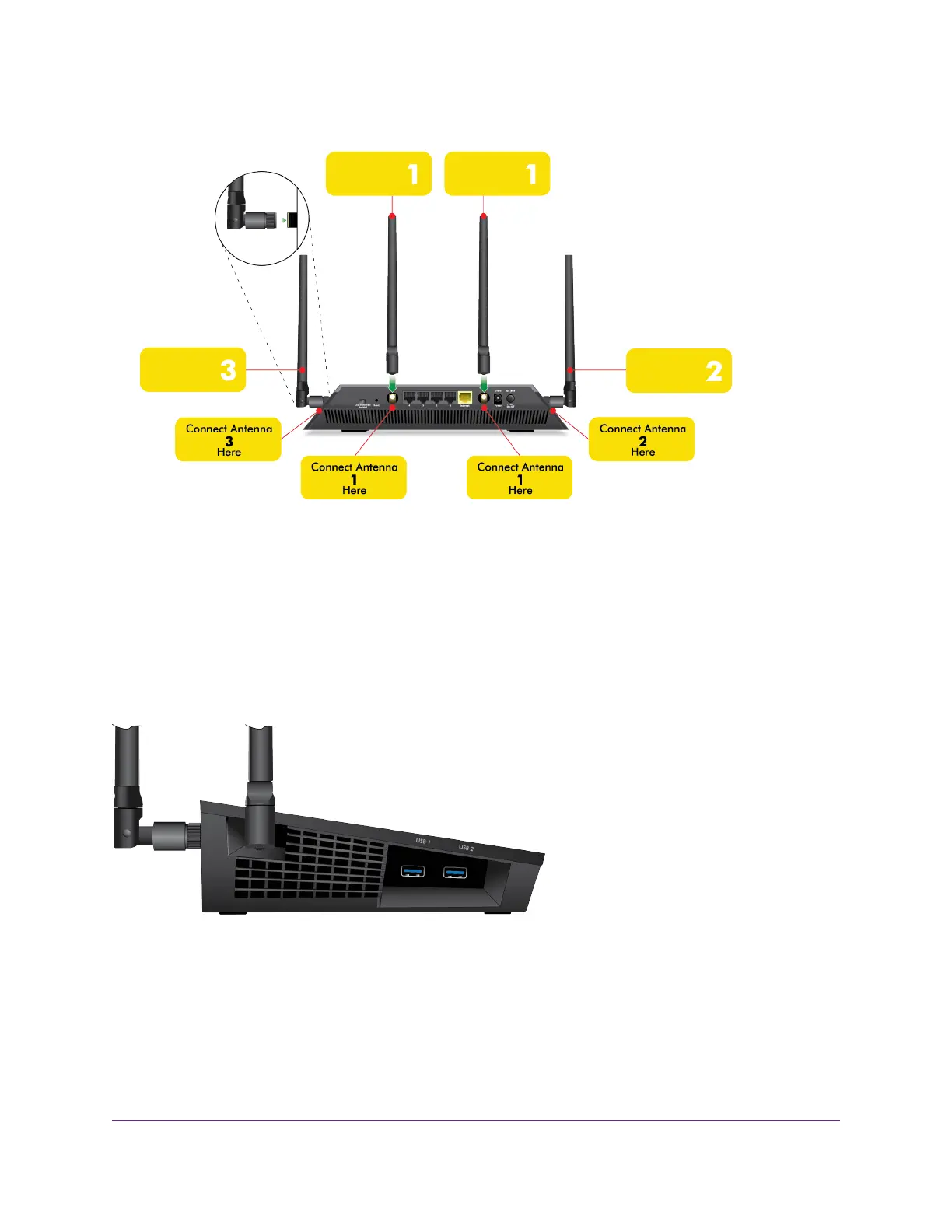

2. Align the antennas with the antenna posts on the router.
3. Attach the antennas on the threaded antenna posts.
4. Position the antennas for the best WiFi performance.
NETGEAR recommends that you position all of the antennas vertically, as shown.
USB Ports on the Left Panel
Two 3.0 USB ports are located on the left panel.
Figure 4. USB ports
eSATA Port on the Right Panel
An eSATA port is located on the right panel.
Hardware Setup
13
