Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
2-6 Introduction
v3.0, December 2005

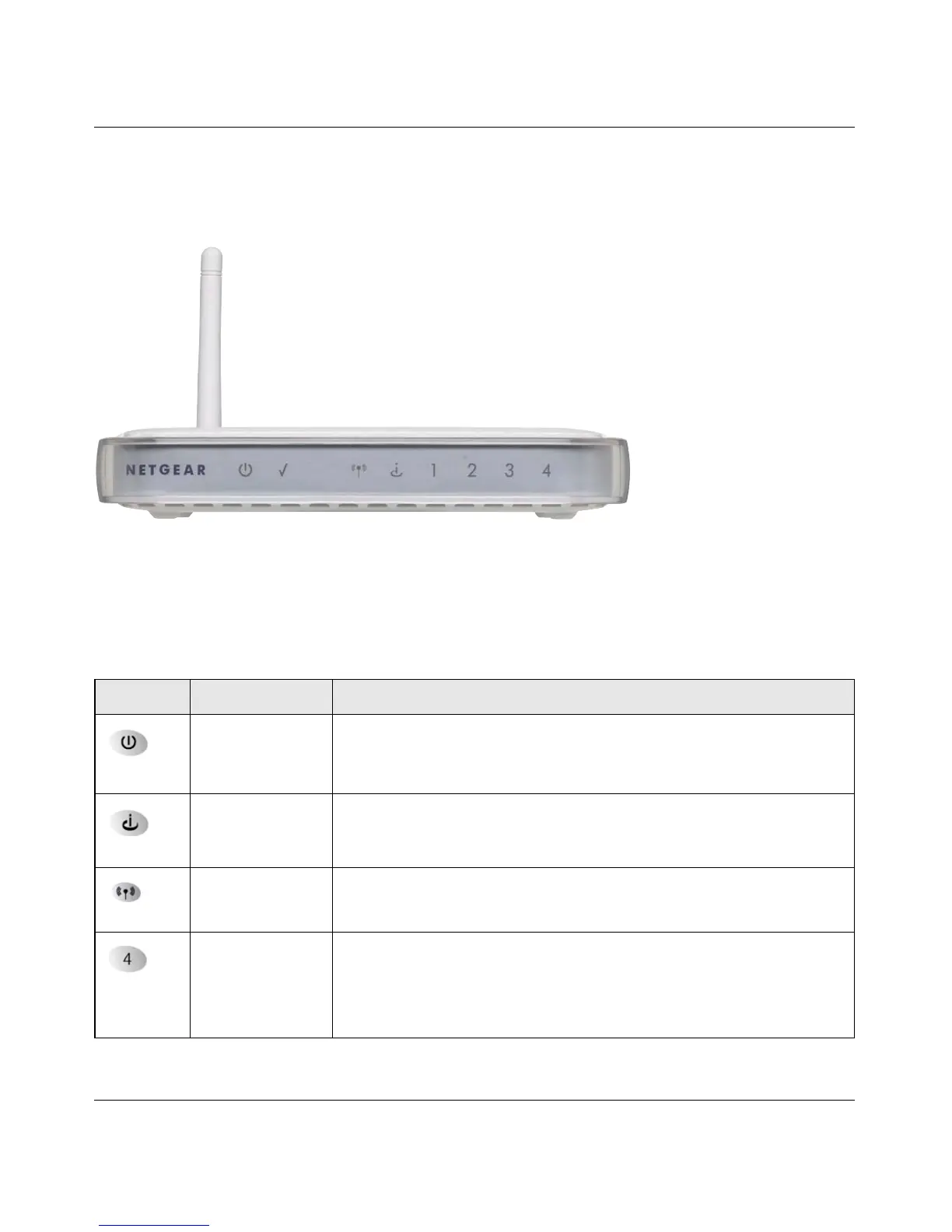

The Router’s Front Panel
The front panel of the WGT624 v3 wireless router contains the status LEDs described below.
You can use some of the LEDs to verify connections. Viewed from left to right, Table 2-1
describes the LEDs on the front panel of the router. These LEDs are green when lit.
Figure 2-1
Table 2-1. LED Descriptions
Label Activity Description
Power
On
Off
Power is supplied to the router.
Power is not supplied to the router.
Internet
On
Blink
The Internet (Wide Area Network) port has detected a link with an
attached device.
Data is being transmitted or received by the Internet port.
Wireless
On Indicates that the Wireless port is initialized.
Local
On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local (LAN) port has detected link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
