Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Introduction 2-7
v3.0, December 2005

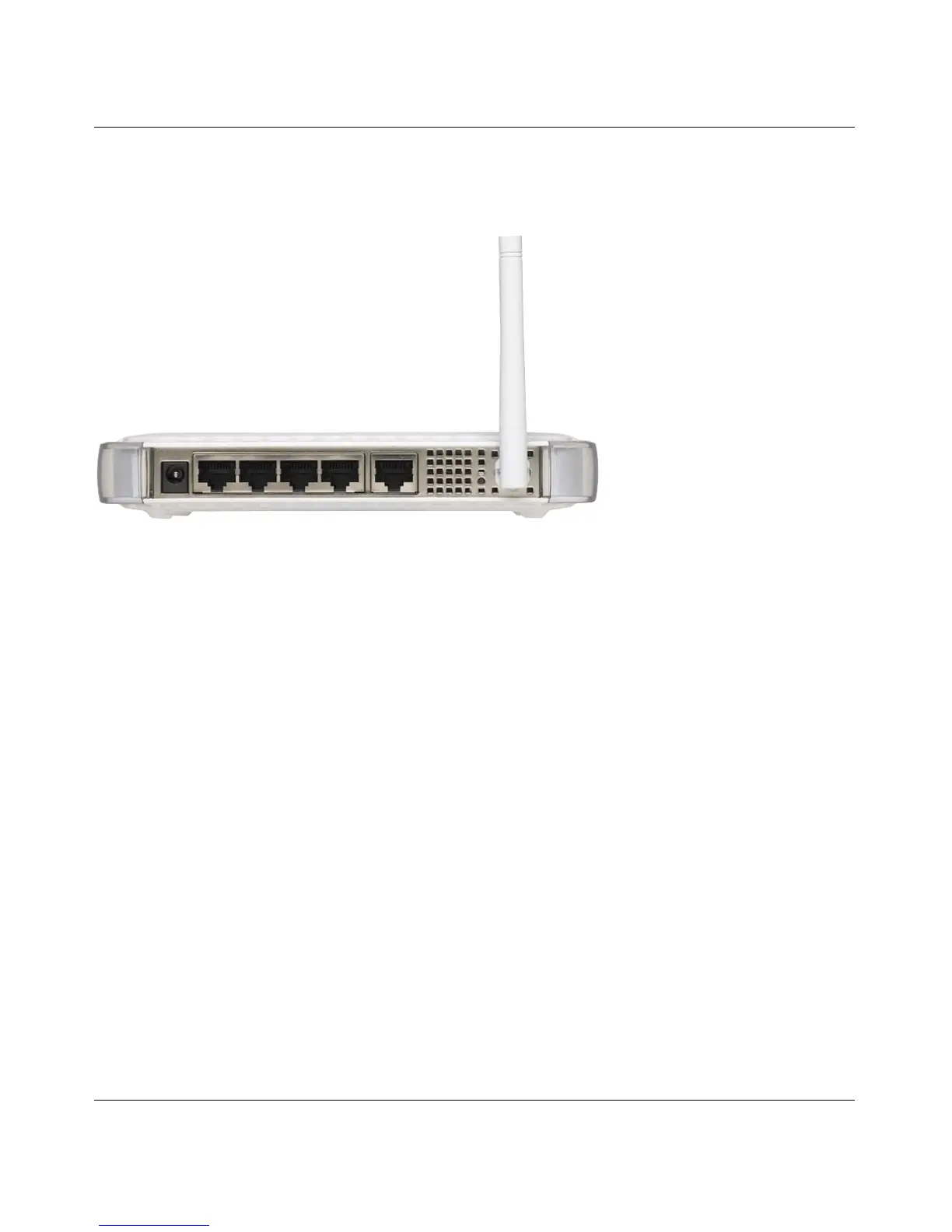

The Router’s Rear Panel
The rear panel of the WGT624 v3 wireless router contains the port connections listed below.
Viewed from left to right, the rear panel contains the following features:
• AC power adapter outlet
• Four Local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local
computers
• Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem
• Factory Default Reset push button
• Wireless antenna
Figure 2-2
