Wireless-N 150 Router WNR1000v3 User Manual
Fine-Tuning Your Network 5-18
v1.0, February 2010
a. If you chose to add a new entry, the screen expands as shown:
b. In the QoS Policy for field, enter a descriptive name for the new application or game.
c. Select the packet type, either TCP, UDP, or both (TCP/UDP), and specify the port
number or range of port numbers used by the application or game.
4. From the Priority drop-down list, select the priority that this traffic should receive relative to
other applications and traffic when accessing the Internet. The options are Low, Normal, High,
and Highest.
5. Click Apply to save this rule to the QoS Policy list and return to the QoS Setup screen.
6. In the QoS Setup screen, select the Turn Internet Access QoS On check box.
7. Click Apply.
QoS for a Router LAN Port
To create a QoS policy for a device connected to one of the router’s LAN ports:
1. From the main menu, under Advanced, select QoS Setup. The QoS Setup screen displays, as
shown in Figure 5-8 on page 5-16.
2. Click Setup QoS Rule and then click Add Priority Rule.

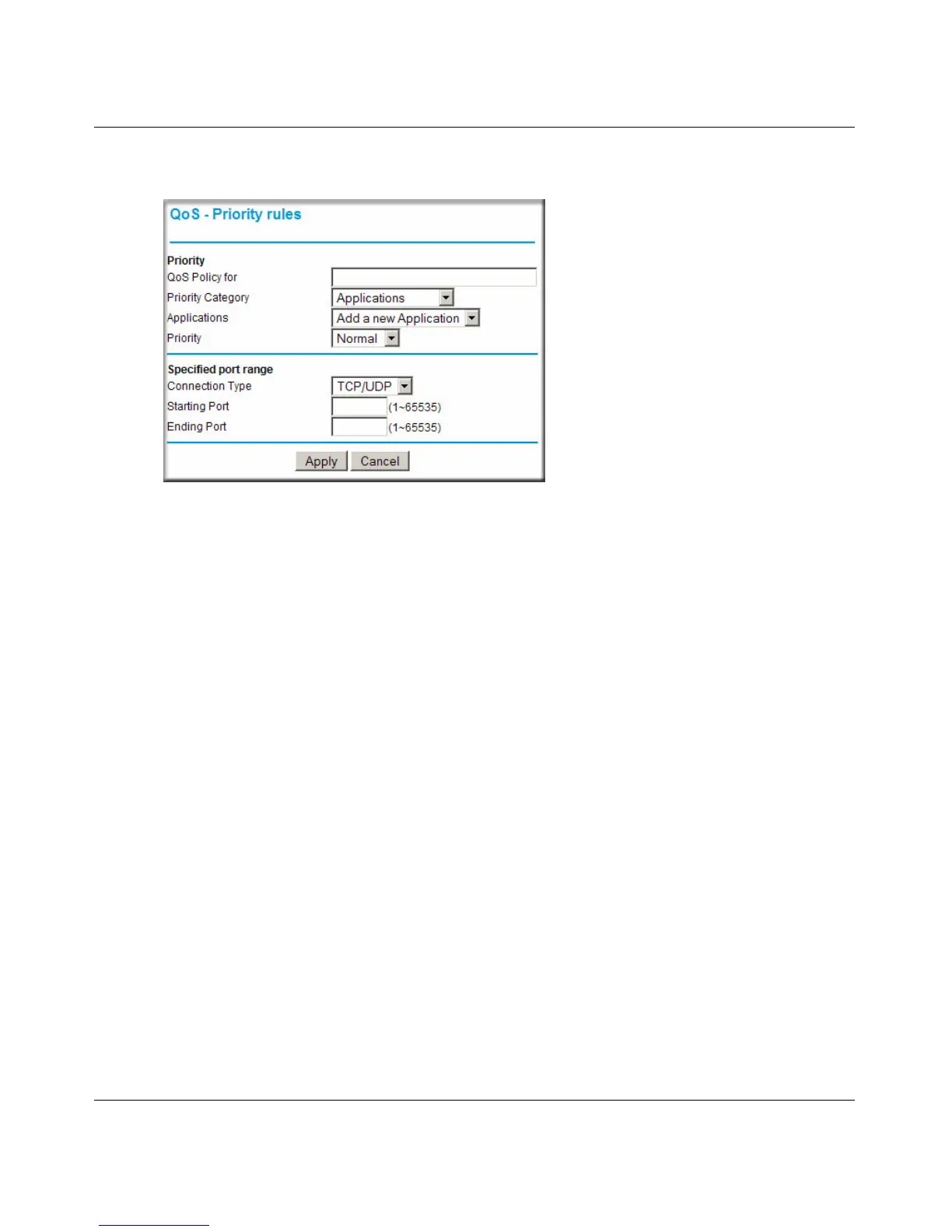

Figure 5-10
