150Mbps Wireless-N Outdoor AP User Manual
2.4 Hardware Installation Procedures
The procedures to install the 150Mbps outdoor AP please refer to

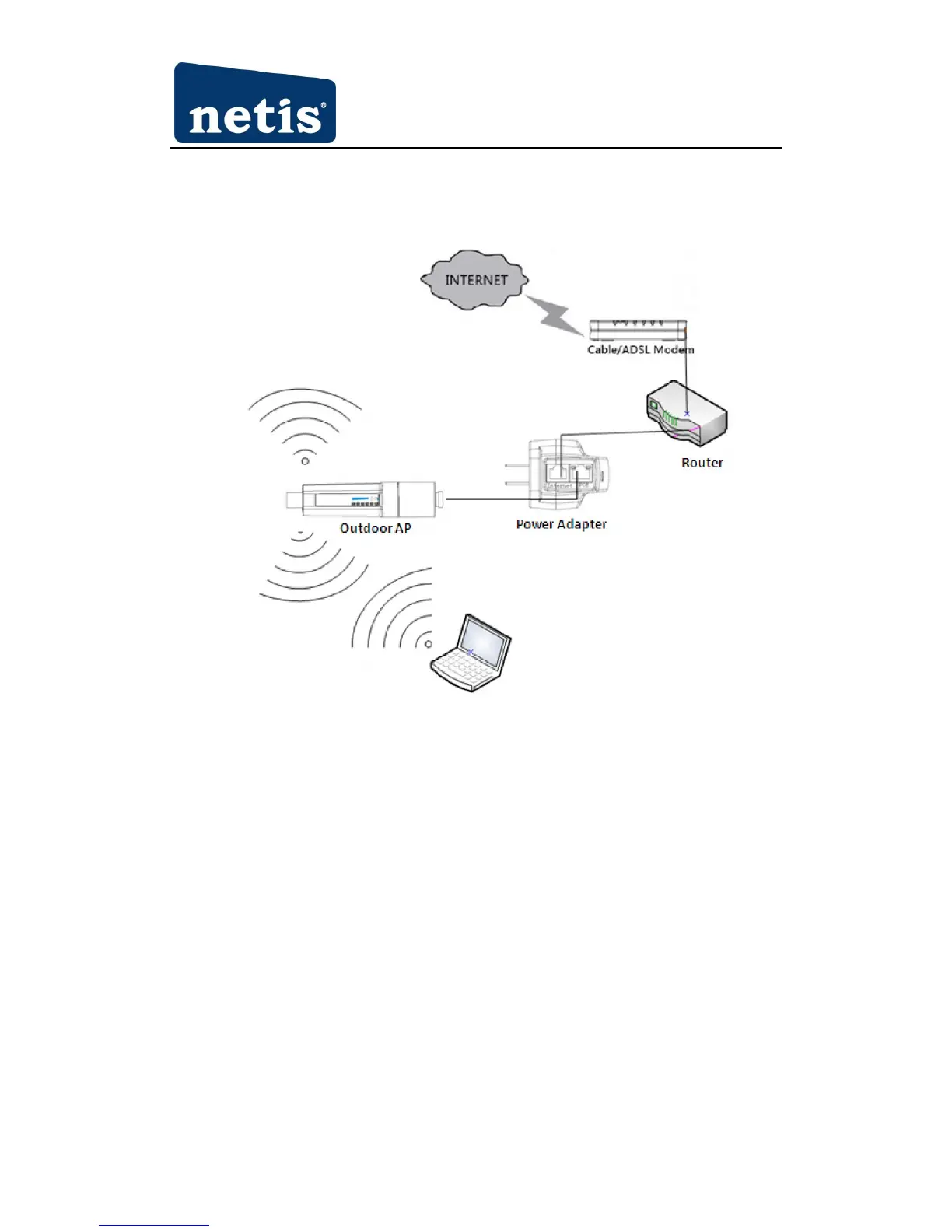

Figure 2-
Figure 2-4
Ø Step 1 connecting Cable/ADSL Modem to the WAN port.
Attach one end of an Ethernet cable to your modem’s Ethernet port, and the other end to one
of the WAN ports of your router.
Ø Step 2 connecting the power adapter.
Attach one end of an Ethernet cable to the Internet access router LAN port, the other end to
the Internet port of power adapter. Then plug the Power Adapter into an AC outlet.
Ø Step 3 connecting the 150Mpbs outdoor adapter.
Connect one side of your Ethernet cable to the POE port of your power adapter, the other
side to the LAN port of the 150Mbps outdoor AP
Ø Step 4 Power on the following devices in this order:
Cable/ADSL modem, Router, AP and PCs
