150Mbps Wireless-N Outdoor AP User Manual
4.4 Wireless LED Thresholds

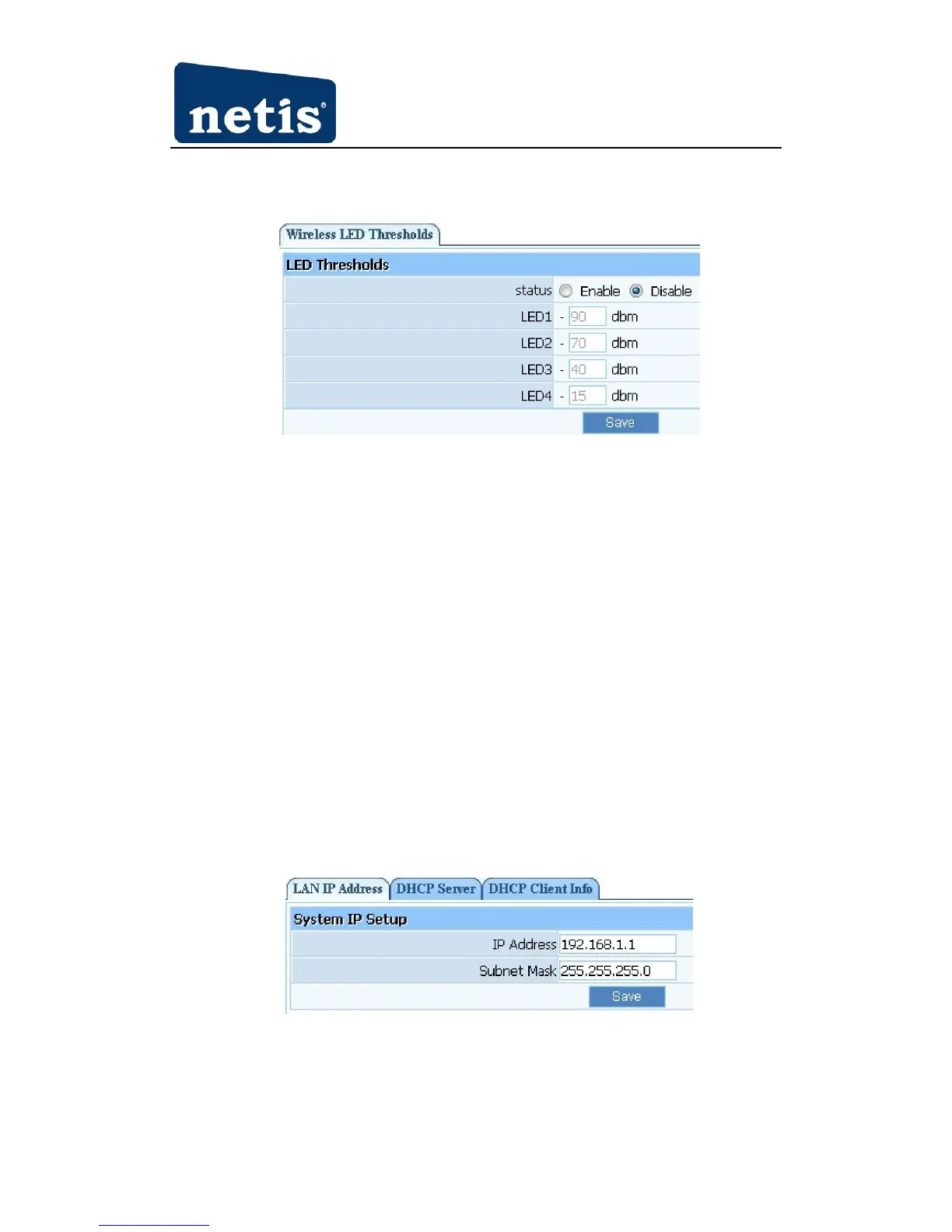

Figure 4-29
Please set the AP to the external LED lights and wireless signal strength received correspondence,
when the AP receives the wireless signal, according to the wireless signal strength, the
corresponding LED will be lit.
4.5 LAN Setup
According to actual needs, you can choose on or off the DHCP server, and also modify the DHCP
address pool range.
4.5.1 LAN IP Address
The IP address of LAN port is used for access router itself by computers that connect to the router
directly; here you can set IP address you need. The IP address format is like ***.***.***.***, and
default IP address is 192.168.1.1, the default subnet mask is 255.255.255.0.
Figure 4-30
