150Mbps Wireless-N Outdoor AP User Manual

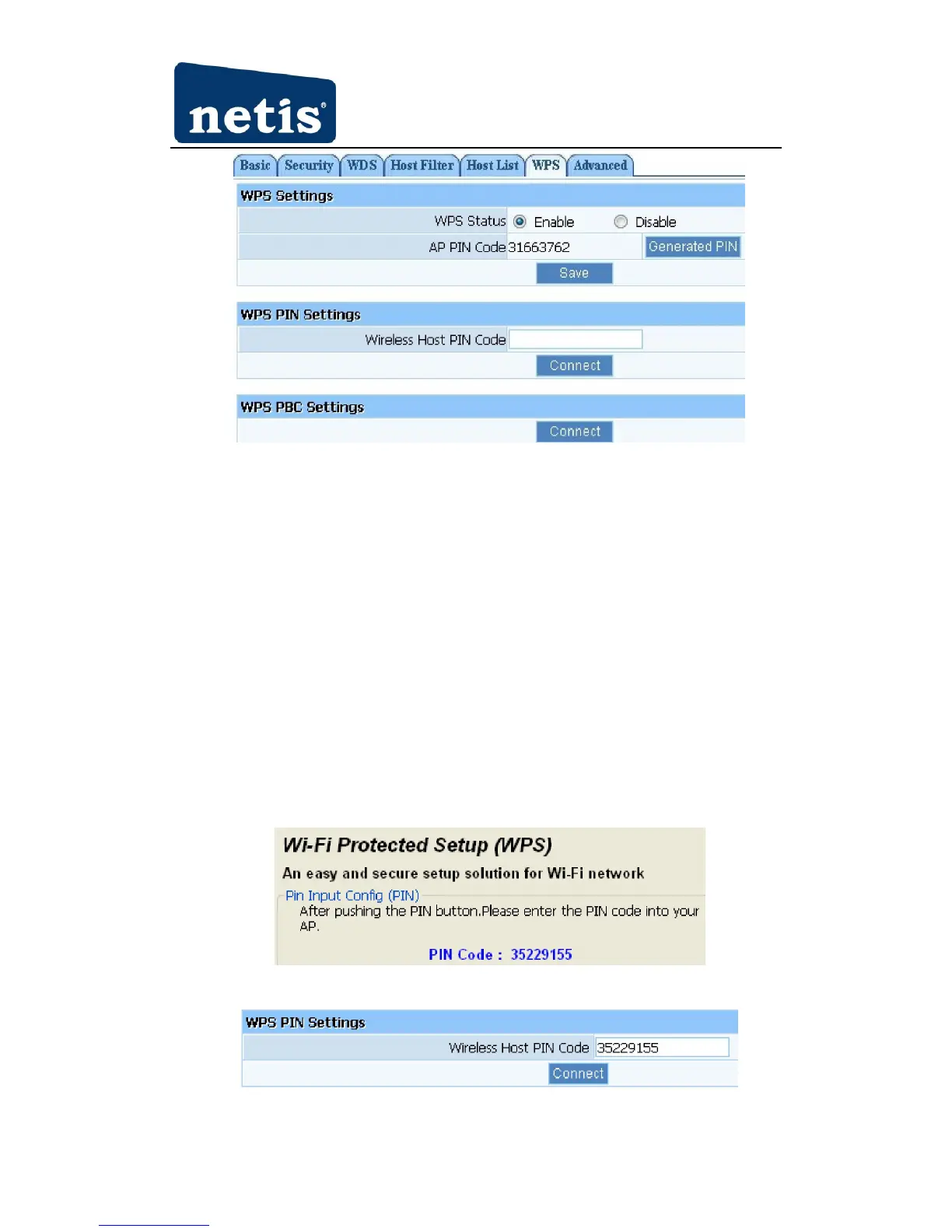

Figure 4-17
Ø WPS Status: you can use this function to setup the wireless connection between this router
and wireless network card. The default is disable.
Ø AP PIN Code: this code can mark a wireless product
Ø Wireless Host PIN Code: input the PIN of wireless network card that support WPS function.
Click connect, when it connect successfully, it will be encrypted to WPA2-PSK
Ø WPS PBC settings: Click connect, when it connect successfully, it will be encrypted to
WPA2-PSK
WPS can connect the wireless adapter and the router in a safe way. If you have a wireless network
card which has WPS button, you may set up a safe network via the following methods
Method 1:
1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ’connect’
Figure 4-18
Figure 4-19
