Manual Part Number:
5-06-7000-65-0
Manual File:
MN-A-0117 Rev. D
Revision Date: August 24, 2006 Page 1-11

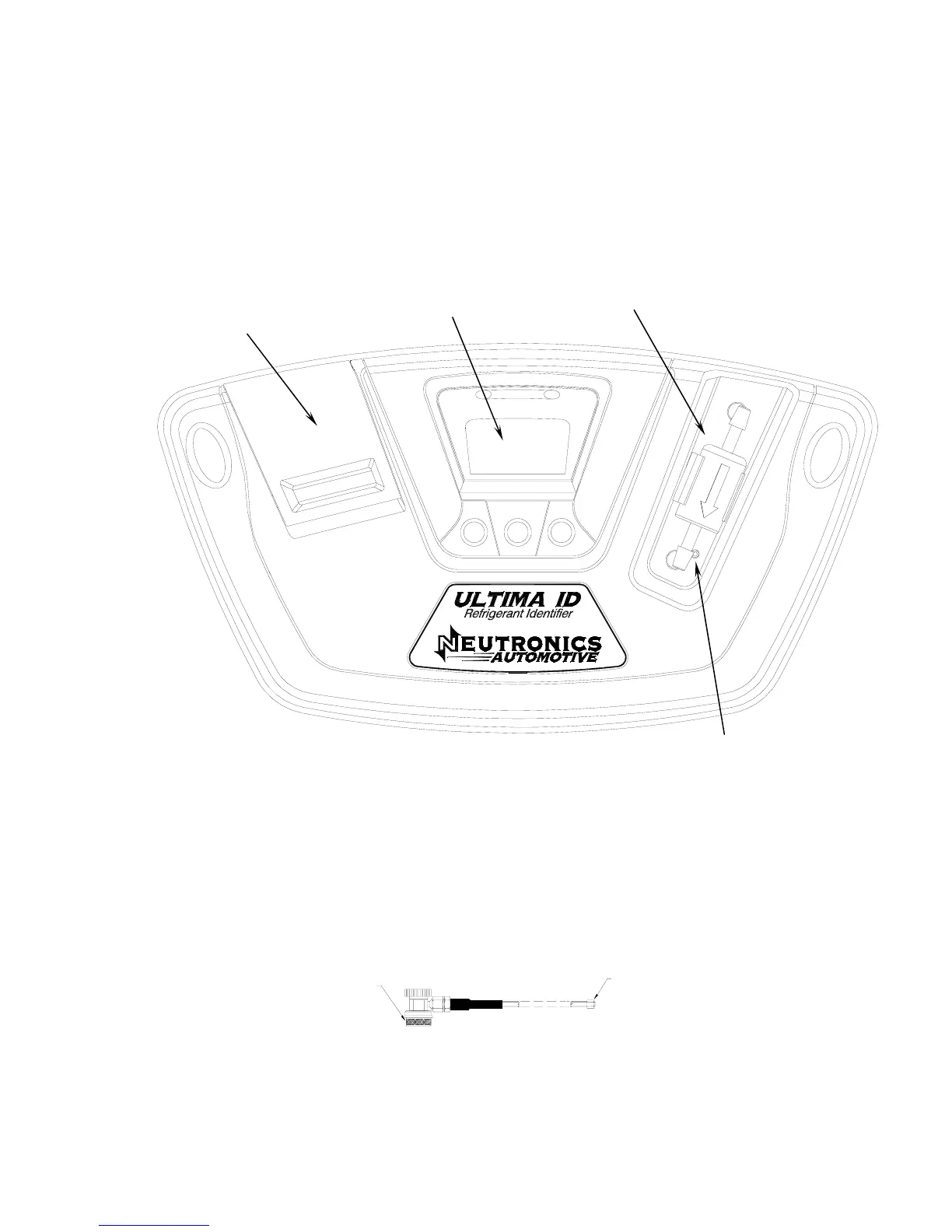

1.3 Ultima ID Components
1.3.1 Ultima ID Base Unit
The Ultima Id base unit houses the Graphic Display, Infrared Bench, Electrical Connections, and
Optional Printer Module. These components require no maintenance, therefore there are no
serviceable components internal to the instrument, and disassembly will void the warranty.
1.3.2 R134a Sample Hose
The 6-foot (1.8 meter) R134a Sample Hose is constructed of a nylon inner tube and a
polyurethane outer tube. The inner tube will handle all of the refrigerant transfer and will provide
containment up to 300 psig. The outer tube will provide protection of the inner tube from
abrasion, nicking, cutting, etc. The hose is provided with an instrument inlet port mating
connector on one end and the R134a Low Side Coupler on the service end.
Identifier End
Service End
R134a Low Side Coupler
Control Panel
Sam
le Filter
Printer Door
ir Intake Port
