1.3.3 R12 Sample Hose
The 6-foot (1.8 meter) R12 Sample Hose is constructed of a nylon inner tube and a polyurethane
outer tube. The inner tube will handle all of the refrigerant transfer and will provide containment
up to 300psig. The outer tube will provide protection of the inner tube from abrasion, nicking,
cutting, etc. The hose is provided with an instrument inlet port mating connector on one end and
a ¼” SAE female flare coupling nut on the service end.
1.3.4 R134a Tank Adapter Fitting
The R134a Tank Adapter Fitting will provide the user with an adapter to allow connection of the
R134a sample hose service end to a R134a cylinder ACME port.
1.3.5 Vehicle Power Cable
The Ultima ID is powered from a vehicles 12VDC battery. The Ultima ID power cable is a 6-foot
cable that has an instrument mating connector on one end and vehicle battery connection clips on
the other end. This harness is utilized to connect power from the vehicle battery to operate the
instrument. Note: The vehicle power cable can be used with the optional battery pack installed in
the unit. The vehicle power cable will not charge the battery.

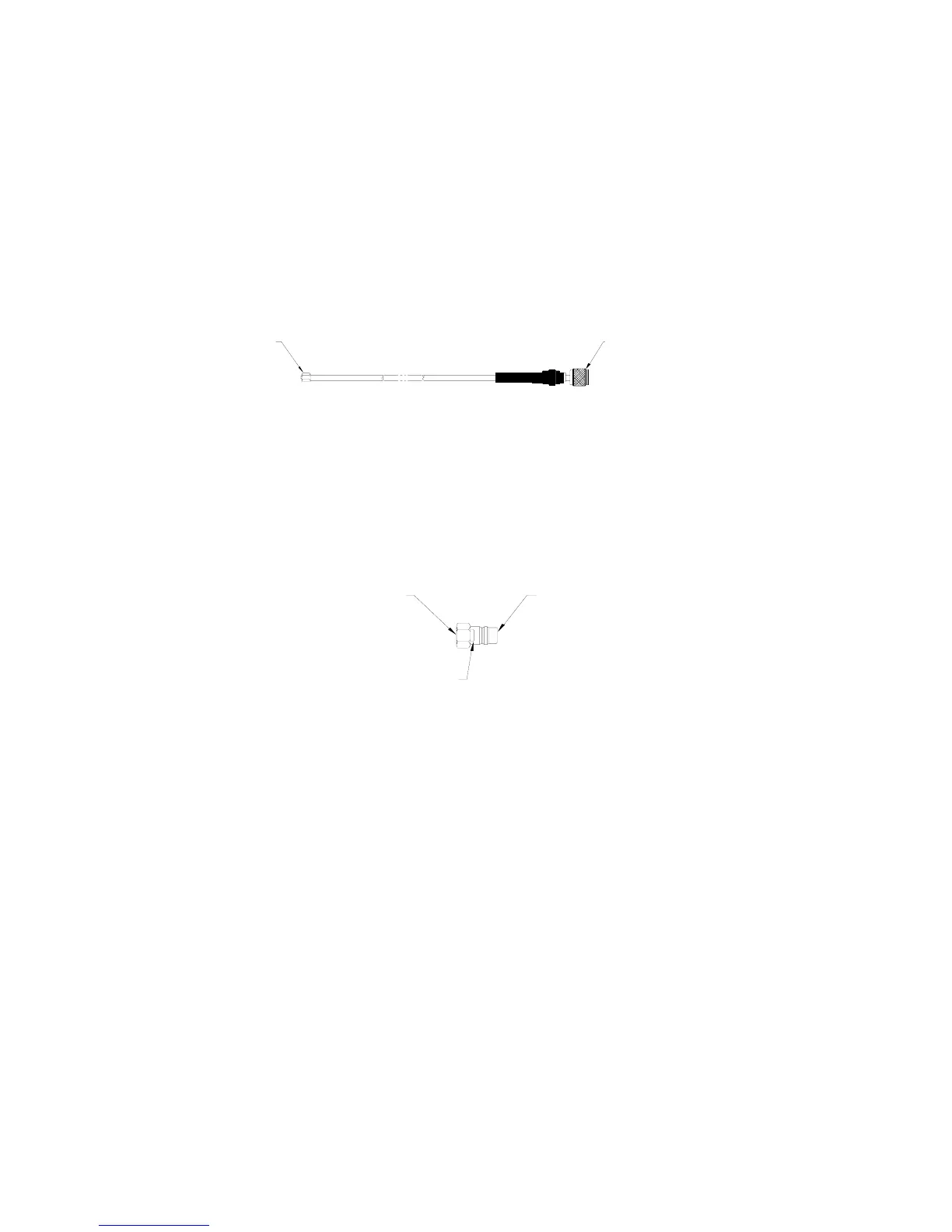

Service End
(1/4 SAE Flare Nut)
Identifier End
R134a Low Side Stub
(Fits into R134a Low Side
½” Acme Thread
(Threads onto Cylinder Stub)
O-Ring Seal
(Internal)
