2 ULTIMA ID OPERATION
2.1 First Use
2.1.1 Battery Installation (Optional)
The Ultima ID has, as an option, an internal rechargeable battery. If your Ultima ID is equipped
with the optional rechargeable battery, you must first install and charge the battery prior to use.
NOTE: The Ultima ID can be operated with or without the battery using the supplied battery clips.
Refer to Section 2.2 for instructions.
To install the optional battery, remove the battery cover from the back of the unit by unscrewing
the two Phillips head screws as shown below.
OR OPENED CONTAINERS OF GASOLINE.
at least 18 inches above to floor.
Use this equipment in locations with mechanical ventilation that
provides at leat four air changes per hour or locate the equipment
D
A
T
E
C
O
D
E
:
NEUTRONICS INC. MODEL No: UID
(610) 524-8800, www.NeutronicsInc.com
456 Creamery Way, Exton, PA, 19431 USA
WARNING-TO REDUCE THE RISK OF FIRE:
DO NOT USE THIS EQUIPMENT IN THE VICINITY OF SPILLED
LISTED 6P03
Design Pressure: 300 psig
Refrigerant Type: R-12, R-134a
R
Miscellaneous Refrigerant Equipment
12 VDC, 1A; Design Pressure: 300 psig
CFC-12 (R-12) or HFC-134a (R-134a)
(R-134a).
For Accuracy, see Manual.
detect 2% or greater of air in HFC-R134a
to 98% purity. Also this equipment will
to Meet SAE J1771 to identify
Refrigerant Diagnostic Tool Design
Certified by Intertek Testing Services (ITS)
SAE J1771 CERTIFICATION
Inside of the Ultima ID battery compartment, locate the male plug on the left side. Slide the nylon
strap around the battery. Insert the battery module into the compartment aligning the female
connector of the battery module with the male plug in the battery compartment. Replace the
cover and snug the screws.
Note: Charge the battery for a minimum of 4 hours with the supplied charger prior to first
use.

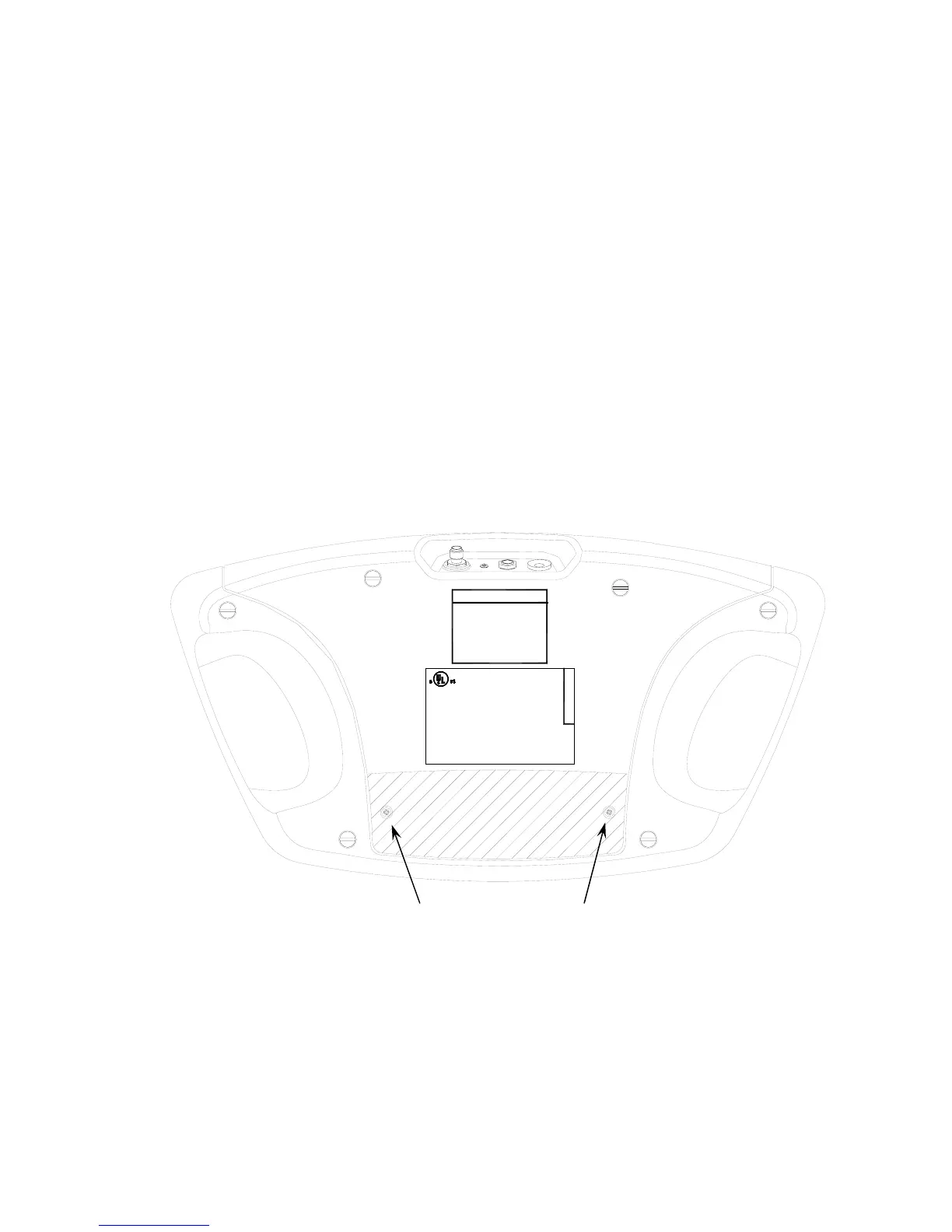

Battery Cover Screws
