Newport Electronics INFCP-B Series - 2.4 Front of the Meter

5
About The Meter
2

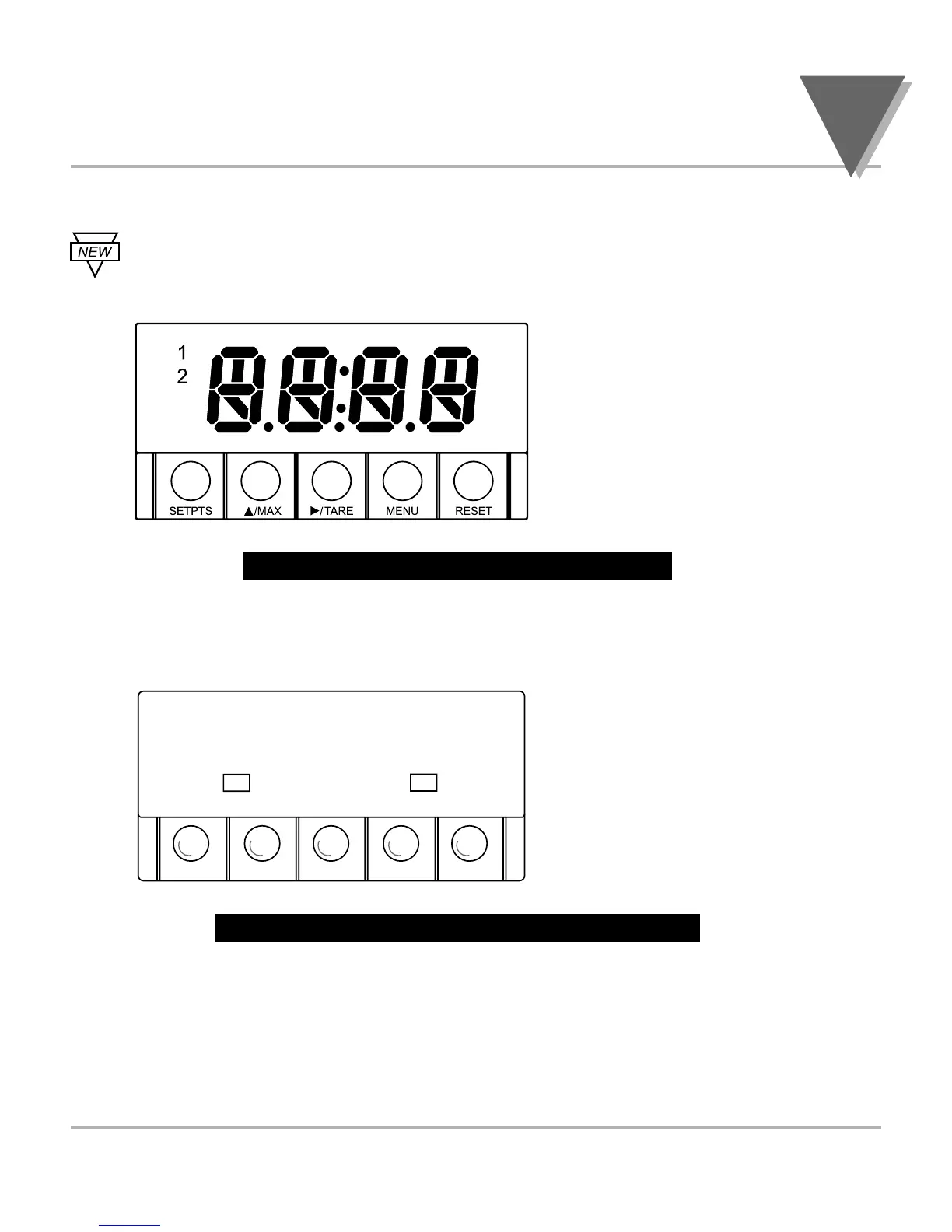

2.4 FRONT OF THE METER
Figure 2-1 shows each part of the front of the three-color programmable
“Big” LED display meter (Version B).
Figure 2-1. Front-Panel with Big Display
Figure 2-2 shows each part of the front of the standard LED display meter.
Figure 2-2. Front-Panel wtih Standard Display
These meter display windows (both versions) light when appropriate:
1- Setpoint 1 status
2 - Setpoint 2 status
5 Pushbuttons for programming the meter.
//

••••
12
RESETMENU
TAREMAXSETPTS
Digital LED Display:
-
1.9.9.9 or 9.9.9.9 4-digit
three color programmable,
21 mm (0.83") high LED
display with programmable
decimal point.
Digital LED Display:
-
1.9.9.9. or 9.9.9.9.
14 segment, 13.8 mm
(0.54") high LED display
with programmable
decimal point.
