8
Specifications
56
SECTION 8. SPECIFICATIONS (Continued)

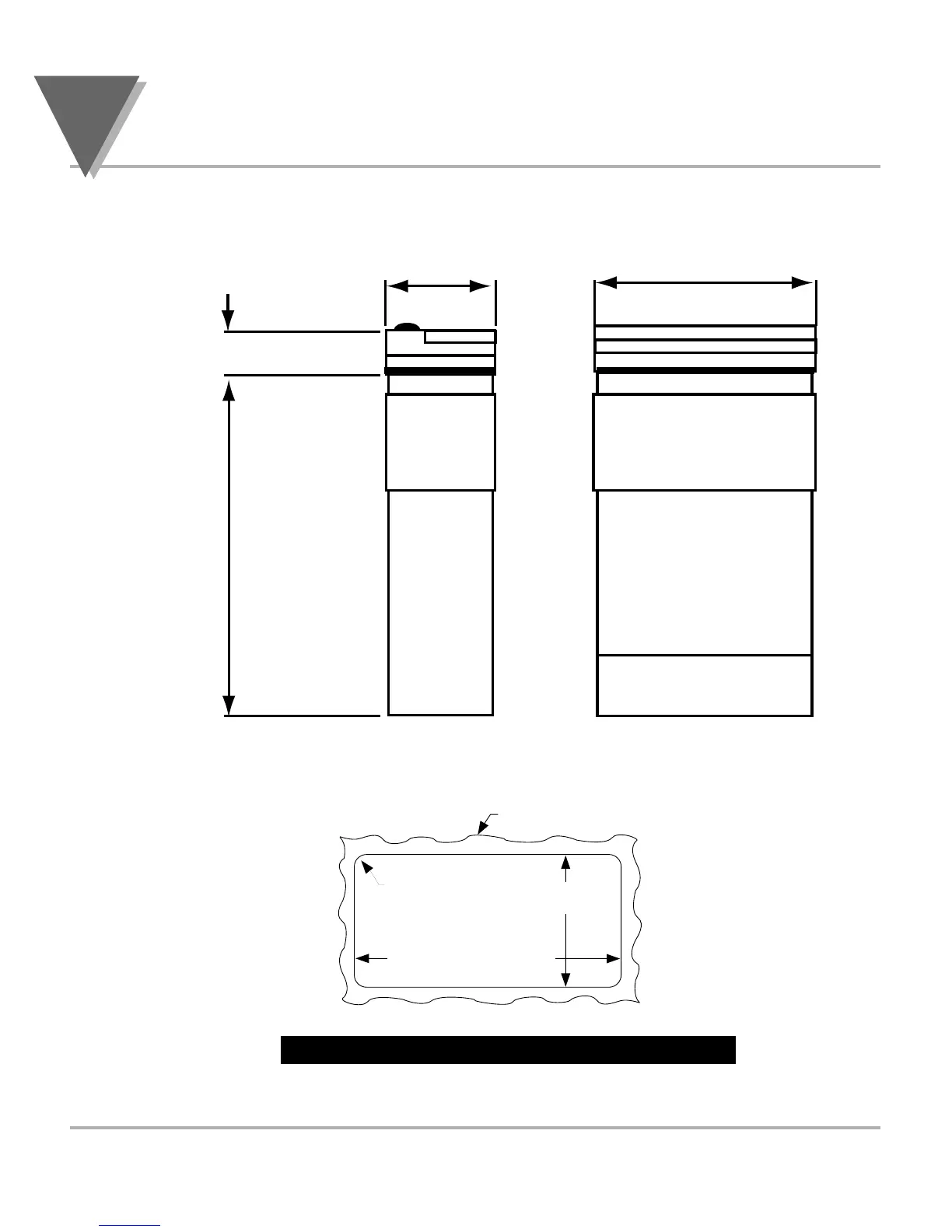

Figure 8-1 Meter Dimensions/ Panel Cutout
SIDE VIEW
TOP VIEW
CASE
REAR COVER
96,0 (3.78)48,0 (1.89)
20,3 (.80)
151,4 (5.96)
RETAINER
FRONT BEZEL
45,00 + 0,61/-0,00
(1.772 + .024/–.000)
92,00 + 0,81/–0,00
(3.622 + .032/–.000)
PANEL THICKNESS
1,5
R(.06)
4 PLCS
6,4 (.25) MAX
0,8 (.03) MIN
NOTE: Dimensions in Millimeters (Inches)
