Nexo NXAMP4X1 Service Manual

NXAMP4x1
11
e) Connect the wire (WK14210) of PA-UNIT (CH1, CH2) to the connector (CN312).
Fasten the wire (WK14210) and the wire (WK02090) with a cord holder at the position where the wire (WK14210) is vertically
pulled from PA-UNIT. Before fastening, pull the wire (WK02090) toward the front panel side in advance.
f) Twist the wires (white, red and black) of PA-UNIT more than two times, and connect them to the FASTON terminals according
to the wire color displayed on the PSANL circuit board.
Then bend these wires, and fasten them with a cord holder. (Fig. 20)

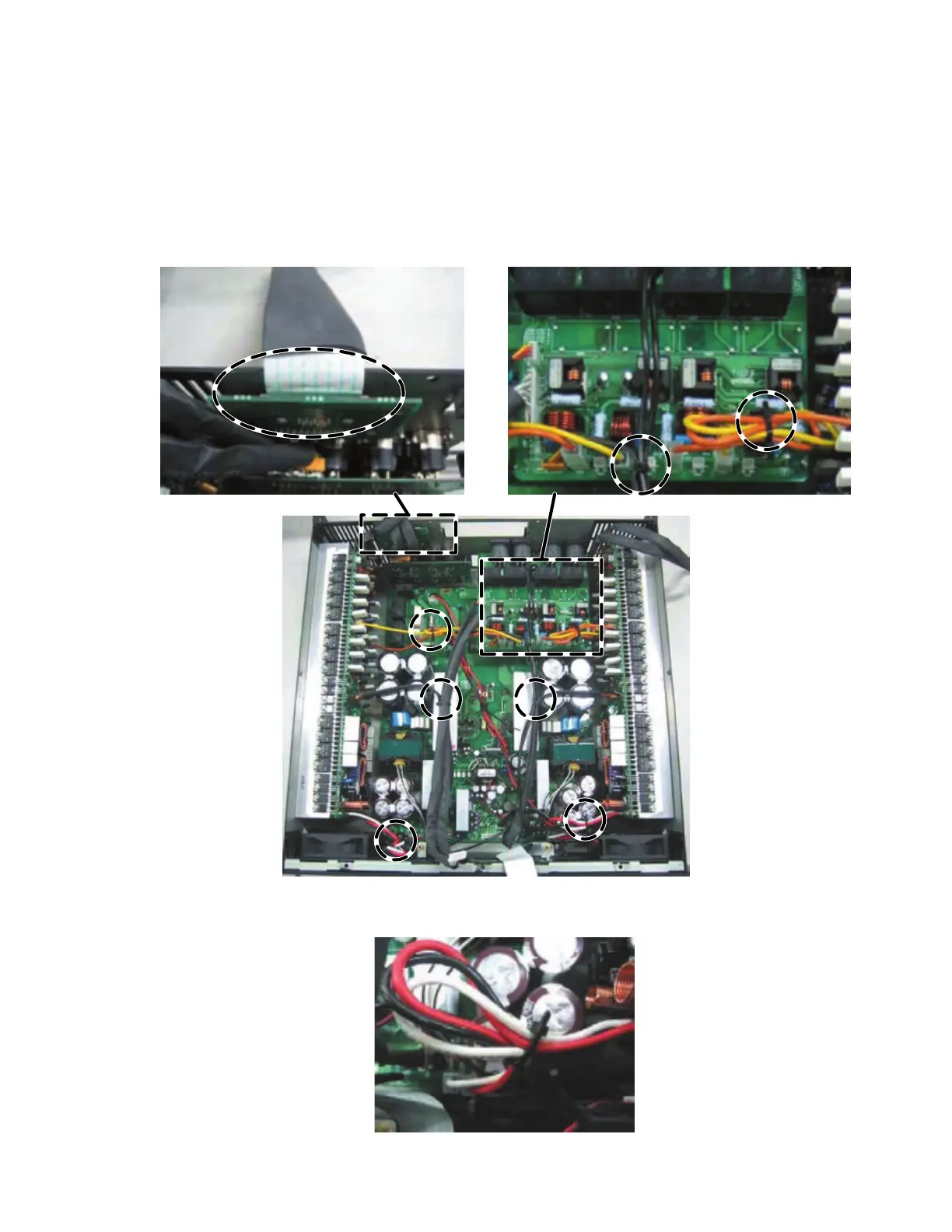

Fig. 19
a)
a)
c)
b)
c)
b)
e) d)
b)
e)
f)
f)
f)
g)
h)
f)
d)
b)
Fig. 20
