NXAMP4x1
16

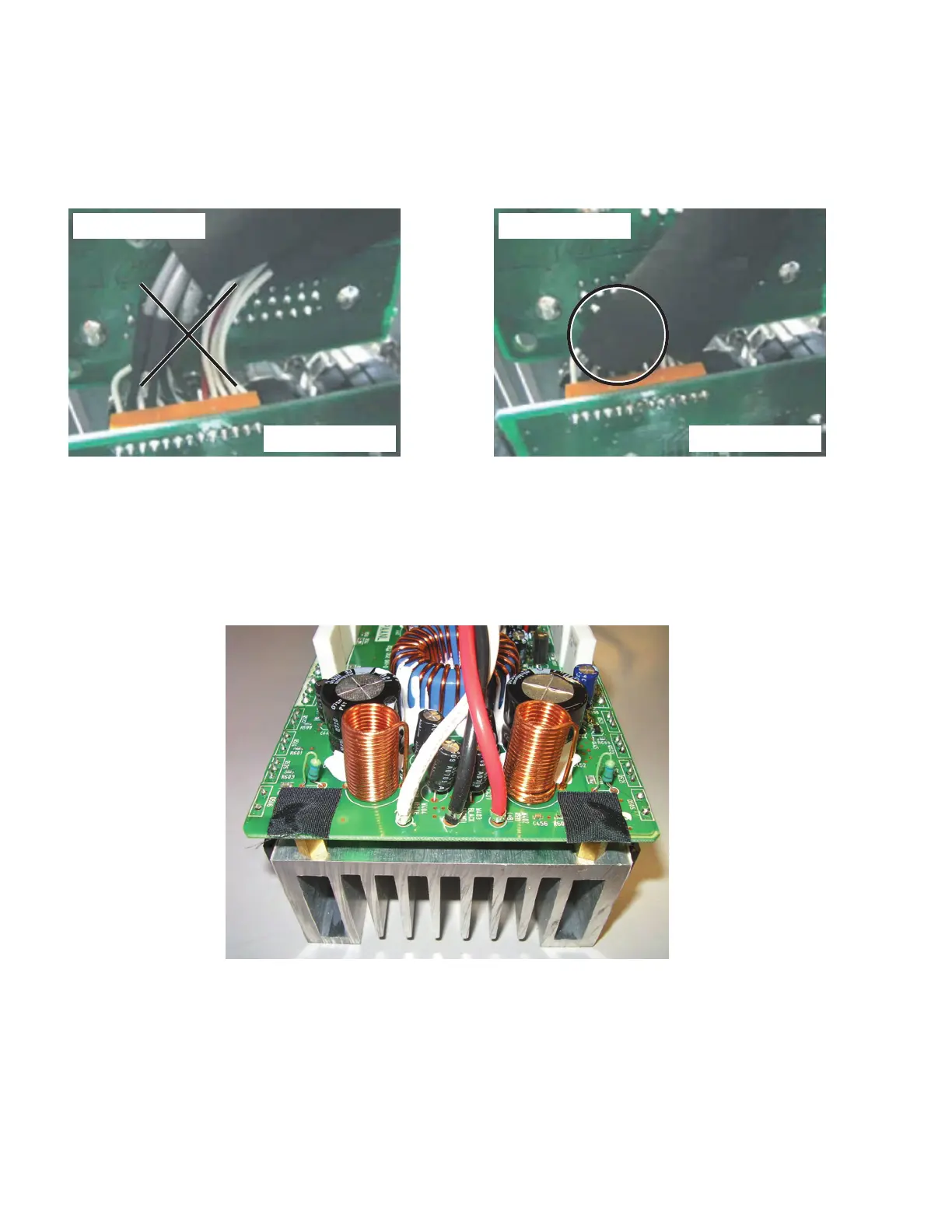

12. Prevention of touching WK02070 to connector terminal
Perform wiring the connector assembly WK02070 with care so that its uncovered portion with the SUMI tube does not touch
the bare terminal of the connector CN203 of the RS232-GPI circuit board. (Fig. 32)
Fig. 32
13. Adhesive cloth tape
Cover the two screws near R587 and R588 in each PA unit (190 and 230) with adhesive cloth tape (185 and 225) as shown in
the figure below. (Fig. 33)
Fig. 33
IOAN circuit board
GPI circuit board
IOAN circuit board
GPI circuit board
To Next Page
