Nexo NXAMP4X1 Service Manual

NXAMP4x1
15

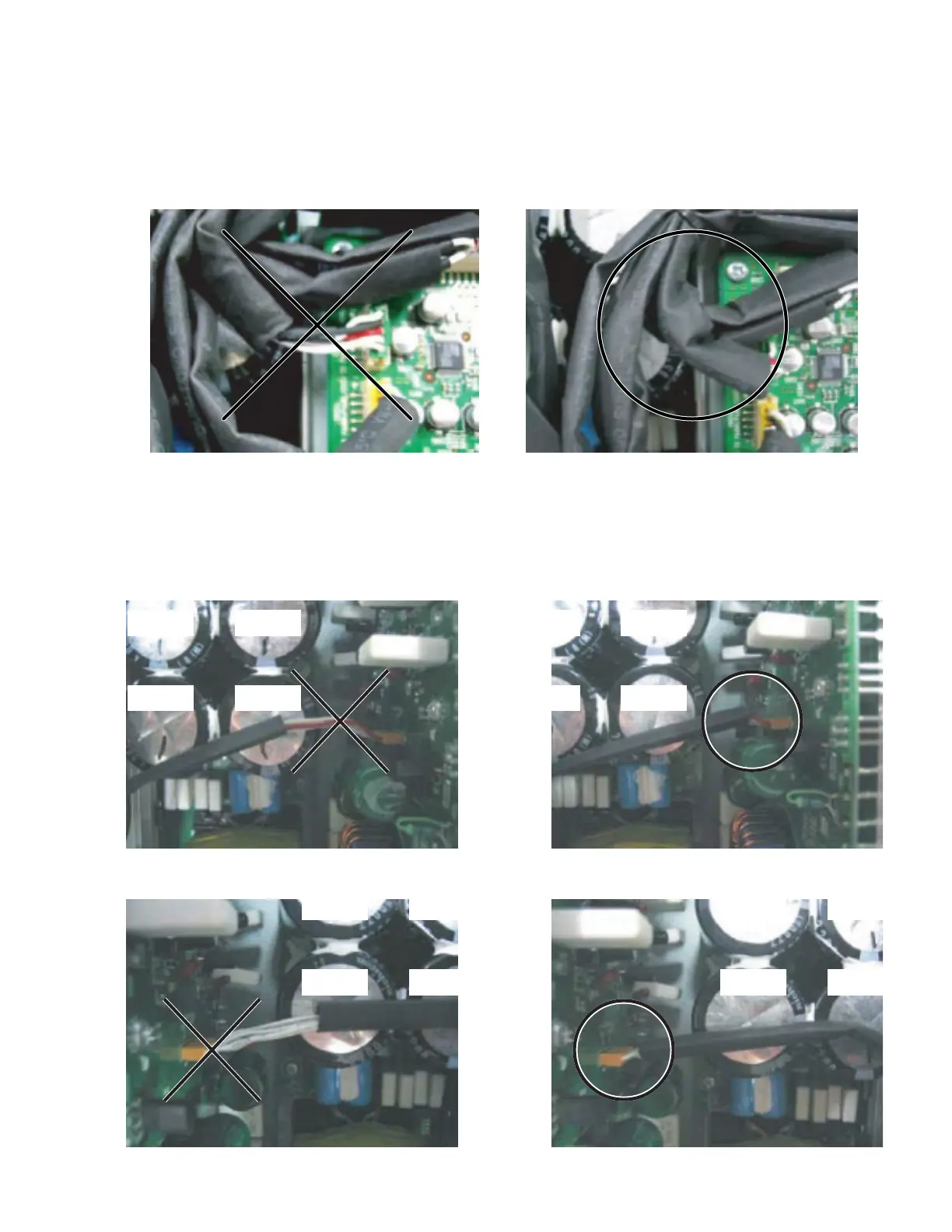

10. Insulation distance between WK17110 and primary side capacitor
Perform wiring the connector assembly WK17110 with care so that its uncovered portion with the SUMI tube does not touch
the capacitor C316 on primary side of the PSANL circuit board. (Fig. 28, 29)
Fig. 28 Fig. 29
11. Insulation distance between WK14210 and primary side capacitor
Perform wiring the connector assembly WK14210 with care so that its uncovered portion with the SUMI tube does not touch
the capacitors C317 and C319 on primary side of the PSANL circuit board. (Fig. 30, 31)
Fig. 30
Fig. 31
C324 C318
C325 C319
C324 C318
C325 C319
C323 C322
C317 C316
C323 C322
C317 C316
