NXAMP4x1
39
to CONTROL
CN016
to CONTROL
CN016
to PSANL
CN306
to PSANL
CN317
POWER OUTPUTS
Speakon D Speakon C Speakon B Speakon A
to PSANL
CN202
to PAANL (CH1)
W405 (
ORANGE
)
to PAANL (CH2)
W406 (
YELLOW
)
to PAANL (CH3)
W405 (
ORANGE
)
to PAANL (CH4)
W406 (
YELLOW
)

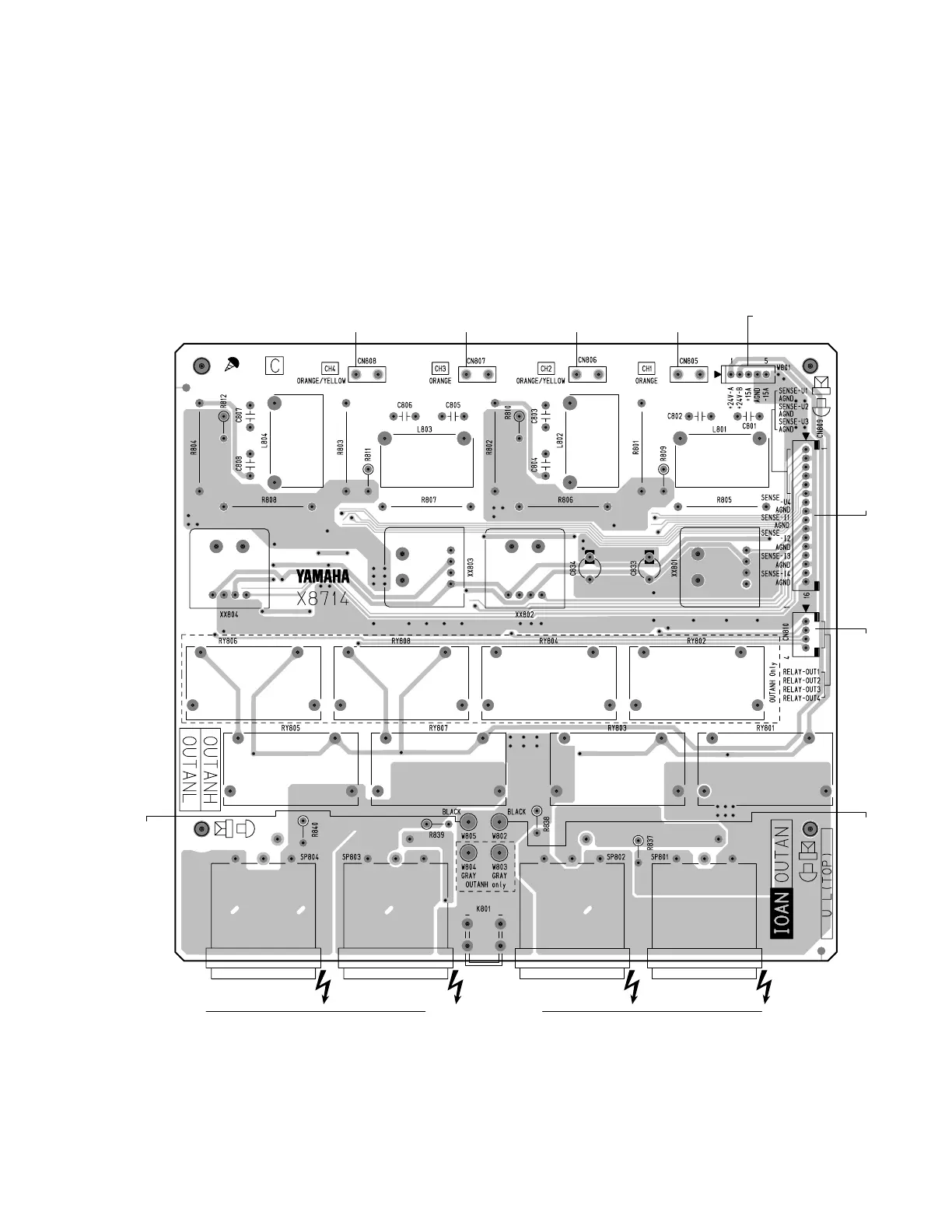

• OUTANL Circuit Board
2NA-WJ97320-10
Component side
