NXAMP4x1
46
A
A'
B
B'
to CONTROL
CN012, CN014
to OUTANL
CN805, CN807
to OUTANL
CN806, CN808
to CONTROL
CN013, CN015

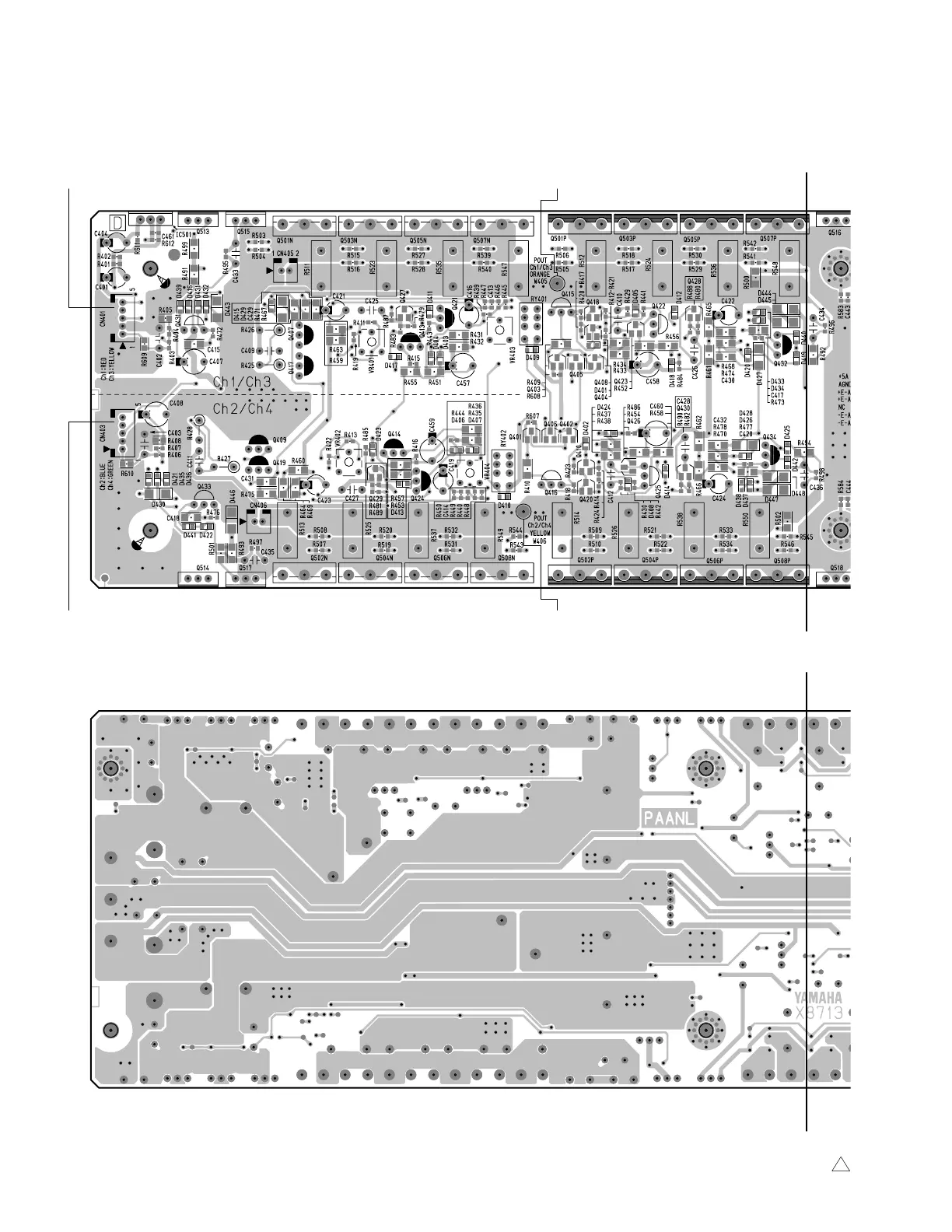

• PAANL Circuit Board
2NA-WJ97310-10
1
Component side
Pattern side
Reduction: 9/10
