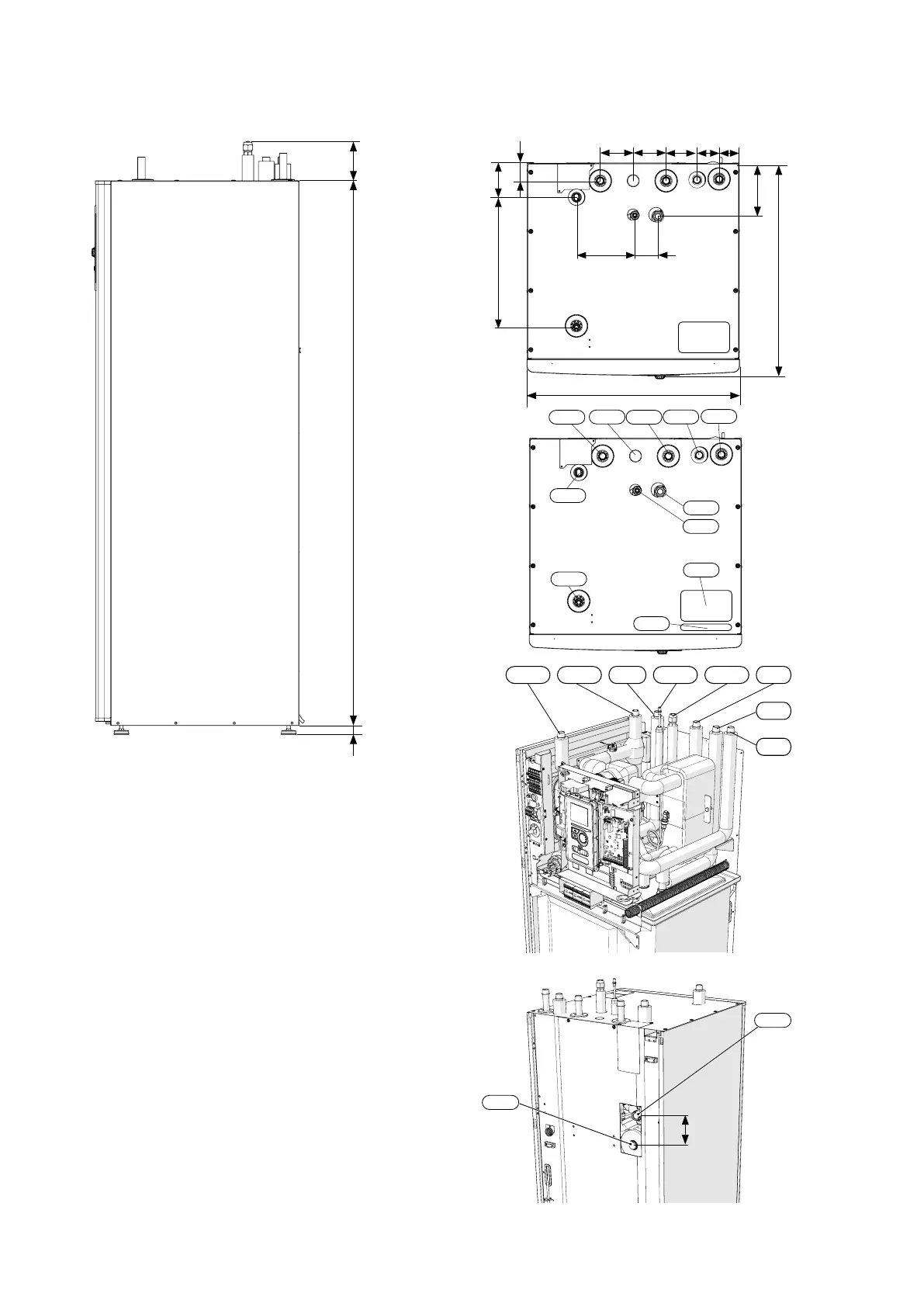

Dimensions and pipe connections
Pipe connections
XL1 Connection, heating medium supply Ø22 mm
XL2 Connection, heating medium return Ø22 mm
XL3 Connection, cold water Ø22 mm
XL4
Connection, hot water Ø22 mm
XL5 Conduit to hot water circulation connection
Ø15 mm
XL10 Connection, cooling operation Ø22 mm
XL11 Connection, safety assembly
Ø22 mm, pressure gauge
XL13 Liquid refrigerant
Connection 1/4”(BA-SVM 10-200/6)
Connection 3/8” (BA-SVM 10-200/12)
XL14 Gas refrigerant
Connection 1/2” (BA-SVM 10-200/6)
Connection 5/8” (BA-SVM 10-200/12)
XL 18 Connection, return to add. heat source
Ø22 mm
XL 19 Connection, supply from add. heat source
Ø22 mm
Other information
PF3 BA-SVM serial number plate
PF4
Software serial number plate
20-40
1590
115
XL11
XL10
XL4
XL5 XL3 XL2
XL1
XL14
XL13
PF3
PF4
600.5
610.5
300
156
93.5 92.5 87
63
55
65
155
44
152
XL18
XL19
103mm
XL11 XL10 XL4 XL13 XL14 XL3
XL2
XL1
Section 4 | Pipe connections
