Supplied components

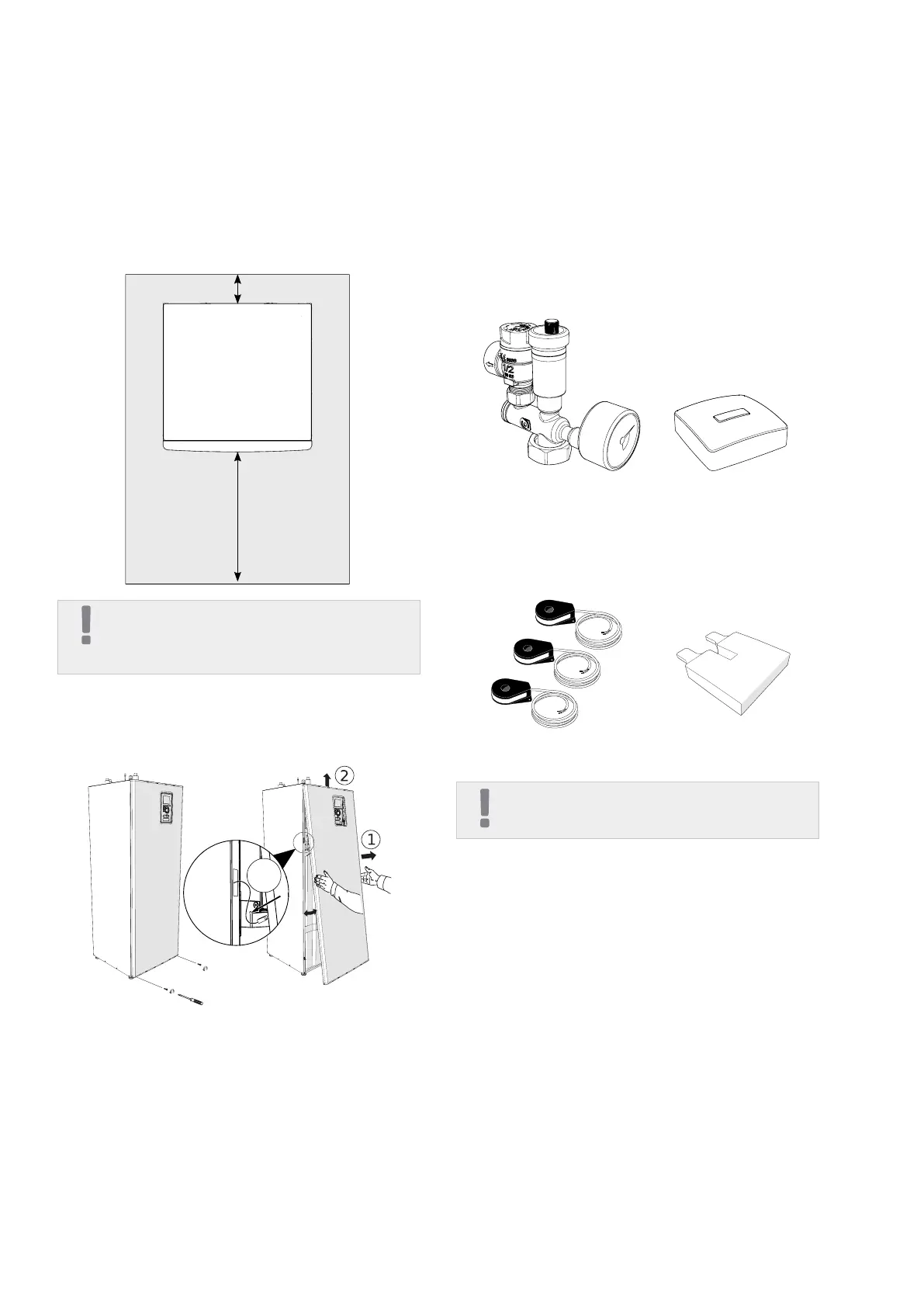

Leave a free space of 800 mm in front of the indoor
unit. All servicing of BA-SVM 10-200 can be carried
out from the front.
1. Remove the screws from the lower edge of the front
cover.
2. Tilt back the cover at the lower edge paying
special attention not to damage the connecting
cables, then remove the front cover by lifting it
upwards.
3. Disconnect the cable connecting the front cover
to the unit.
Installation location
CAUTION
If connecting an additional heat source, leave suffi cient
space behind the appliance for problem-free comple-
tion of the connections and future maintenance.
25-30 mm
800 mm
Removing the covers
3
Safety group with safe-
ty valve (3 bar), pressure
gauge and automatic air
vent (1 pc.)
Temperature sensor
Outdoor and indoor
(2 pcs)
Connection p.27
Current sensor (3 pcs) 230V connection
jumper (1 pc.)
CAUTION
The rated opening pressure of the safety valve is 3
bar.
Section 2 | Delivery and handling
• Safety group (1 pc.)
• Outdoor / indoor temperature sensor (2 pcs)
• Current sensor (3 pcs.)
• 230V connection jumper (1 pc.)
• Built-in energy meter (BA-SVM 10-200 E EM only)
• Instalation and user manual
