26
NIBE BA-S
VM 1
0-200

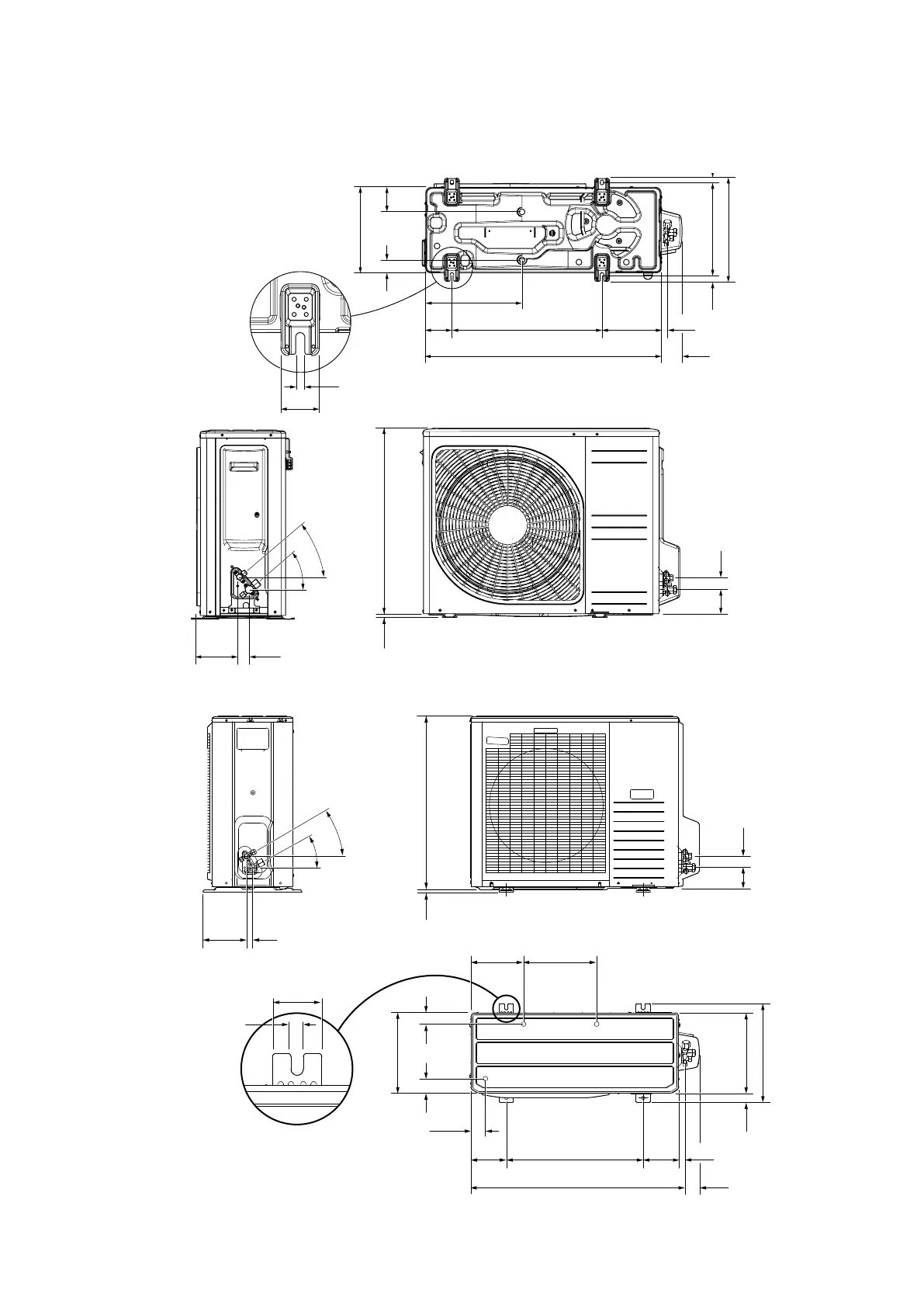

Dimensions
AMS 1
0-8
AMS 1
0-6
30º
30º
188
25
750
24
61
340
48
51
12
150
223
310
580
61
150
32
880
88
418
380
19
49
104
Nad
43
93
640
40º
40º
12
148
34
89
51
44
290
84
510
327
201
18
800
12
71
352
313
5
1
4
2
AMS 1
0 outdoor unit
Section 5 |
25
27
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information
4
Safety Information
4
2 Delivery and Handling
6
Available Models
6
Compatibility
6
Transport
6
Assembly
6
Installation
7
Removing the Covers
7
Supplied Components
7
3 Design of the Indoor Unit
8
Ba-Svm10-200
8
4 Pipe Connections
10
General Information
10
System Diagram
11
Dimensions and Pipe Connections
15
Other Information
15
Docking the Indoor Unit
16
Installation Alternative
20
Hot Water Circulation
22
5 Outdoor Unit
23
Delivery and Handling
23
Installation
23
Lift from the Street to the Set-Up Location
23
Lift from the Pallet to Final Positioning
24
Scrapping
24
Condensation Water Drain
24
Recommended Alternative for Leading off Condensation Water
24
Dimensions
26
Installation Location
28
Sound Power Levels
28
6 Electrical Connections
29
General Information
29
Connections
30
Settings
32
7 Commissioning and Adjusting
33
Preparations
33
Filling and Venting
33
Circulation Pump
34
Commissioning
34
Start Guide
34
8 Control - Introduction
36
Display
36
Menu System
37
9 Control
40
Menu 1 - INDOOR CLIMATE
40
Menu 2 - HOT WATER
41
Menu 3 - INFO
41
Menu 4 - MY SYSTEM
42
Menu 5 - SERVICE
43
Start Guide
44
User Settings
46
Service Submenus
55
Cooling Operation Settings
61
10 Service
62
Service Operations
62
11 Disturbances in Comfort
66
Troubleshooting
66
Additional Heat Only
67
12 Accessories
68
Available Accessories
68
Connecting the KVR Accessory
69
13 Technical Data
70
Dimensions and Pipe Connections
70
Technical Data
71
Performance
71
Energy Efficiency Label
73
Energy Efficiency Specifications of the Package
73
Energy Label
74
Electrical Wiring Diagrams
77
