28 NIBE BA-SVM 10-200
150 mm
300 mm
300 mm
Minimum free
space
Minimum distance during use
of several AMS10
30 cm
Free space behind
15 cm
30 cm
However, the free space in front must be 100 cm for future
servicing
Installation location
Sound power levels

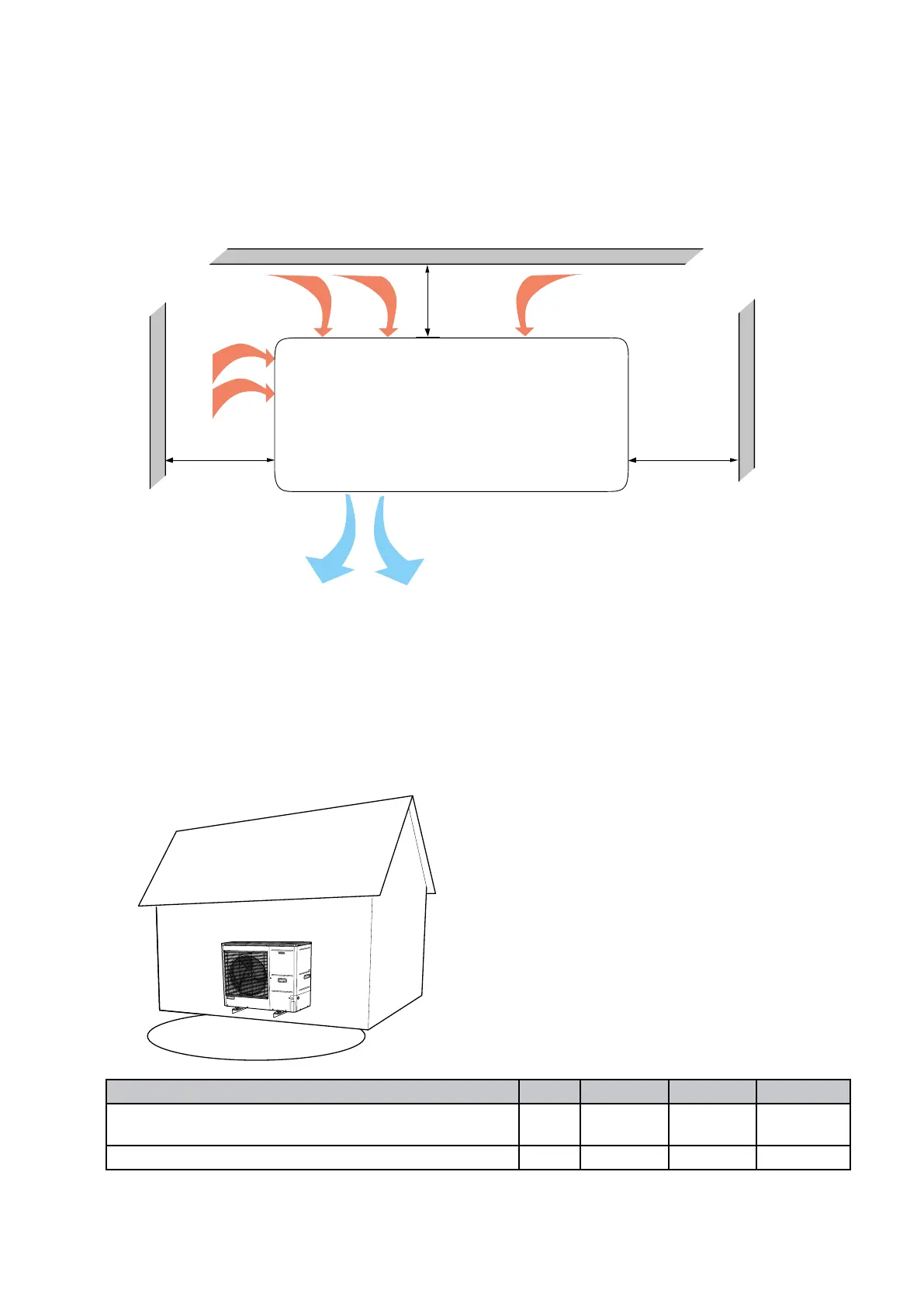

The recommended distance between AMS 10 and
the building wall should be at least 15 cm. Free space
above AMS 10 should be at least 100 cm. However,
the free space from the front must be 100 cm for
future servicing.
Please bear in mind that the AMS 10 unit is normal-
ly placed against a building wall, which causes direct
sound propagation. Therefore, always try to find a lo-
cation that is out of the way, in an area that will cause
Minimum free
space
Free space from the
back
However, the free space from the front must be 100 cm for
future servicing.
Minimum space
the least disturbance for neighbours. The sound level
may be affected by walls, bricks, differences in ground
level, etc., therefore the values given should only be
considered as suggested levels.
In order to reduce the noise level, avoid direct air out-
let to places that are particularly sensitive to excessive
sound levels. An action that can be taken is, for ex-
ample, creating acoustic boards so that the noise is
less inconvenient. Sound propagation is affected by
phenomena such as: source directivity, absorption by
the atmosphere, influence of the ground, surface re-
flection, shielding by obstacles.
2 m
K
EL
Noise AMS 10-6 AMS 10-8 AMS 10-12
Sound power levels, according to EN12102 at 7/35°C (rated
value)*
L
W
(A) 51 55 58
Sound power level at a distance of 2m (rated value)* dB(A) 32 41 44
*Free space
AMS 10 outdoor unit
