CAUTION
The heat pump should have cooling insulation and are
working in an intermittent mode.
P
P
-BT25
When connecting to a system with thermostatic
valves on all radiators/underfloor heating pipes, use
the appropriate hydraulic solutions which ensure the
proper heating medium volume and minimum, undis-
turbed flow. See the subsection “Buffer vessel”.

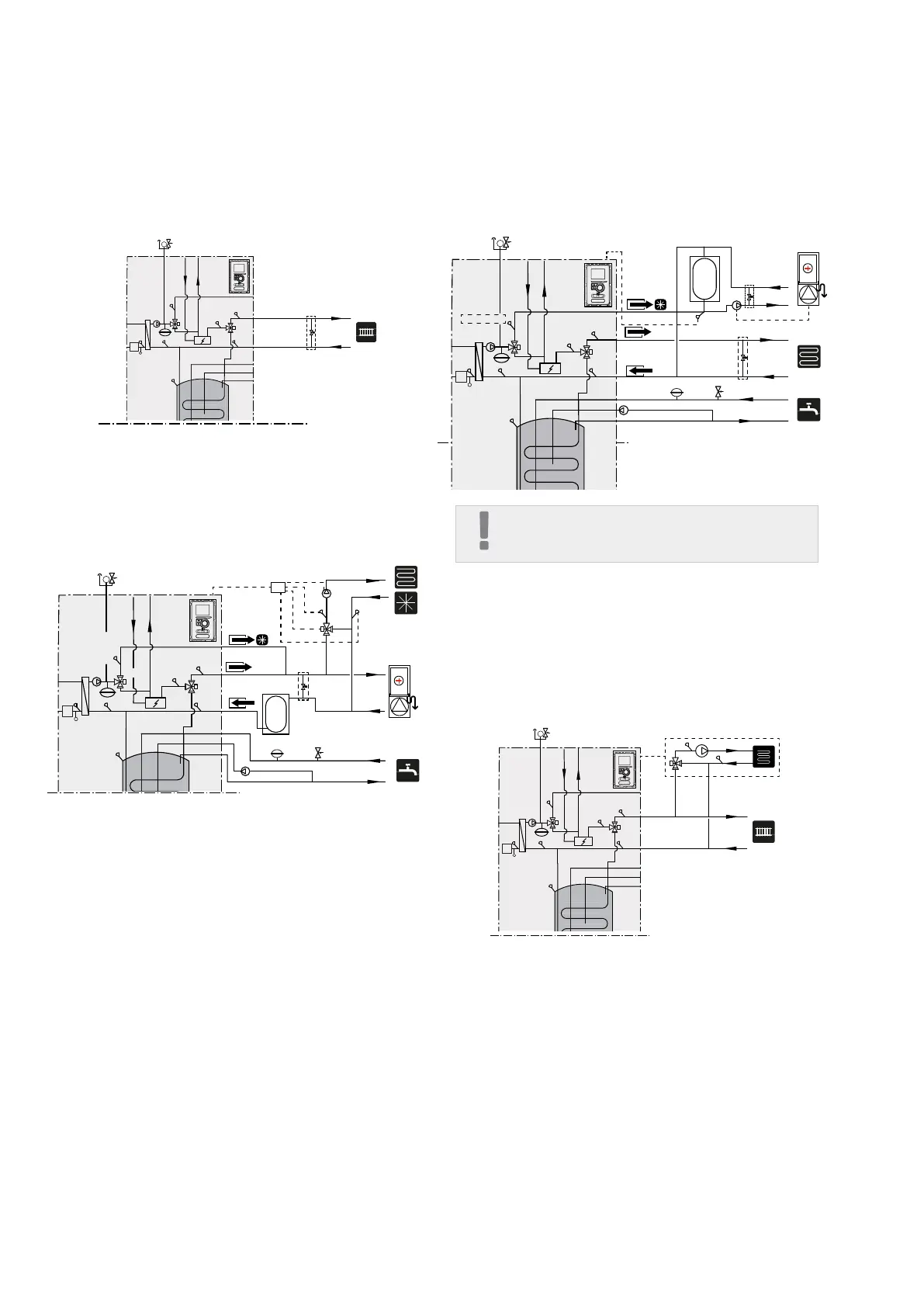

Docking the climate system
The system can be expanded to include additional heat-
ing/cooling circuits, provided an additional accessory
board is used. Once the AXC 30 card or ready-to-use
ECS 41 kit has been put into use, an additional heating/
cooling circuit can be activated using the controller.
Connecting the 2-pipe cooling operation system
Connecting the 4-pipe cooling operation system
In the 2-pipe cooling operation system, the sensor
BT64 / EQ-BT25 assumes the function of sensor
BT25. Degree minutes are counted according to EQ-
BT25.
The 4-pipe system requires an additional cooling buff-
er vessel. Sensor BT64 must be transferred to the
buffer vessel. Degree minutes for heating are count-
ed according to BT25. Degree minutes for cooling
operation are counted according to BT 64.
Docking an additional climate system
P
P
-BT25
Additional accessories and the connection options and
methods for these are described in the instructions for
AXC 30 and ECS 41.
P
P
EQ-BT25/
BT64
-BT63
-BT25
-BT64
P
P
EQ-BT25/BT64
-BT25
Section 4 | Pipe connections
