Accessibility, electrical connection
The plastic cap of the electrical boxes is opened using a
screwdriver.
NOTE
The cover for the terminal block for soft inputs
is opened without a tool.

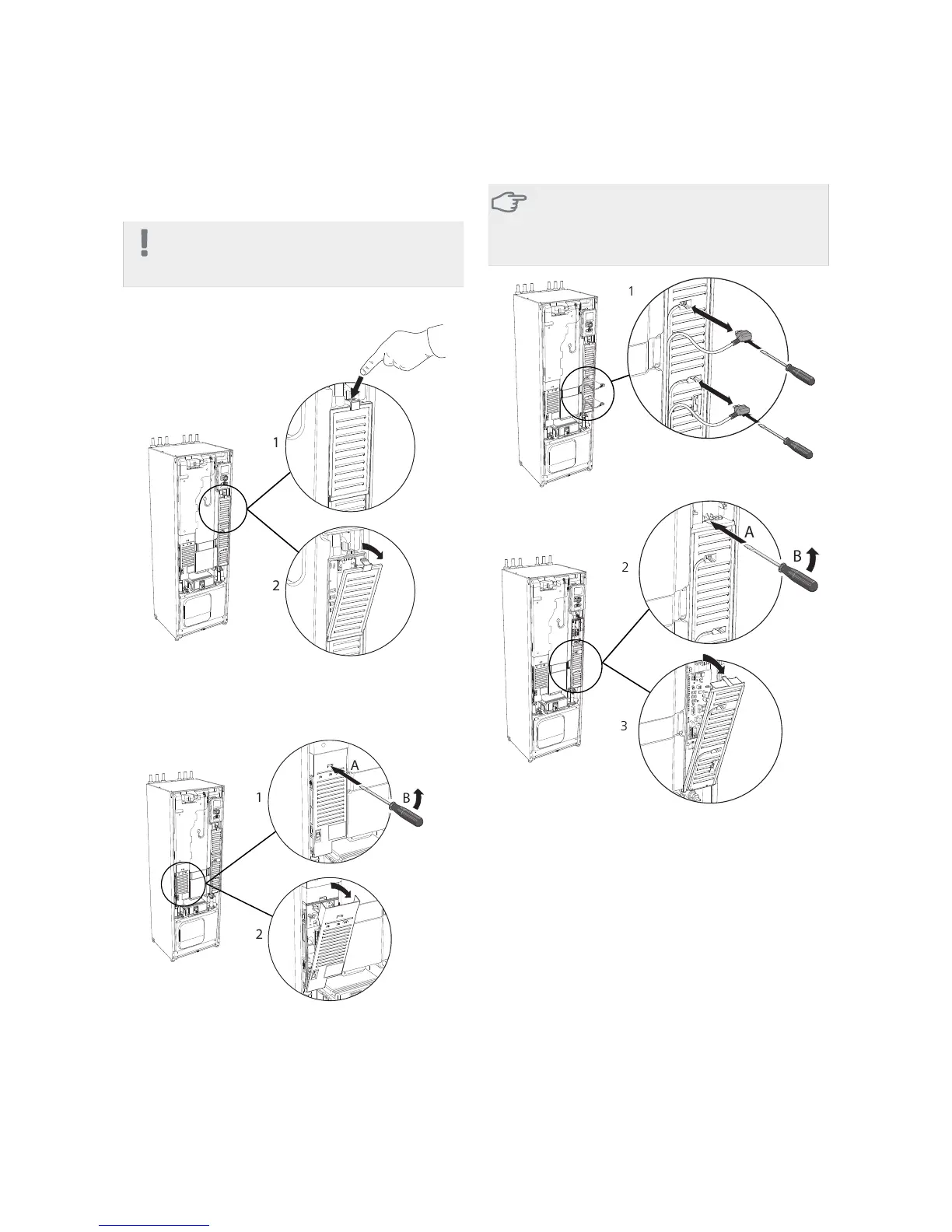

Removing the cover, terminal block
LEK
1
2
1.
Push the catch down.
2.
Angle out the cover and remove it.
Removing the cover, immersion heater circuit board
LEK
1
2
A
B
1.
Insert the screwdriver (A) and pry the catch carefully
downwards (B).
2.
Angle out the cover and remove it.
Removing the cover, base board
Caution
To remove the cover for the base board, the
cover for the terminal block for soft inputs must
first be removed.
LEK
1
LEK
1
A
B
2
2
3
1.
Disconnect the switches using a screwdriver.
2.
Insert the screwdriver (A) and pry the catch carefully
downwards (B).
3.
Angle out the cover and remove it.
19Chapter 5 | Electrical connectionsNIBE F1226

Nibe F1226 series Specifications

General

Type	Ground Source Heat Pump
Refrigerant	R407C
Dimensions (HxWxD)	1800 x 600 x 620 mm
Max Flow Temperature	58°C
Integrated Hot Water Tank	Yes
Control System	Nibe SMO 20
Power Supply	400V 50Hz
