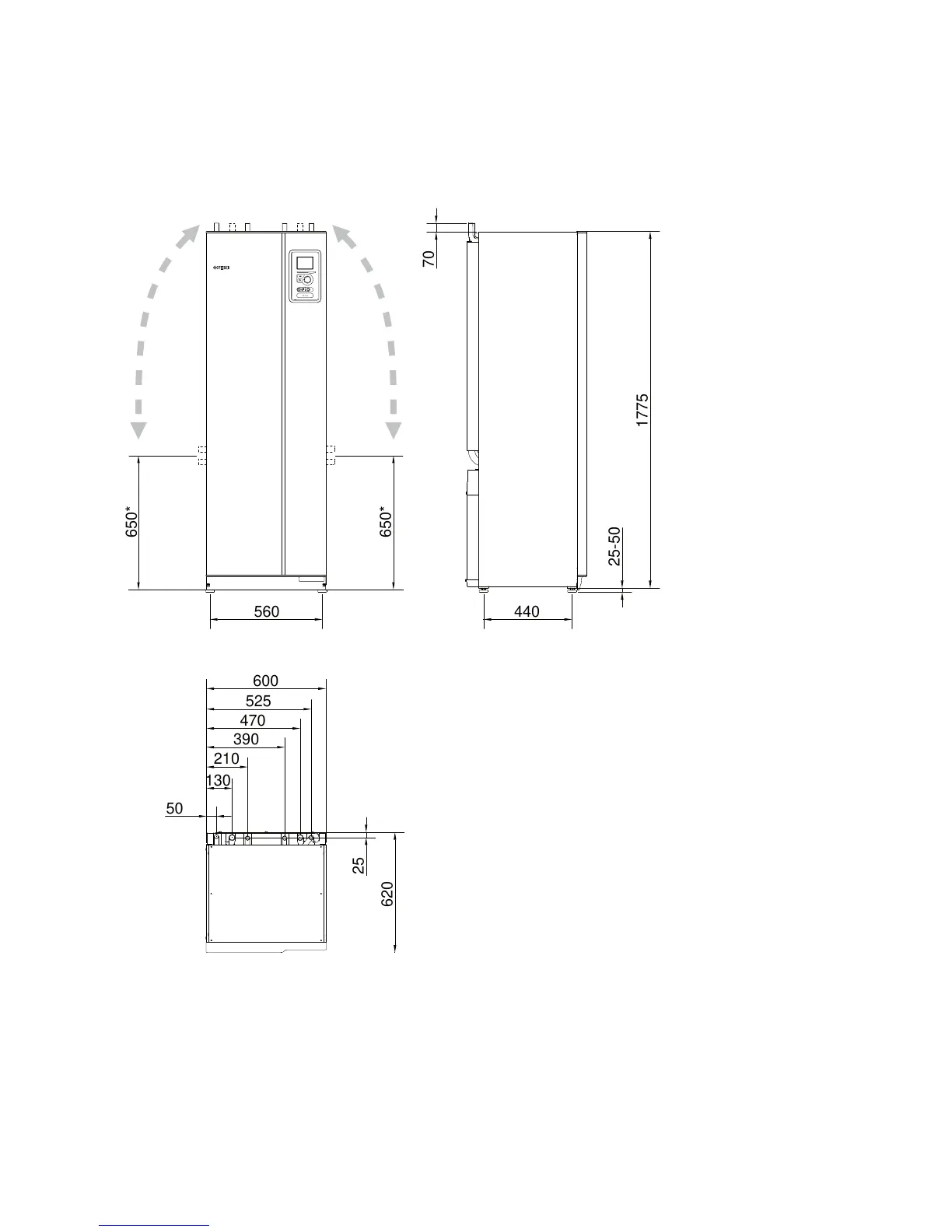

Dimensions and setting-out coordinates
620
600
560 440
70
1775
650*
25-50
25
50
130
210
390
470
525
650*
* This dimension applies at 90° angle on the brine pipes (side connection). The dimension can vary approx. ±100 mm in height as the
brine pipes partially consist of flexible pipes.
NIBE F1226Chapter 12 | Technical data48
12 Technical data

Nibe F1226 series Specifications

General

Type	Ground Source Heat Pump
Refrigerant	R407C
Dimensions (HxWxD)	1800 x 600 x 620 mm
Max Flow Temperature	58°C
Integrated Hot Water Tank	Yes
Control System	Nibe SMO 20
Power Supply	400V 50Hz
