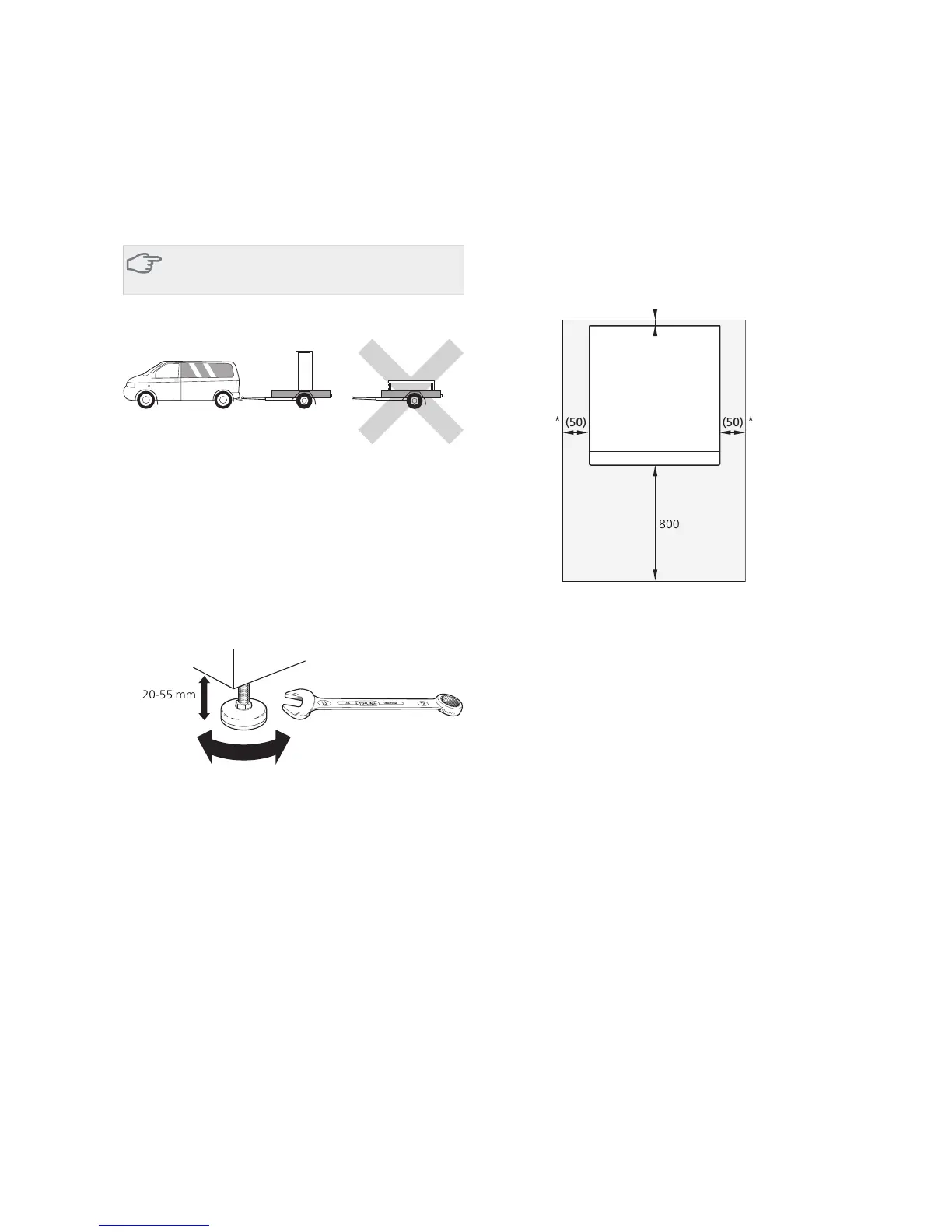

Transport
F1226 should be transported and stored vertically in a
dry place. When being moved into a building, F1226
may be leant back 45 °.
Caution
The product can be tail heavy.
Remove the outer panels in order to protect them when
moving in confined spaces inside buildings.
Extracting the cooling module
To simplify transport and service, the heat pump can be
separated by pulling the cooling module out from the
cabinet.
See page 40 for instructions about the separation.
Assembly
■
Position F1226 on a fixed foundation that can take the
weight of the heat pump. Use the product's adjustable
feet to obtain a horizontal and stable set-up.
■
Because water comes from F1226, the area where the
heating pump is located must be equipped with floor
drainage.
■
Install with its back to an outside wall, ideally in a room
where noise does not matter, in order to eliminate
noise problems. If this is not possible, avoid placing it
against a wall behind a bedroom or other room where
noise may be a problem.
■
Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
■
Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.
Installation area
Leave a free space of 800 mm in front of the product.
Approx. 50 mm free space is required on each side, to
remove the side panels (see image). The panels do not
need to be removed during service. All service on F1226
can be carried out from the front. Leave space between
the heat pump and the wall behind (and any routing of
supply cables and pipes) to reduce the risk of any vibra-
tion being propagated.
* A normal installation needs 300 – 400 mm (any side) for connec-
tion equipment, i.e. level vessel, valves and electrical equipment.
NIBE F1226Chapter 2 | Delivery and handling6
2 Delivery and handling
