Nibe F1226 series User Manual

Removing parts of the
insulation

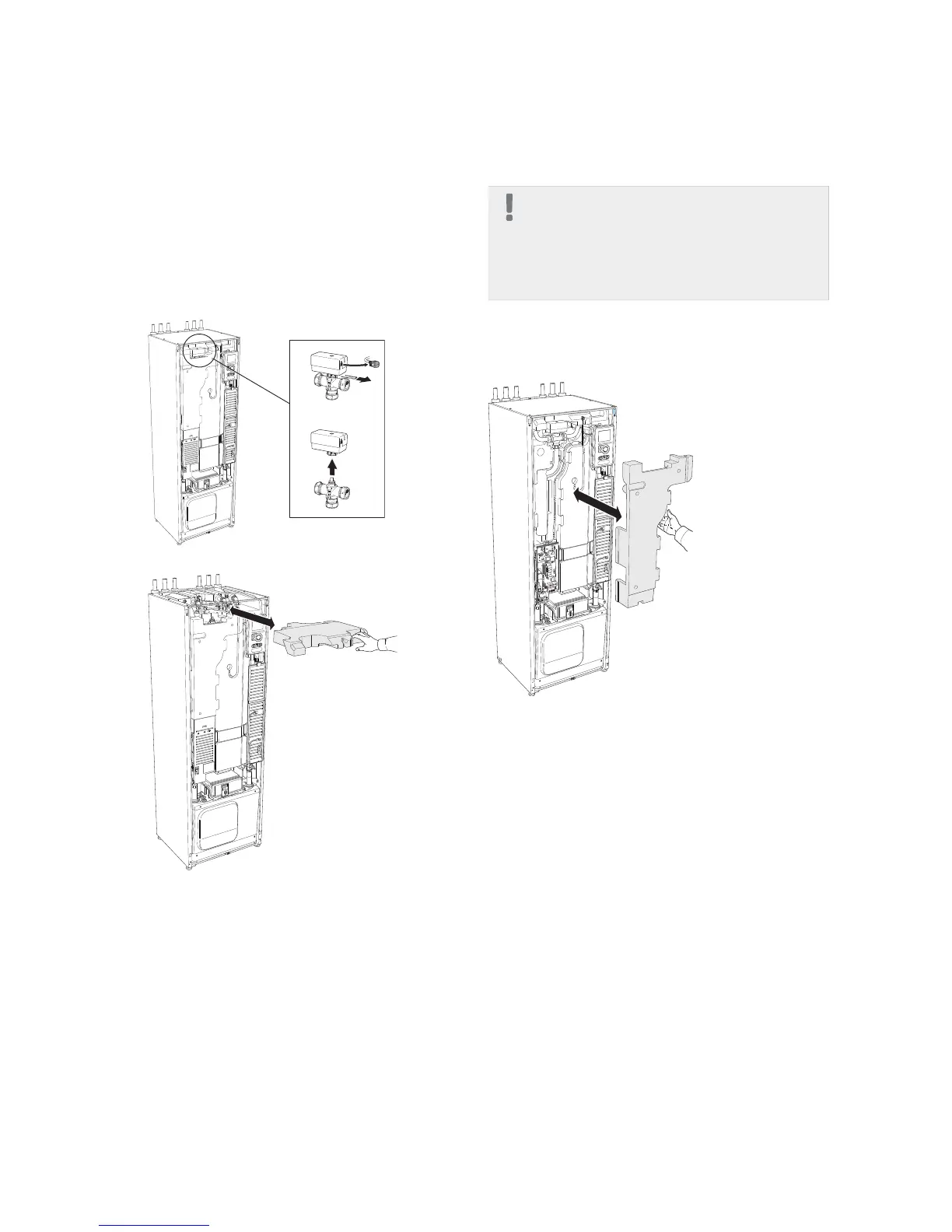

Parts of the insulation can be removed to facilitate the
installation.
Insulation, top
1.
Disconnect the cable from the motor and remove
the motor from the shuttle valve as illustrated.
LEK
LEK
A
B
L
EK
2.
Grip the handle and pull straight out as illustrated.
L
EK
Insulation, immersion heater
NOTE
Electrical installation and service must be carried
out under the supervision of a qualified electri-
cian. Electrical installation and wiring must be
carried out in accordance with the stipulations
in force.
1.
Remove the cover for the junction box according to
the description on page 19.
2.
Grip the handle and pull the insulation carefully to-
wards you as illustrated.
L
EK
NIBE F1226Chapter 2 | Delivery and handling8

Nibe F1226 series Specifications

General

Type	Ground Source Heat Pump
Refrigerant	R407C
Dimensions (HxWxD)	1800 x 600 x 620 mm
Max Flow Temperature	58°C
Integrated Hot Water Tank	Yes
Control System	Nibe SMO 20
Power Supply	400V 50Hz
