Cable routing
The following images show recommended cable routing
from the electrical connection to the condensation pipe.
Route the heating cable (EB14) through the gland on
the underside and secure with two cable ties at the
electrical connection. The transition between the elec-
trical cable and the heating cable must occur after the
gland to the condensation pipe.

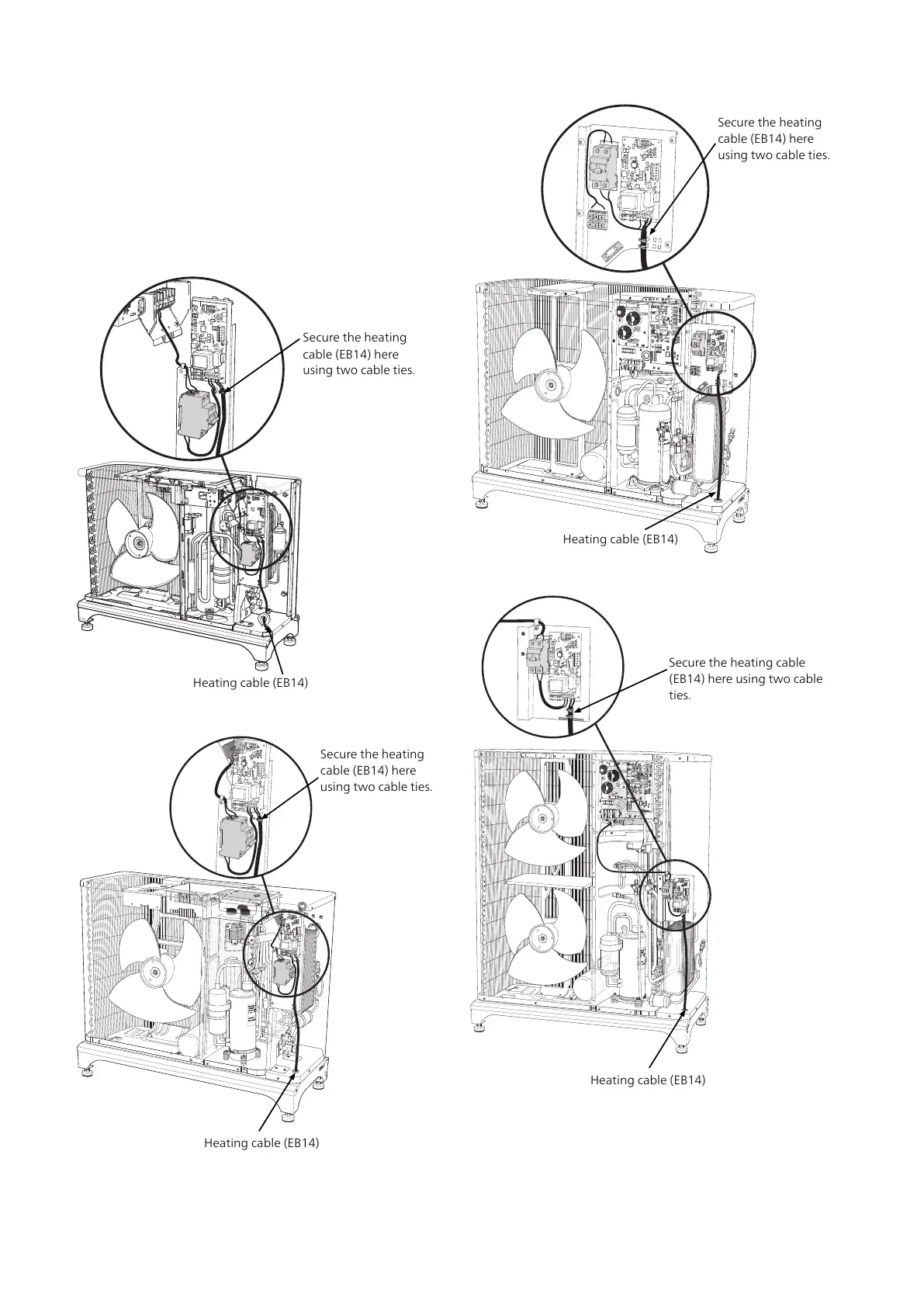

F2040-6
U
N
Heating cable (EB14)
Secure the heating
cable (EB14) here
using two cable ties.
F2040-8
LEK
Heating cable (EB14)
Secure the heating
cable (EB14) here
using two cable ties.
F2040-12
LEK
Heating cable (EB14)
Secure the heating
cable (EB14) here
using two cable ties.
F2040-16
LEK
Heating cable (EB14)
Secure the heating cable
(EB14) here using two cable
ties.
AMBIENT TEMPERATURE SENSOR
An ambient temperature sensor BT28 (Tho-A) is located
on the rear of F2040.
NIBE F2040Chapter |38
