Nibe F2040 Series User Manual

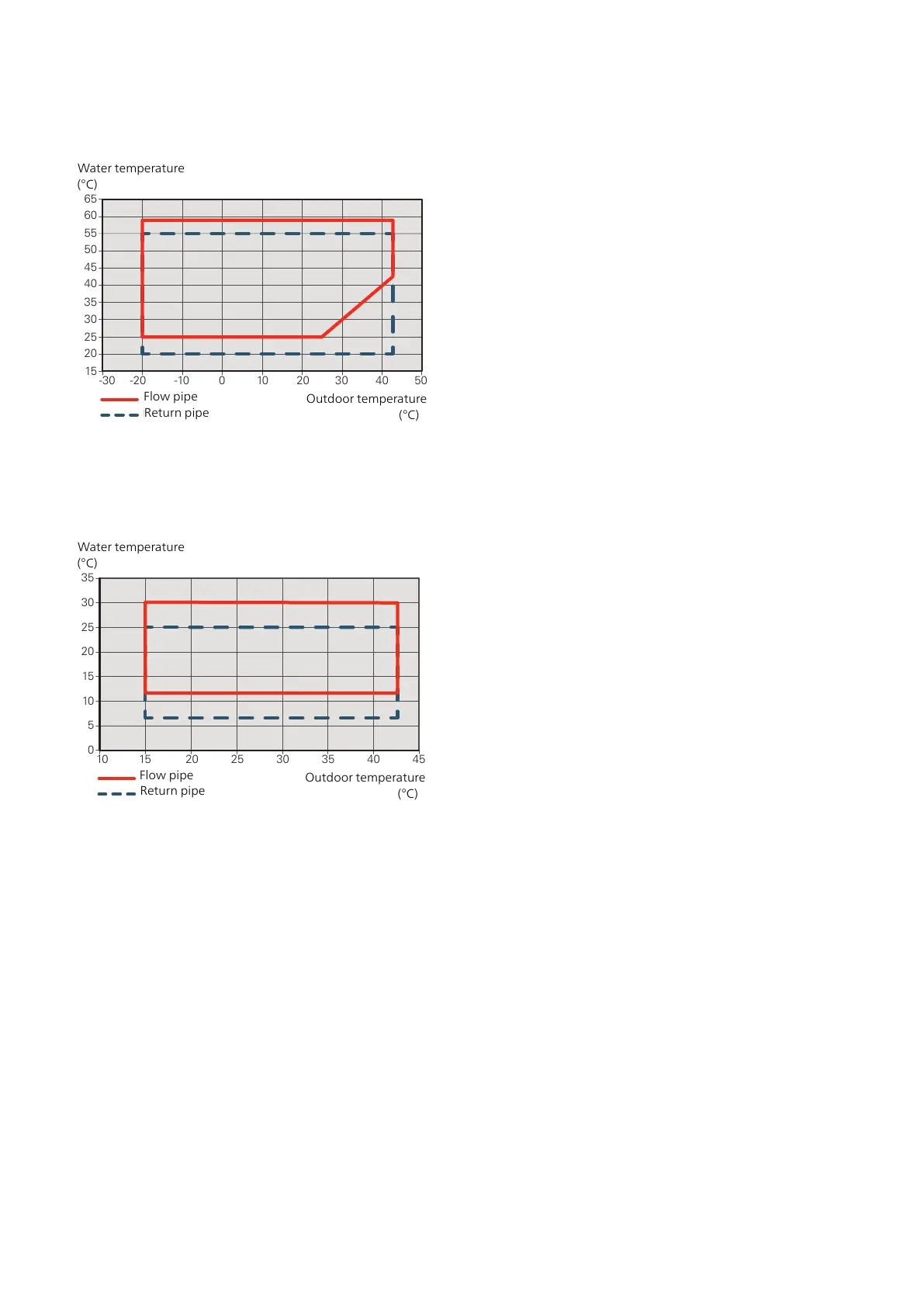

Working area
Compressor operation – heating
15
-30 -20 -10 0 10 20 30 40 50
35
40
45
50
55
60
65
Vattentemperatur
(°C)
Vattentemperatur
(°C)
Framledning
Returledning
30
25
20
0
10 15 20 25 30 35 40 45
5
10
15
20
25
30
35
Utomhustemperatur
(°C)
Utomhustemperatur
(°C)
Framledning
Returledning
Flow pipe
Return pipe
Water temperature
(°C)
Outdoor temperature
(°C)
During shorter time it is allowed to have lower working
temperatures on the water side, e.g. during start up.
Compressor operation – cooling
15
-30 -20 -10 0 10 20 30 40 50
35
40
45
50
55
60
65
Vattentemperatur
(°C)
Vattentemperatur
(°C)
Framledning
Returledning
30
25
20
0
10 15 20 25 30 35 40 45
5
10
15
20
25
30
35
Utomhustemperatur
(°C)
Utomhustemperatur
(°C)
Framledning
Returledning
Water temperature
(°C)
Outdoor temperature
(°C)
Flow pipe
Return pipe
67Chapter 12 | Technical dataNIBE F2040

Nibe F2040 Series Specifications

General

Series	F2040
Refrigerant	R410A
COP	Up to 5.0 (depending on model and operating conditions)
Sound Power Level Indoor Unit	N/A (Requires separate indoor unit)
Operating Temperature Range Cooling	+10°C to +43°C
Dimensions Indoor Unit (HxWxD)	N/A (Requires separate indoor unit)
Type	Air Source Heat Pump
