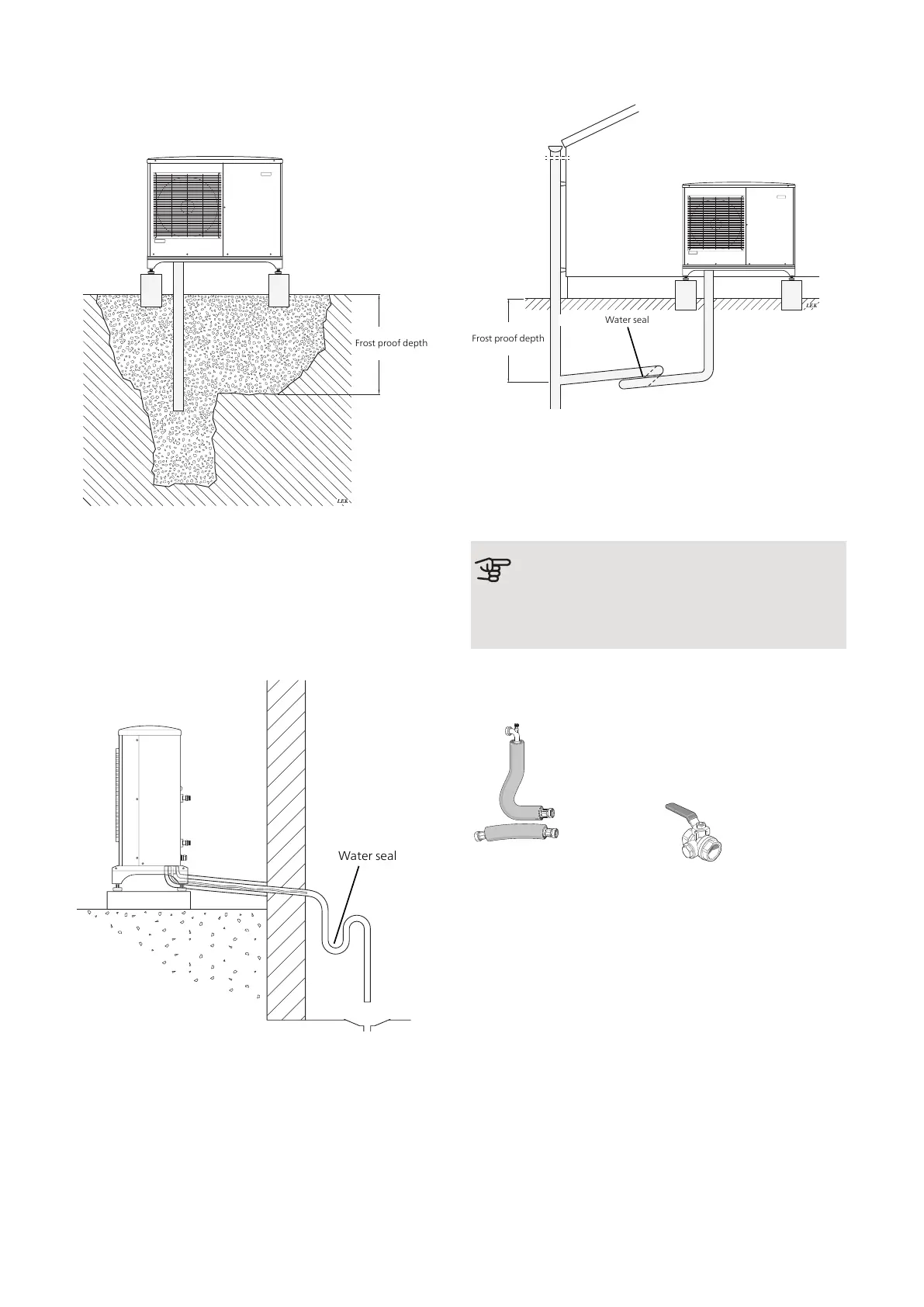

Recommended alternative for leading off
condensation water
Stone caisson
If the house has a cellar the stone caisson must be po-
sitioned so that condensation water does not affect the
house. Otherwise the stone caisson can be positioned
directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
Drain indoors
The condensation water is lead to an indoor drain (sub-
ject to local rules and regulations).
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
KVR 10 spliced as illustrated. Pipe routing inside house
not included.
Gutter drainage
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
Caution
If none of the recommended alternatives is
used good lead off of condensation water must
be assured.
Supplied components
Filterball (G1").
2 x flexible pipes (DN25, G1")
with 4 x gaskets.
11Chapter 2 | Delivery and handlingNIBE F2040
