Nibe F470 Installer Manual

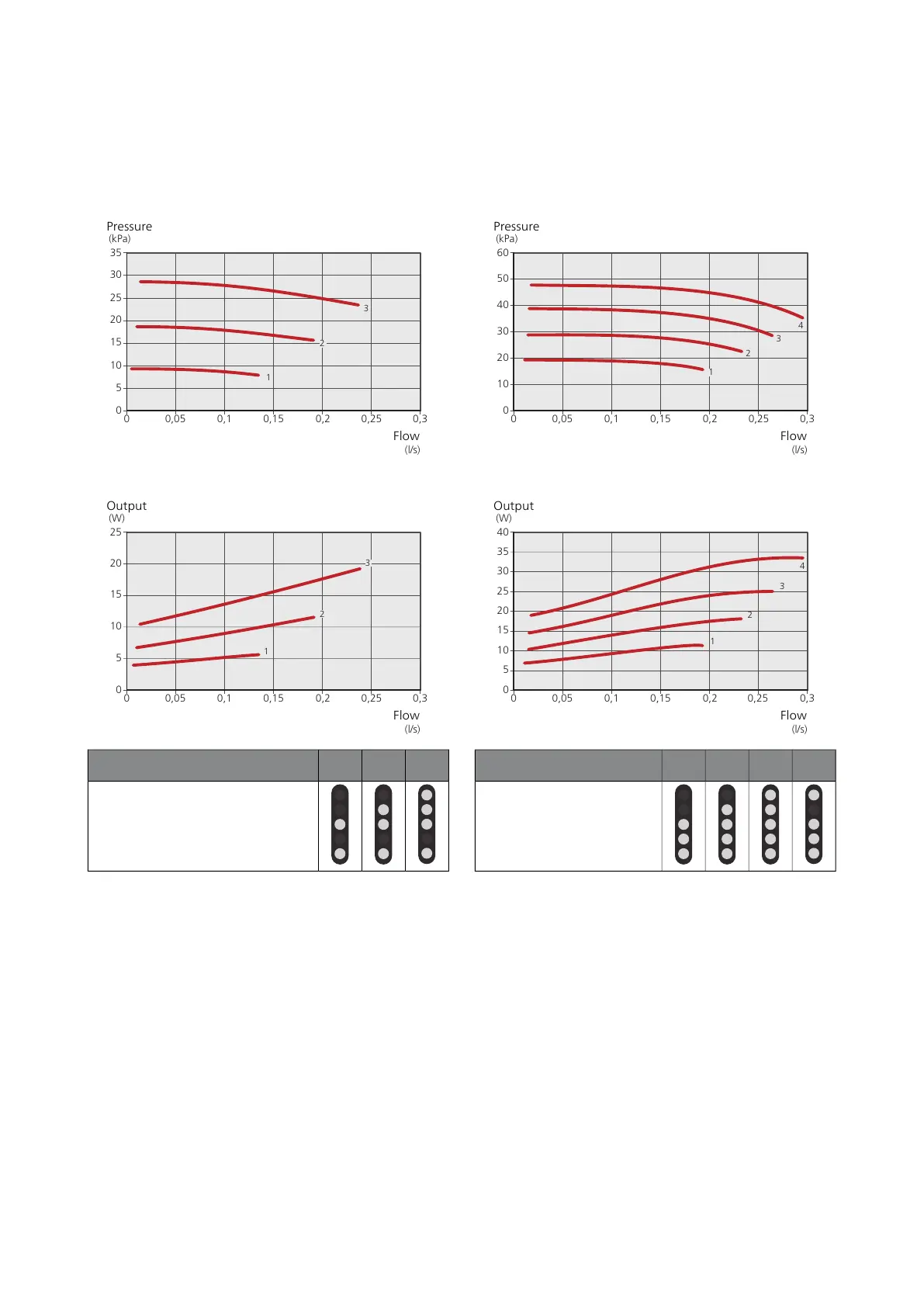

Pump speed, constant pressure (CP)
Capacity, circulation pump (CP)
0
0 0,05 0,1 0,15 0,2 0,25 0,3
5
10
15
30
25
20
35
Tryck
(kPa)
Flöde
(l/s)
3
2
1
Pressure
Flow
Output, circulation pump (CP)
0
0 0,05 0,1 0,15 0,2 0,25 0,3
5
10
15
20
25
Effekt
(W)
Flöde
(l/s)
3
2
1
Output
Flow
3*21Pump speed (CP)
LED indication
*The pump is factory-set with constant pressure (CP)
speed 3
Pump speed, constant curve (CC)
Capacity, circulation pump (CC)
0
0 0,05 0,1 0,15 0,2 0,25 0,3
10
20
50
40
30
60
Tryck
(kPa)
Flöde
(l/s)
4
2
1
3
Pressure
Flow
Output, circulation pump (CC)
0
0 0,05 0,1 0,15 0,2 0,25 0,3
5
10
35
30
25
20
15
40
Effekt
(W)
Flöde
(l/s)
4
2
1
3
Output
Flow
4321Pump speed (CC)
LED indication
37Chapter 6 | Commissioning and adjustingNIBE F470

Nibe F470 Specifications

General

Type	Exhaust air heat pump
ERP class heating	A++
Energy Efficiency Class	A++
Integrated Hot Water Tank	180 liters
Refrigerant	R290
Application	Residential
