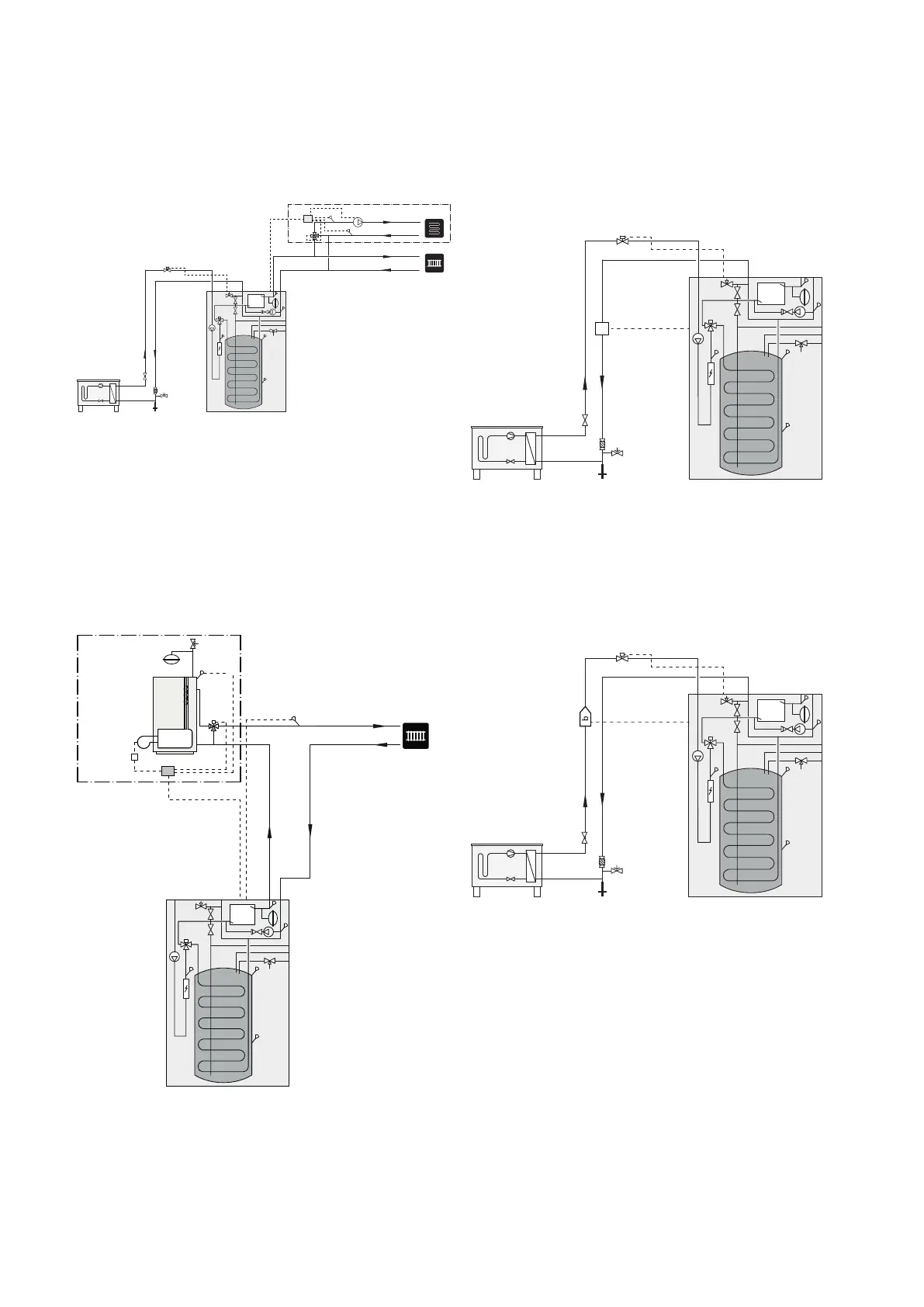

TWO OR MORE CLIMATE SYSTEMS
When more than one climate system is to be heated,
the following connection can be used.
The ECS 40/ECS 41. accessory is required for this con-
nection.
-BT3
-BT2
-EP21
-GP20
-QN25
-AA25
-EB101
-XL2
-XL1
-QM1
-QZ2
-QM40
-FL10
-EB15
-EB15
-FL7
-FL5
CONNECTION OF EXTERNAL HEAT SOURCE
For connection of an external energy source directly to
the internal volume in VVM 320, suitable when the en-
ergy source has a small volume, such as a boiler without
an accumulator tank or an electric heater. This docking
uses the energy source for both heating and hot water.
For connection, the AXC 40 accessory is required, see
“Accessories” on page 69. With such docking, the
“prioritised additional heat” function can be used.
-EB15
-FL5
-QN11
-EM1
-BT52
-CM1
-KA1
-EM1
-FL2
-EB15 -BT25
-XL1
-XL2
-AA25
CONNECTION OF EXTRA ELECTRICAL
ADDITION
For connection of extra electrical addition, in one step,
in event of a stoppage because of cold outdoor air. The
electrical addition should not be greater than the heat
pump's power, just before being stationary.
-EB101
-XL2
-XL1
-QM1
-QZ2
-QM40
-FL10
-EB15
-EB15
-FL7
-FL5
-EB1
-XL8
-XL9
CONNECTING EMK 300
Connecting energy measurement kit EMK 300 (BF1) to
VVM 320. EMK 300 is connected between the air/water
heat pump and VVM 320, however, before the first ac-
cessory. This accessory is used if energy measurement
of pool or cooling in a 4-pipe system is required.
-EB101
-XL2
-XL1
-QM1
-QZ2
-QM40
-FL10
-EB15
-EB15
-FL7
-FL5
-BF1
-XL8
-XL9
NIBE VVM 320Chapter 4 | Pipe connections22
