Nibe VVM 320 Installer Manual

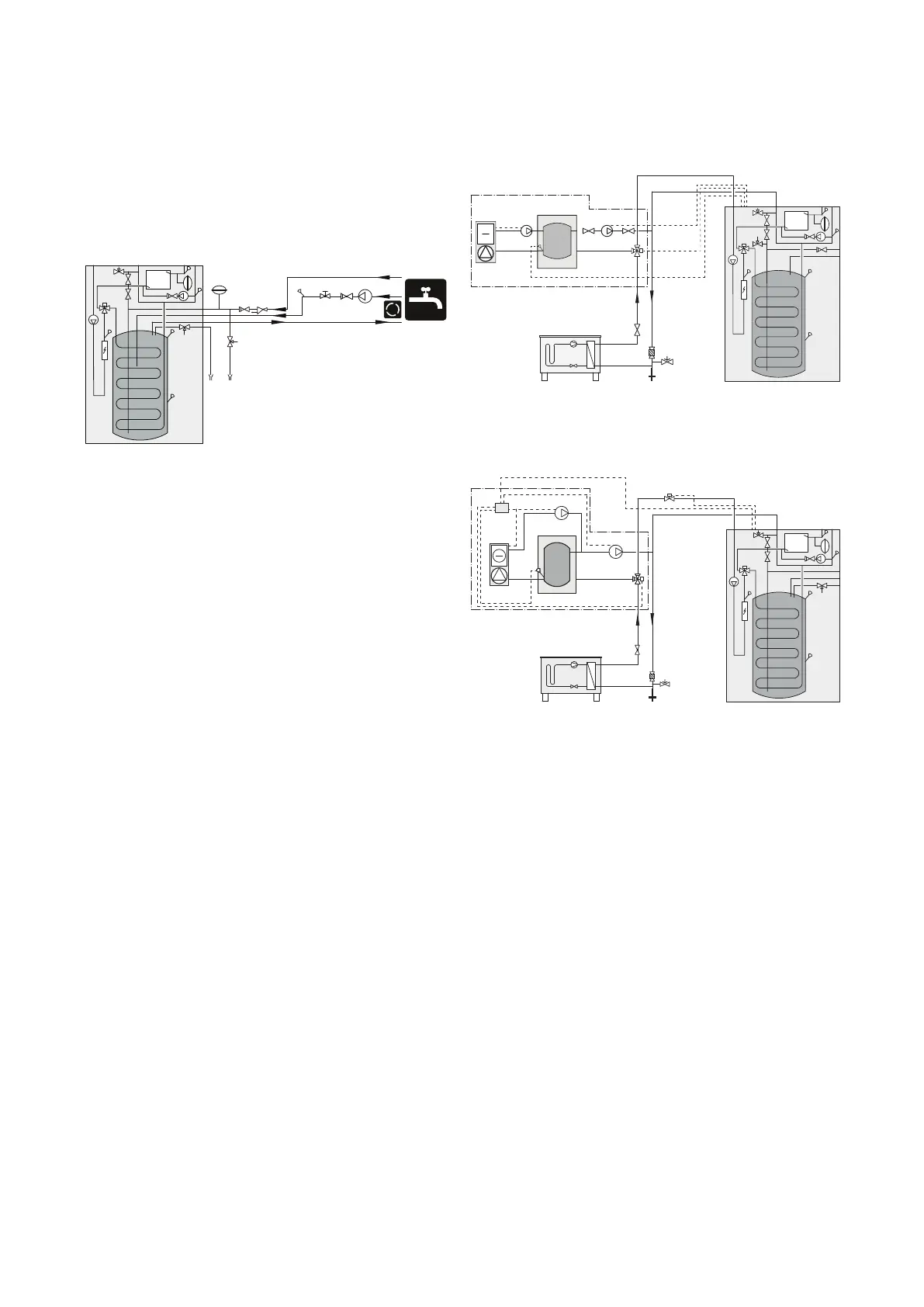

CONNECTING HOT WATER CIRCULATION
To reduce the risk of bacterial growth in systems with
hot water circulation, the temperature of the circulating
water should not fall below 50 °C. Nor should there be
any non-circulatory hot water pipes. Adjust the hot water
system to ensure that the temperature does not fall
below 50 °C in the extremities of the system.
An additional expansion vessel may be requiered.
-EB15
-GP11-BT82
-RM3
-RN1
-WM3
-FL1
-RM1
-WM4
-QN17
-CM4
-FL5
CONNECTION OF INTEGRATED COOLING IN
4-PIPE SYSTEM
Connection of integrated cooling in 4-pipe system via
AUX in VVM 320.
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15
-EQ1
-GP13
-CP10
-BT64
-QM42
-QM41
-GP12
-QN12
CONNECTING ACS 310
For connection of active cooling, ACS 310, see "Accessor-
ies" on page 69.
-CP10
-QN12
-AA25
-EQ1
-GP13
-GP12
-BT64
-EB101
-XL2
-XL1
-QM1
-FL10
-QM40
-QZ2
-EB15
-EB15
-FL7
-FL5
23Chapter 4 | Pipe connectionsNIBE VVM 320

Nibe VVM 320 Specifications

General

Dimensions (HxWxD)	1800 x 600 x 615 mm
Power Supply	230 V
Frequency	50 Hz
Protection class	IP21
Compatible with	Nibe heat pumps
Display	Touch display
Smart Home Integration	Yes, via NIBE Uplink
Operating temperature	0°C to +45°C
Relative humidity	Max. 95 %
Type	Control unit for heat pumps
