16
1 32
The control board is already in the “LEARNING MODE”
when shipped. If the board is not in “LEARN MODE”
press FUNCTION then select LEARN then SWING then
LIGHT, AVERAGE OR HEAVY, then press ENTER.
For dual gate installations - set one motor at a time.

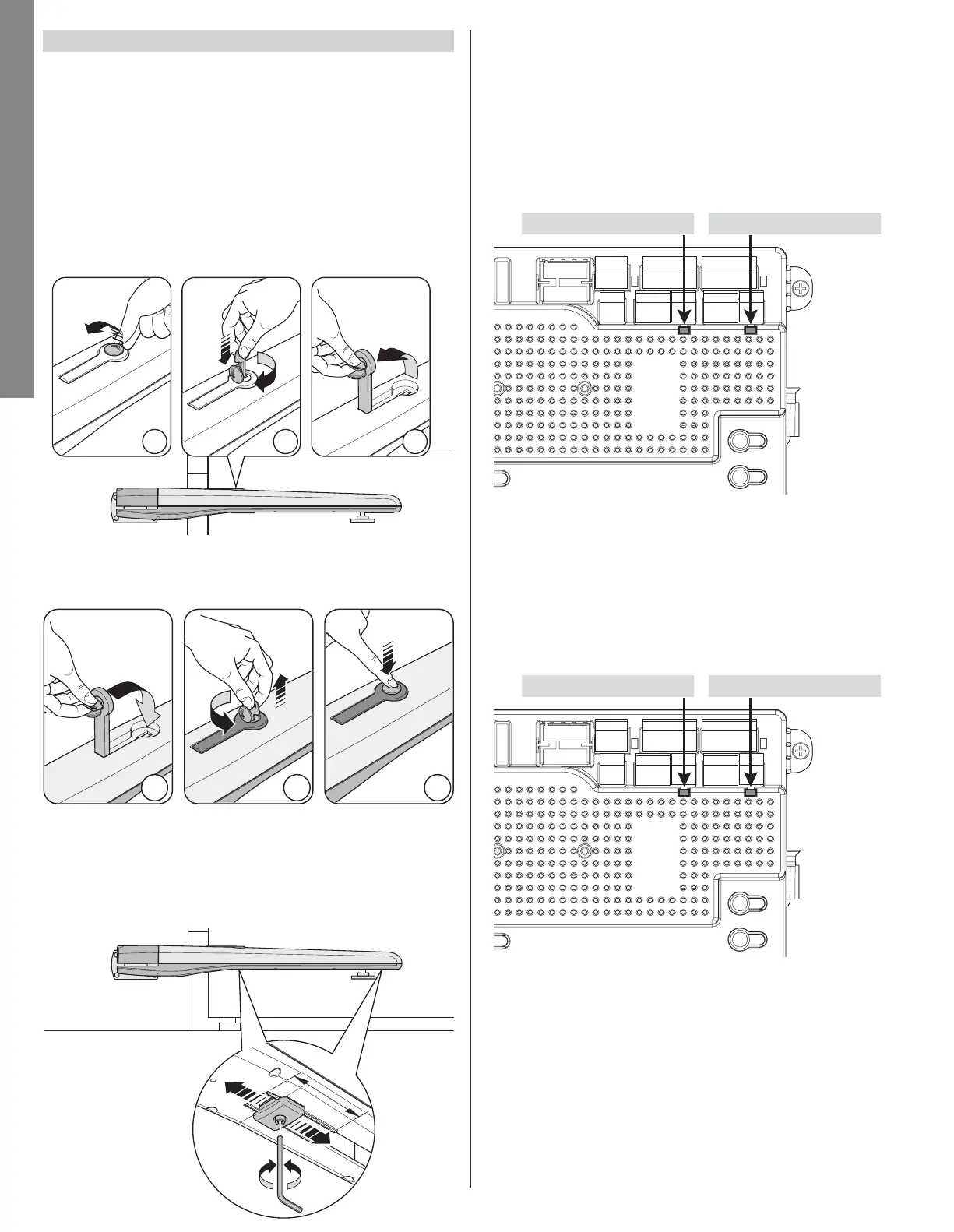

Using the MANUAL RELEASE, disengage the drive motor.
Move the gate manually (with your hands) to ensure that the
gate travels to the fully open and fully closed positions with
no binding or problems. Gate should move freely.
8.9 - LIMIT SWITCH ADJUSTMENT
1 32
If there is no binding present and the gate will fully open and
close manually without problems. Manually move the gate
mid-way and engage mechanical release and stow handle.
Test motor direction by pressing OPEN. If the gate instead
CLOSES swap the RED and BLACK motor leads.
Using the OPEN button on the front of the Control board,
hold the button down until the gate reaches the fully intended
open position.
Adjust the Open Limit Switch until the GREEN light
illuminates on the front of the control board. The FULLY
OPEN limit switch is now set.
MOTOR 1 LED - GREEN MOTOR 2 LED - GREEN
The open and close limit switches are located on the bottom
side of the actuator. Adjustments are made by loosening
the limit block bolt and sliding the limit assembly forward or
backward. Once the limit switch has been activated tighten
the bolt back down in the proper position
Using the CLOSE button on the front of the Control Board,
hold the button down until the gate reaches the fully intended
closed position.
Adjust the Closed Limit Switch until the RED light illuminates
on the front of the control board. The fully CLOSED limit
switch is now set.
MOTOR 1 LED - RED MOTOR 2 LED - RED
NT-T51K & NT-T71K INSTALLATION
