22
9.9 - SETTING THE LIMIT SWITCHES

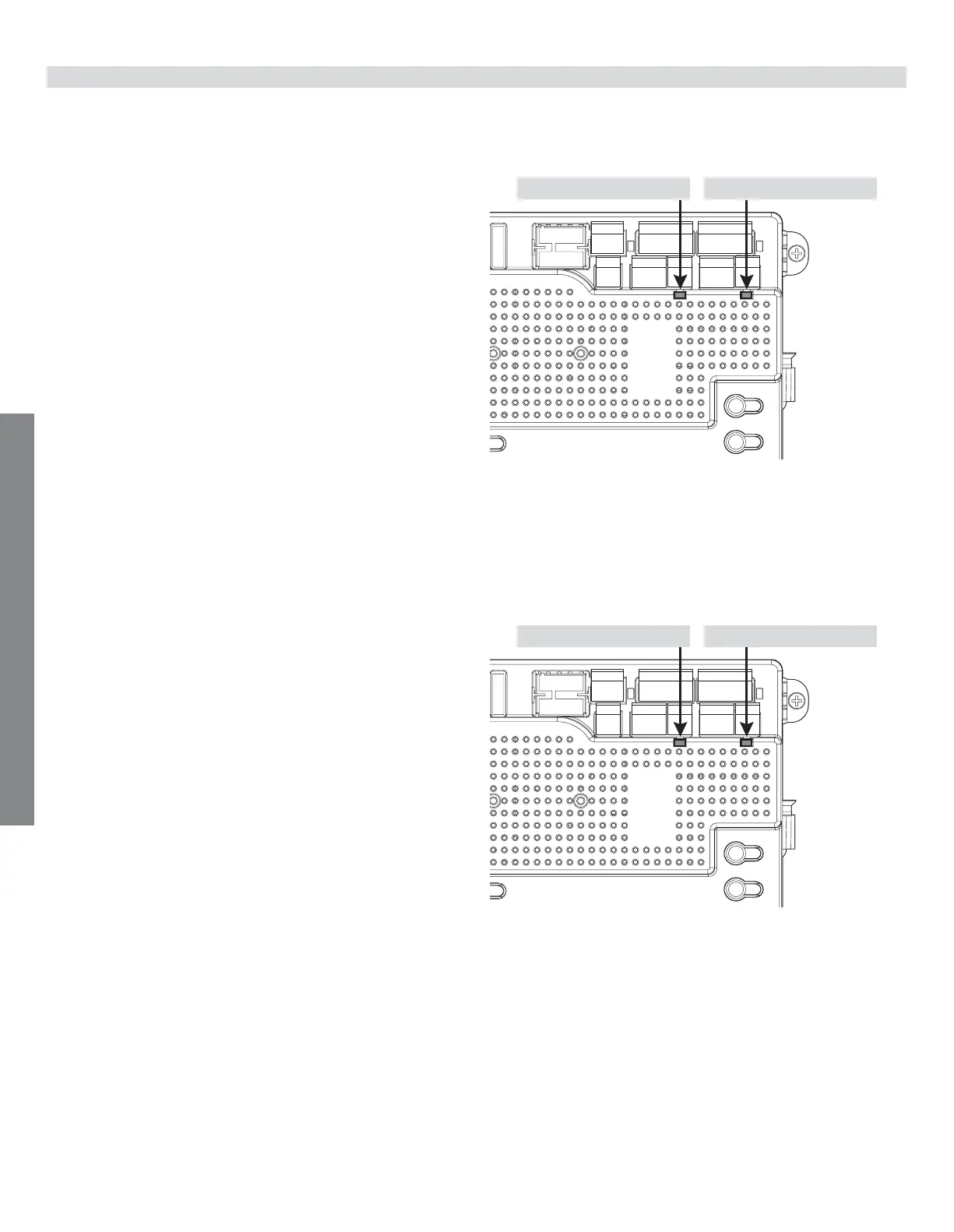

MOTOR 1 LED - GREEN MOTOR 2 LED - GREEN
MOTOR 1 LED - RED MOTOR 2 LED - RED
OPEN LIMIT
Green OPEN LED
1. Using the OPEN button on the front of the Control Board,
hold the button down until the gate reaches the fully
intended open position.
2. Adjust the Open Limit on the operator until the GREEN
light illuminates on the front of the control board as shown
above. The fully OPEN limit switch is now set.
Note: if red LED illuminates, reverse orange and white limit
wires
CLOSE LIMIT
Red CLOSE LED
3. Using the CLOSE button on the front of the Control
Board, hold the button down until the gate reaches the
fully intended closed position.
4. Adjust the Closed Limit on the operator until the RED light
illuminates on the front of the control board as shown
above. The fully CLOSED limit switch is now set.
Note: if green LED illuminates, reverse orange and white limit
wires
The control board is already in the “LEARNING MODE”
when shipped. If the board is not in “LEARN MODE”
press FUNCTION then select LEARN then SWING then
LIGHT, AVERAGE OR HEAVY, then press ENTER.
For dual gate installations - set one motor at a time.
15501K & 16501K INSTALLATION
