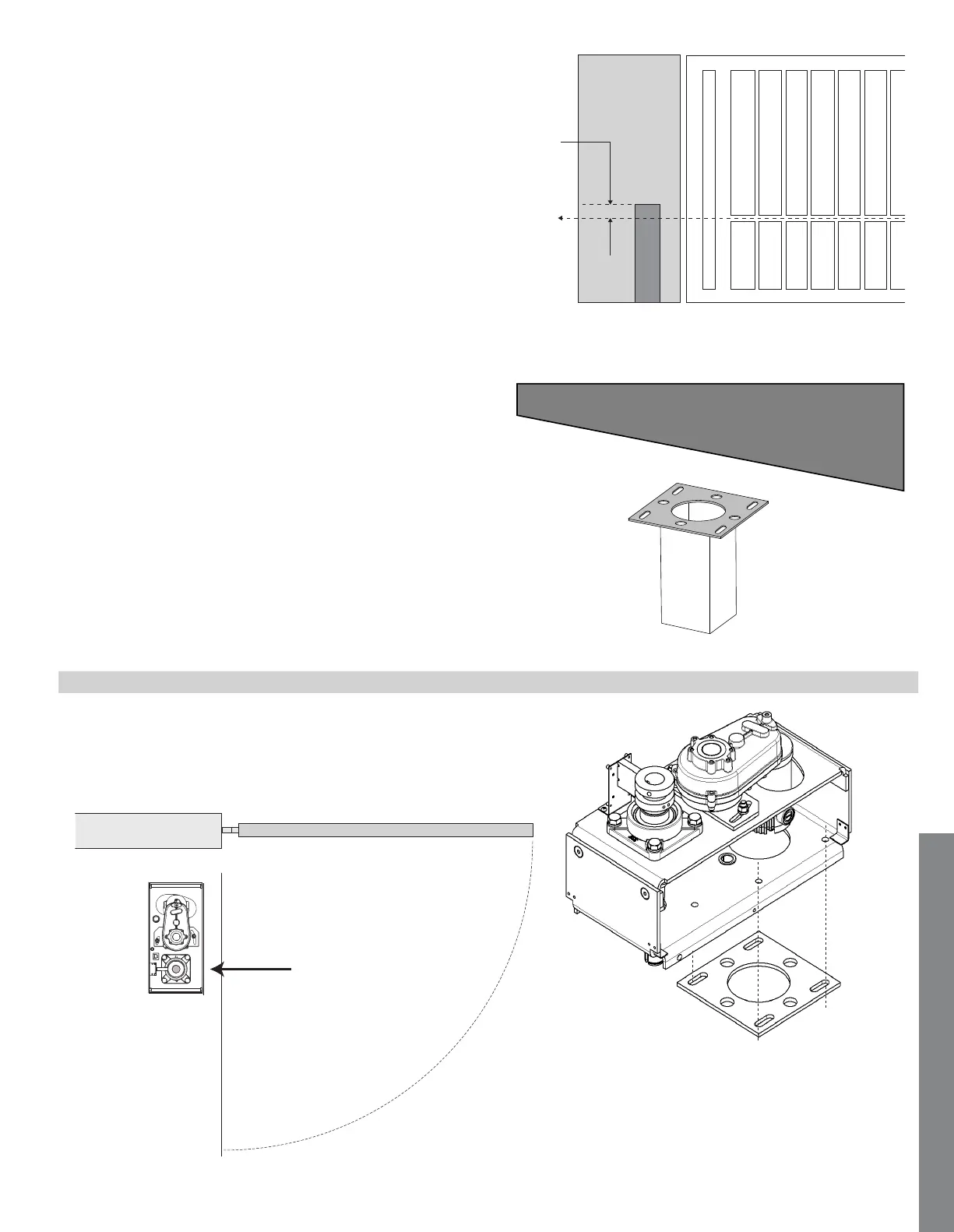

Horizontal
center line of
where gate
bracket is to
be installed
Post height
The 3500 operator is designed for installation using a
4”x4” square post with 1/4” wall thickness (not supplied).
1. Determine the height on the gate where the arm will
attach to.
2. The top of the post should be 2” above the centerline
of the location where the gate attach bracket will be
mounted to the gate. The gate attach bracket should
be mounted to a structural member on the gate, DO
NOT attach the bracket to pickets. The mounting post
should be square to the gate in the closed position
and level for proper operation.
3. Conduit should be considered at this time for cable
routing from the control box to the chassis assembly
Welding mounting bracket
Weld the mounting bracket on the top of the mounting
post. The bracket should be level and square to the
post.
Tack welds may be made from the top inside of the
bracket and post. Bottom welds should be made for
permanent rigidity.
10.3 - CHASSIS MOUNTING
Set the chassis on the mounting plate as shown and secure using
(4) 1/2” x 3/4” hex bolts and lock washers.
Chassis should be mounted
to plate so that the shaft for
the arm connection is on the
opposite side of mounting
plate from the gate when in
the closed position.
35001K & 36001K INSTALLATION
