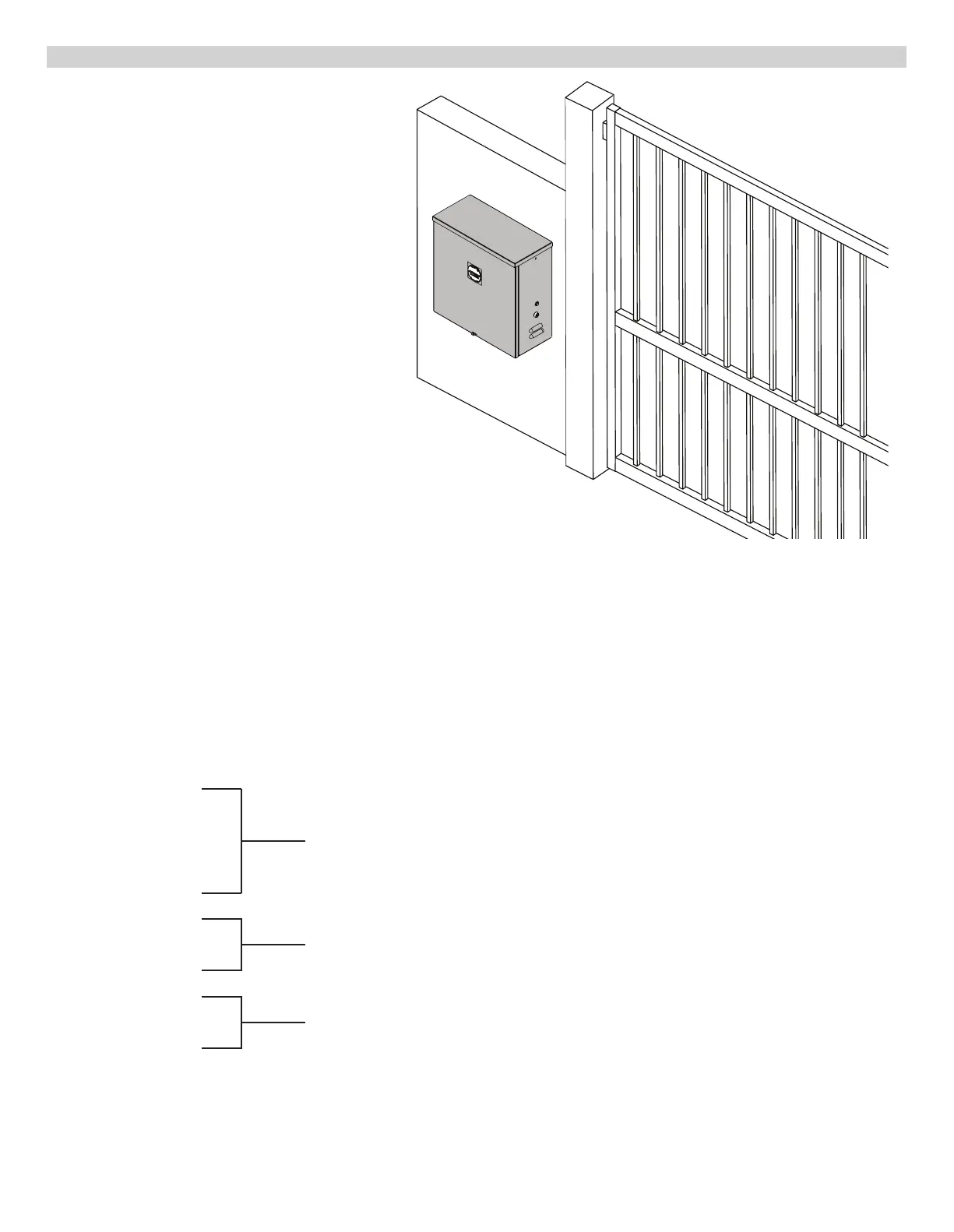

Mount the control box within 4 feet of the
motor assembly. Do not mount the control
box where the person using the push
button on the side of the box can come
in contact with the gate. Use mounting
hardware capable of supporting the weight
of the control box with the backup battery
included.
The CBOX1K control box is used for many different model operators. The following pages show installation guides for
these models. Refer to the correct model operator section for instructions on how to install and wire the actuators and
motors to the control board and proper setup of the limit swiches.
The following models use the CBOX1K control box:
NT-T51K
Pages 10 - 16
NT-T51KDUAL
NT-T71K
NT-T71KDUAL
15501K
Pages 17 - 22
16501K
35001K
Pages 23 - 29
36001K
7 - CONTROL BOX MOUNTING
