Nice Apollo CBOX1K User Manual

28

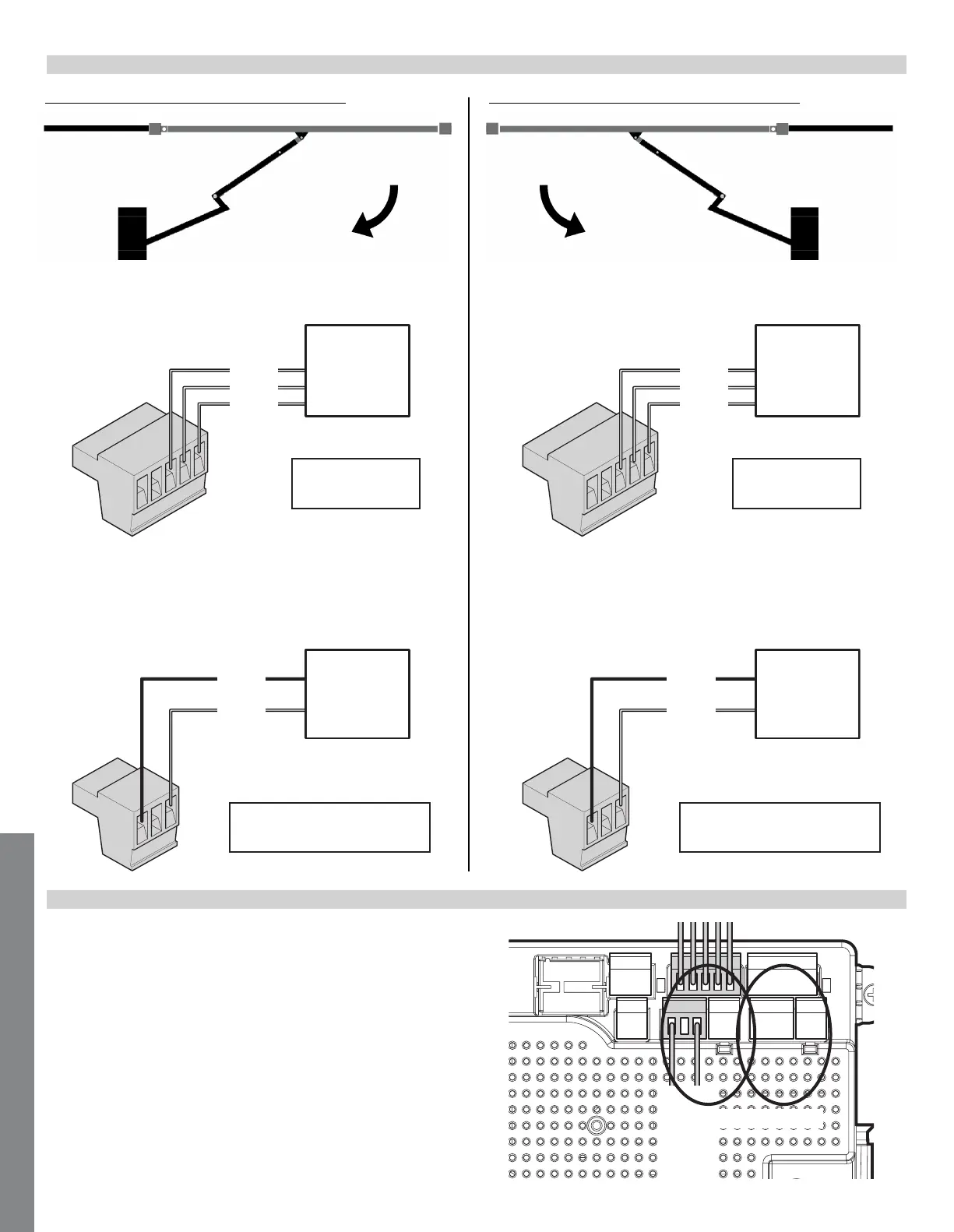

3500/3600 WIRING (LEFT HINGED GATE)
3500/3600 WIRING (RIGHT HINGED GATE)
Limit switch wiring
Connect the 3500 cable to the 5-pin connector as shown
below.
Limit switch wiring
Connect the 3500 cable to the 5-pin connector as shown
below.
Motor wiring
Connect the motor leads to the 3-pin connector as shown
below. Note: If the gate moves in the opposite direction
from what is expected, reverse the actuator wiring from
what is shown. (Red to Pin 3, Black to Pin 1).
Motor wiring
Connect the motor leads to the 3-pin connector as shown
below. Note: If the gate moves in the opposite direction
from what is expected, reverse the actuator wiring from
what is shown. (Red to Pin 1, Black to Pin 3).
1
2
3
4
5
3500 / 3600
Limit wiring
White: Close limit
Orange: Open Limit
Green: Limit Common
Green
Orange
White
1
2
3
4
5
3500 / 3600
Limit Wiring
White: Close limit
Orange: Open Limit
Green: Limit Common
Green
Orange
White
1
2
3
3500 / 3600
Motor Leads
NOTE: If gate moves in opposite
direction from what is expected,
reverse the motor power lead wiring
Red
Black
1
2
3
3500 / 3600
Motor Leads
NOTE: If gate moves in opposite
direction from what is expected,
reverse the motor power lead wiring
Black
Red
Motor 1 Motor 2
Install the 5 and 3-pin connector for motor 1 into the connection
labeled “Motor 1” on the controller as shown.
For a dual gate installation install the 5 and 3-pin and connector
for motor 2 into the connection labeled “Motor 2”.
Note: (Motor 1) - Make sure motor lead connector is plugged in
below the limit 5 pin terminal connector
10.8 - LIMIT AND MOTOR CONNECTION TO THE BOARD
35001K & 36001K INSTALLATION
10.7 - LIMIT AND MOTOR WIRING
