10.2 - POST INSTALLATION
IMPORTANT - Never weld parts to the gate or posts when the operator circuit board is powered. Doing so may damage
the board beyond repair.

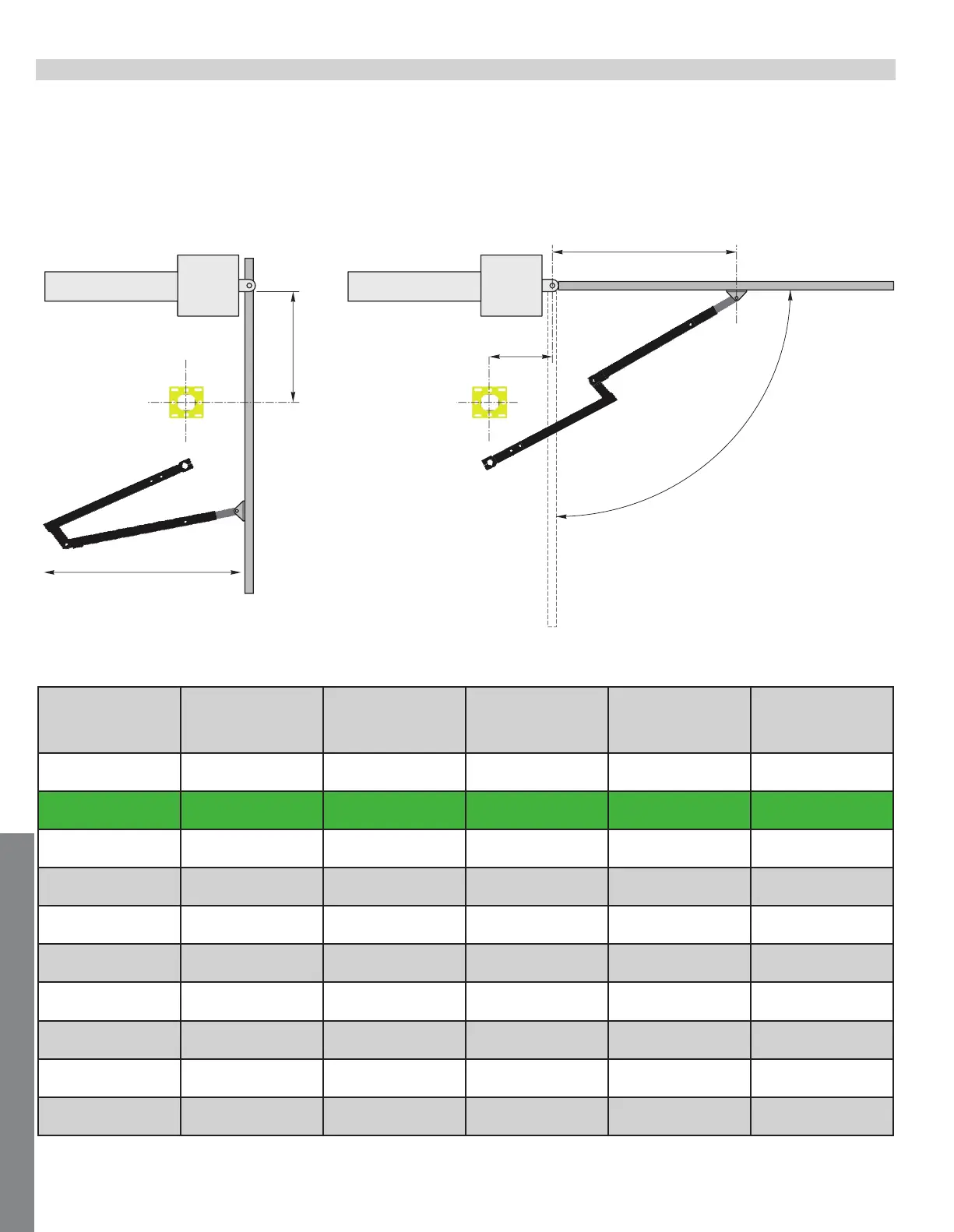

Post location guide
Determine the angle that the gate will open to (A). Select the coordinates (B&C) as shown on the chart below. Distances are
from the hinges square to the center of the mounting post. Longer gates should operate at slower speeds.
E
C
B
A
OPTIMUM SETTING SHOWN IN GREEN
A
Open Degrees
B
Inches
C
Inches
D
Inches
E
Inches
Approximate
seconds to
open
90 10 31.2 46.3 40.6 15
90 10 30 47.1 42 16
92 15 30 42.1 34 15
97 13.5 25.5 46.3 46.8 17
97 15 25 45 47.1 16
100 20 25 40 43.7 13
107 20 20 42.4 53.5 17
110 25 20 37.4 50.6 13
116 25 15 39.3 58.4 16
117 20 15 44.3 50.3 20
35001K & 36001K INSTALLATION
