36

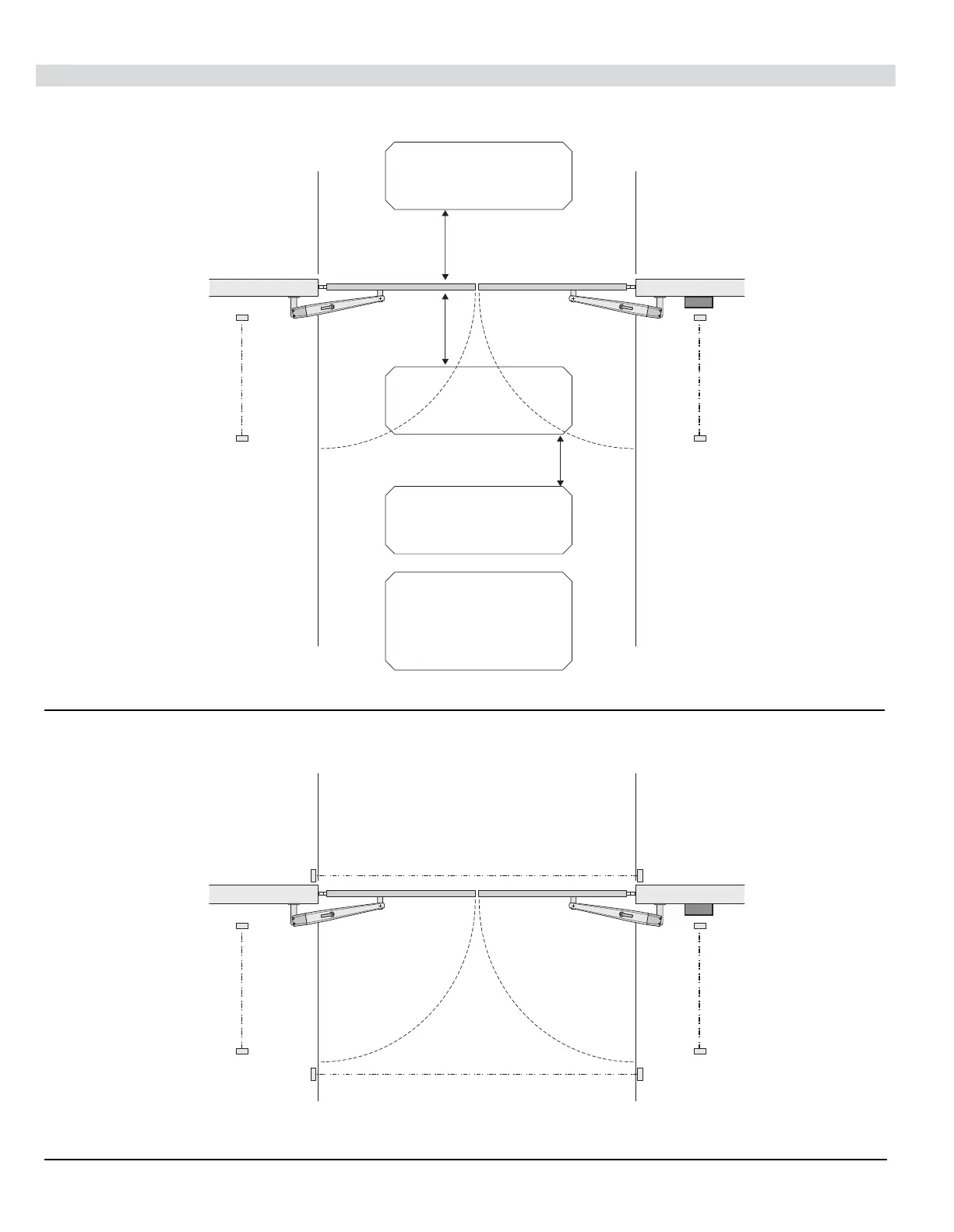

17 - GENERAL LA
YOUT AND SAFETY ACCESS
Entrapment Protection Inputs - T
ypical Installation Diagram Utilizing Loop Sensors and Photocells
Figure - LA
YOUT FOR IN-GROUND LOOPS
Entrapment Protection Inputs - T
ypical Installation Diagram Utilizing Photocells
Figure
-
LA
YOUT
FOR
PHOTOCELLS
Loop (Safety)
Loop (Safety)
Loop (Shadow)
Loop (Exit)
4’ Min. from closed gate
4’ Min. from closed gate
4’ Min. from open gate
Photo 2
Photo 2
Outside
Gate
Outside
Gate
Photo 2
Photo 2
Photo 1
35
37
Table of Contents
Table of Contents
3
Cautions and Notes
4
Extremely Important
4
Etl Definitions Compliant to Ul325
4
Overview
4
Main Control Board
4
Main Control Board Specifics
4
Gate Information
4
Astm F2200
4
Gate Latches
5
Specific Applications
5
Swing Gates
5
General Requirements
5
Safety and Cautions
5
Properly Installed Safety Devices
5
Safety Signs, Notices to Personnel Warning Signs
5
Gate System Safety Devices
6
Infrared Beams and Warning Signs
6
Establish the Location
6
Read and Follow All Instructions
6
Keep Children Away
6
Test the Gate System
6
Keep Gates Properly Maintained
6
Installation Notes
6
Follow Instructions
6
Intended Usage
6
Circuit Board Layout
8
Incoming Power Wiring
8
Control Box Mounting
9
Nt-T51K & Nt-T71K Installation
10
Parts Identification
10
Pivot Arm Installation
11
T5 Pivot Arm Bracket Location Graph
12
T7 Pivot Arm Bracket Location Graph
13
Gate Bracket Mounting
14
Actuator Mounting
14
Actuator Wiring
15
Limit & Motor Connection to the Board
15
Limit Switch Adjustment
16
15501K & 16501K Installation
17
Parts Identification
17
Pull to Open Installation
18
Push to Open Installation
19
Actuator Mounting
19
Actuator Wiring
20
Gate Bracket Mounting
20
Limit & Motor Connection to the Board
21
Limit Switch Adjustment
21
Setting Limit Switches
22
35001K & 36001K Installation
23
Parts Indentification
23
Post Installation
24
Chassis Mounting
25
Control Arm Assembly
26
Gate Bracket Mounting
27
Chassis Wiring
27
Limit & Motor Wiring
28
Limit & Motor Connection to the Board
28
Setting Limit Switches
29
Learning Mode
30
Accessory Inputs and Outputs
31
Outputs
31
Inputs
31
Communication Buses
32
Programming the Plug-In Receiver and Remote Controls
32
120Vac Power Wiring
33
Solar Panel Chart
33
Optional Inputs
34
Fire Dept. Connection
34
Magnetic Lock Connection
34
Guard Station
34
Exit and Edge Inputs Wiring Diagram
34
Radio Receiver Connection (Third Party)
35
Optional Power Output
35
Inspection and Operation
35
General Layout and Safety Access
36
Accessories and Sensors
37
Board Nomenclature
38
Programming Buttons
39
Force
39
Speed
39
Acceleration
39
Delay
39
Function
39
Display
40
Emergency Vehicle Access
41
Glossary
41
Maintenance Schedule
42
Troubleshooting
42
Control Box Dimensions
43
Exploded View
44
Warranty
45
Installation Checklist
46
