7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
16

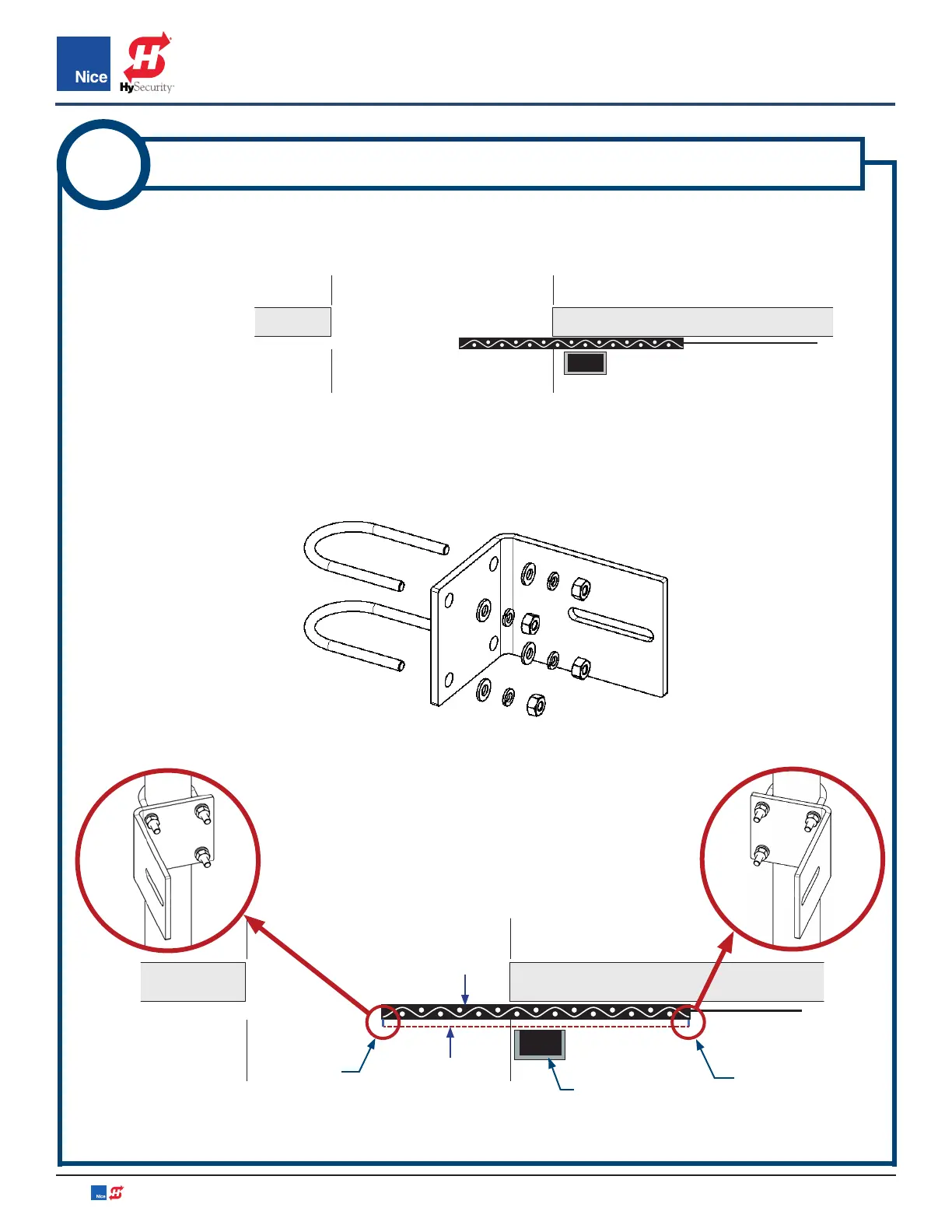

IMAGE 2B-1: GATE IN CENTER TRAVEL POSITION (PART WAY OPEN)
2B
7351: MOUNT CHAIN BRACKETS TO GATE FRAME
1. Put the gate in the center of travel of the opening (IMAGE 2B-1). The gate should remain in this
position while the chain is attached to the operator.
2. Mount chain brackets (IMAGE 2B-2) to gate frame at either end of gate (IMAGE 2B-3), either by using
the four supplied 2” U-Bolts with hardware or by tack welding in place.
IMAGE 2B-2: CHAIN BRACKET AND HARDWARE
IMAGE 2B-3: CHAIN BRACKETS INSTALLED ONTO GATE
GATE
TOP VIEW
CHAIN
CONTROL
BOX
CHAIN
BRACKET
CHAIN
BRACKET
CHAIN BRACKET
AT LEFT SIDE
OF GATE
CHAIN BRACKET
AT RIGHT SIDE
OF GATE
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com
