7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
15
SECTION 7: 7351 - PAD-MOUNT INSTALLATION

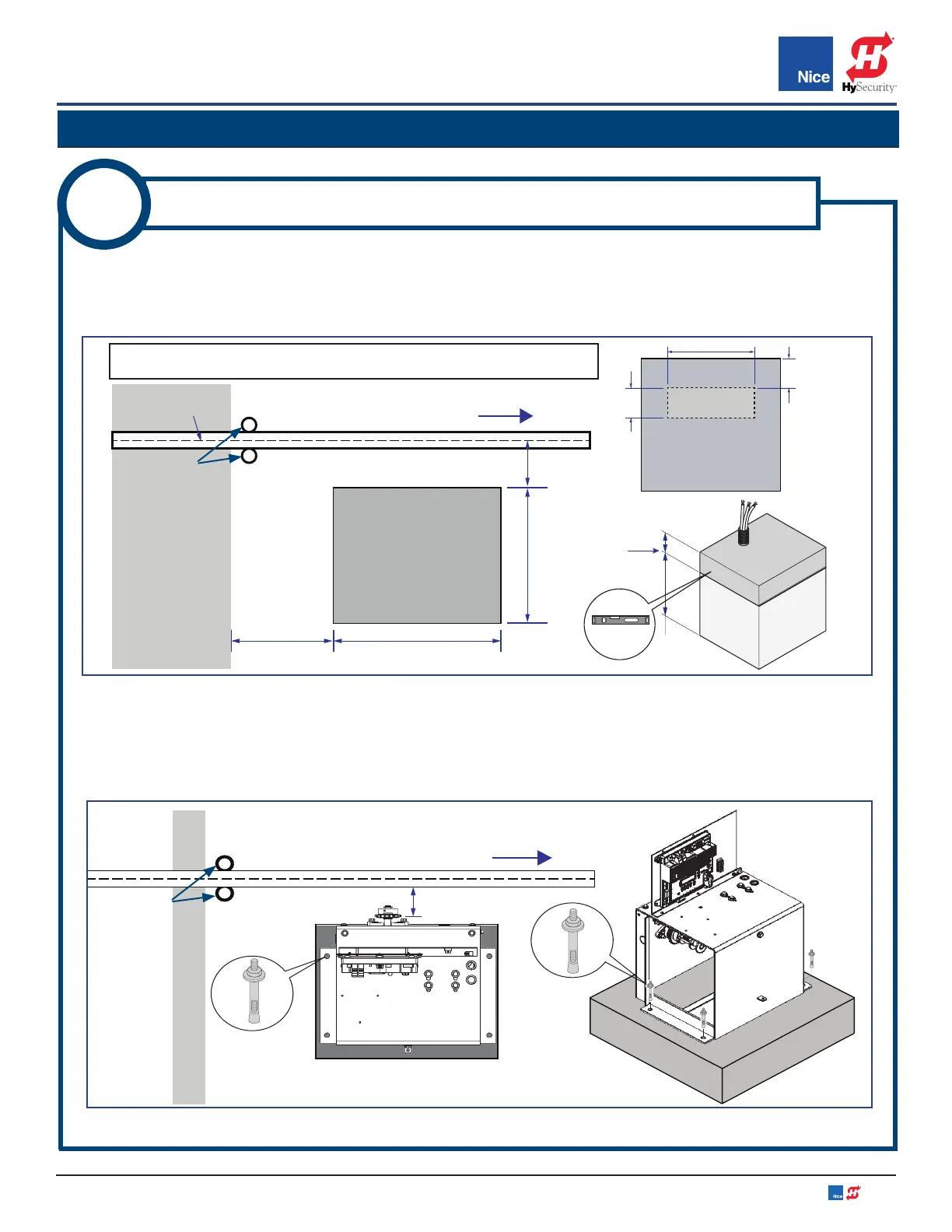

IMAGE 1B-1: BUILDING THE MOUNTING PAD
IMAGE 1B-2: INSTALLING CONTROL BOX ONTO MOUNTING PAD
1B
7351: INSTALL PAD-MOUNT CONTROL BOX
1. Fabricate a concrete structure sufficient to stabilize and mount the operator. Consult local building
codes to build a pad that meets or is sufficient for the soil type and climate and capable of supporting
the loads imposed by the operator during operation.
2. Set the operator on the pad and align the sprockets 3” to 5” from the inside surface of the gate.
3. Mark four mounting holes on the pad, remove operator and drill holes (per anchor bolt manufacturers
instructions). Replace operator and anchor to the pad using (4) 1/2” anchor bolts as shown.
DRIVEWAY
Concrete Pad
12” 24”
24”
5”
Centerline of gate
Area for conduit entry
5”
14”
3”
6”
24”
Direction of opening
LEVEL
USE
LEVEL
GROUND
Concrete Pad
x 4
3”-5”
Direction of opening
x 4
GATE
ROLLERS
GATE
ROLLERS
NOTE: Consider conduit requirements before building pad.
TOP VIEW
TOP VIEW
