Nice 7251 - Blue Bus Photo Eye Installation; Determine Bluebus Photo Eye Locations

7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
23
See below for suggestions of photo eye positioning for your gate configuration.

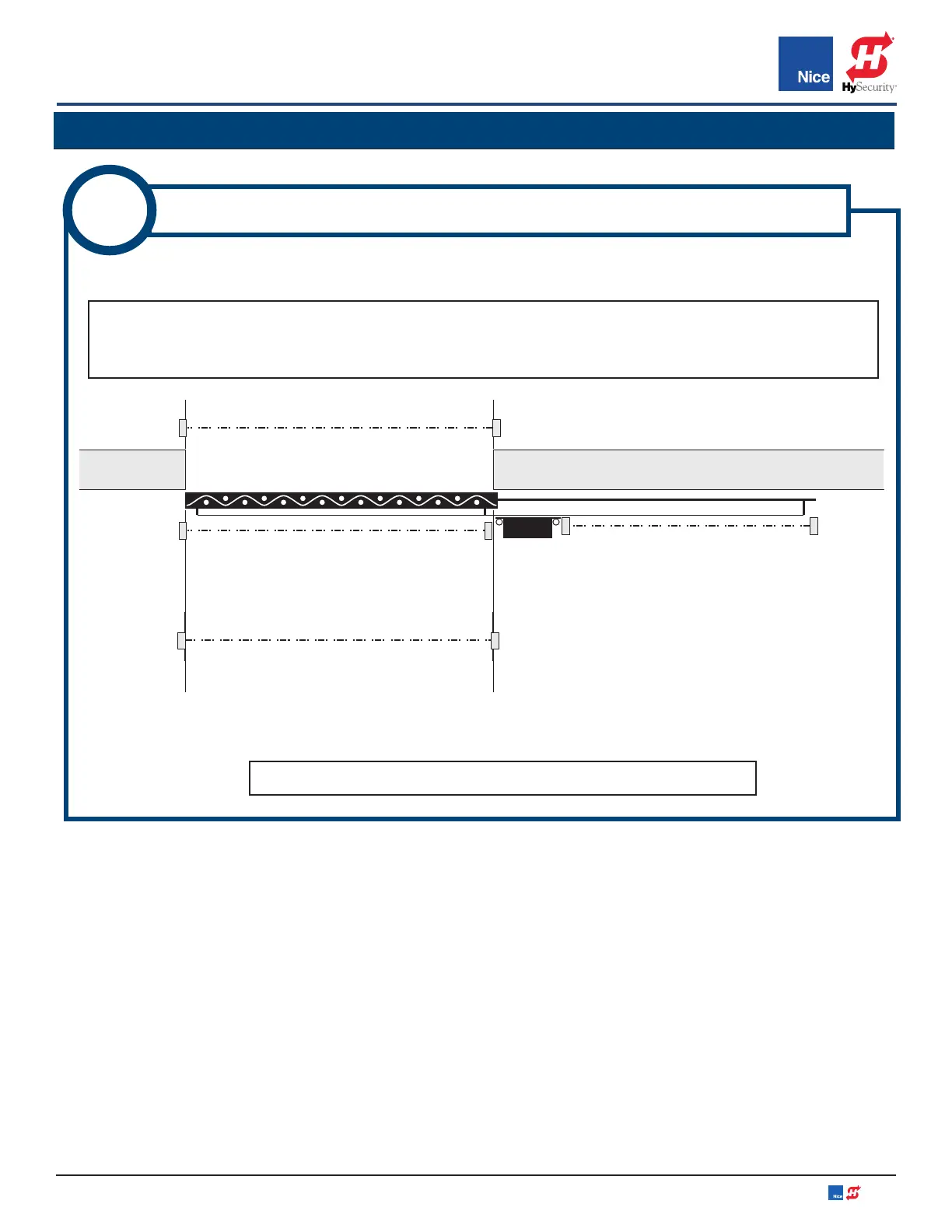

IMAGE 6-1: POSSIBLE ENTRAPMENT ZONES AND PHOTO EYE LOCATIONS
NOTE:
Name designations in IMAGE 6-1 (P1, P2, etc.) are arbitrary designations used to indicate jumper settings
for each photo eye location. See INSTRUCTION 7 for jumper settings.
6
DETERMINE BLUEBUS PHOTO EYE LOCATIONS
NOTE: Other Entrapment zones may exist and must be protected.
RX = Receiver
TX = Transmitter
P* = Jumper Setting
RX
RX
RX
RX
SECURE
SIDE
SECURE
SIDE
P3/P4
P5
P2
P1TX
TX
TX
TX
SECTION 9: BLUE BUS PHOTO EYE INSTALLATION
