Nice 7251 - Page 22

7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
22
5B: 7351
-
CONTROL BOARD WIRING (CONT.)
NOTE: Gate
view is from
secure side.

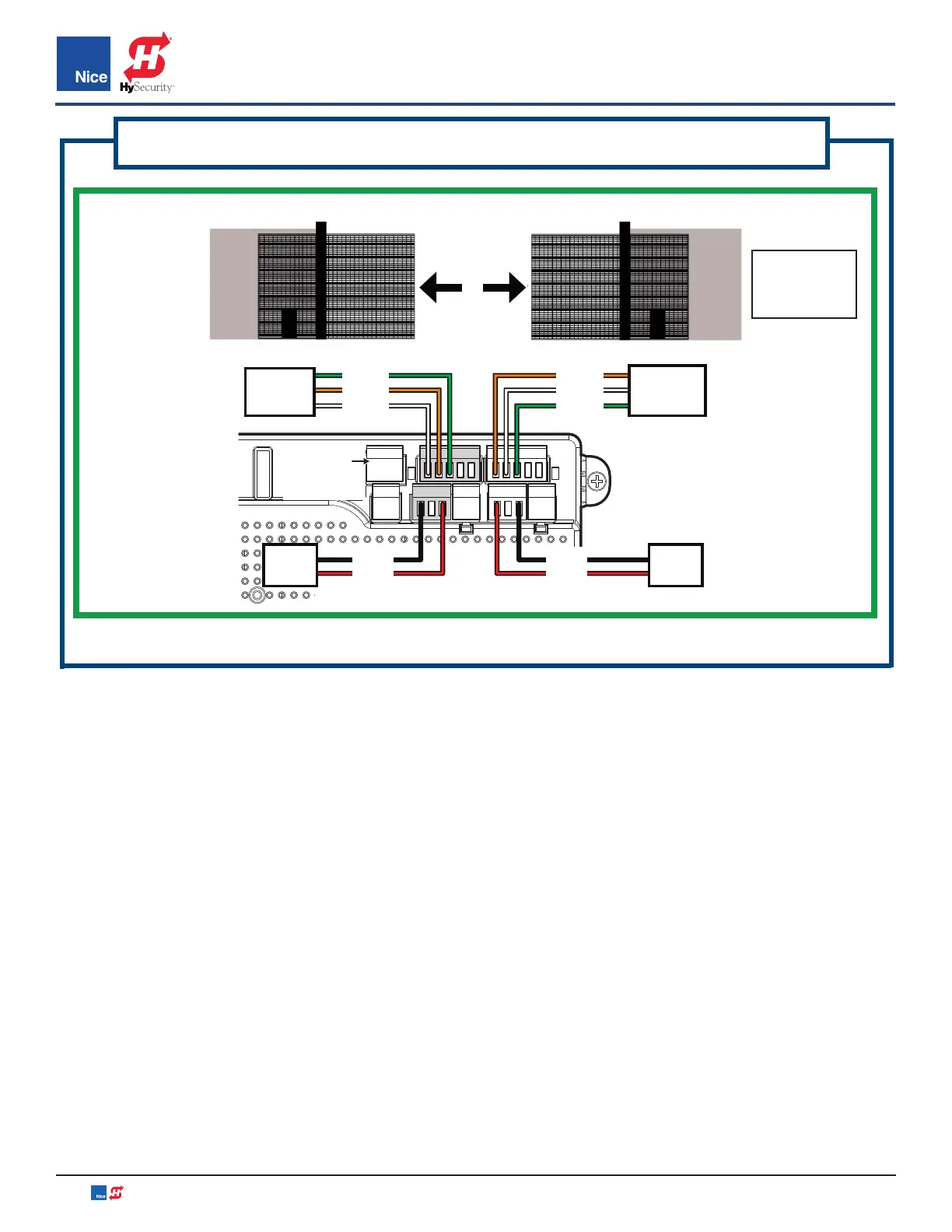

IMAGE 5-3B: DUAL GATE WIRING
OPEN
LEFT/RIGHT
DUAL GATE
WHITE: Close Limit
ORANGE: Open Limit
GREEN: Limit Common
MOTOR 1 MOTOR 2
ORANGE
WHITE
GREEN
GREEN
ORANGE
DO NOT USE
7351 DUAL MOTOR
BLACK
RED
RED
BLACK
7351
LIMITS
LEFT-HAND
7351
LIMITS
RIGHT-HAND
7351
MOTOR
LEADS
7351
MOTOR
LEADS
WHITE
MOTOR 2MOTOR 1
