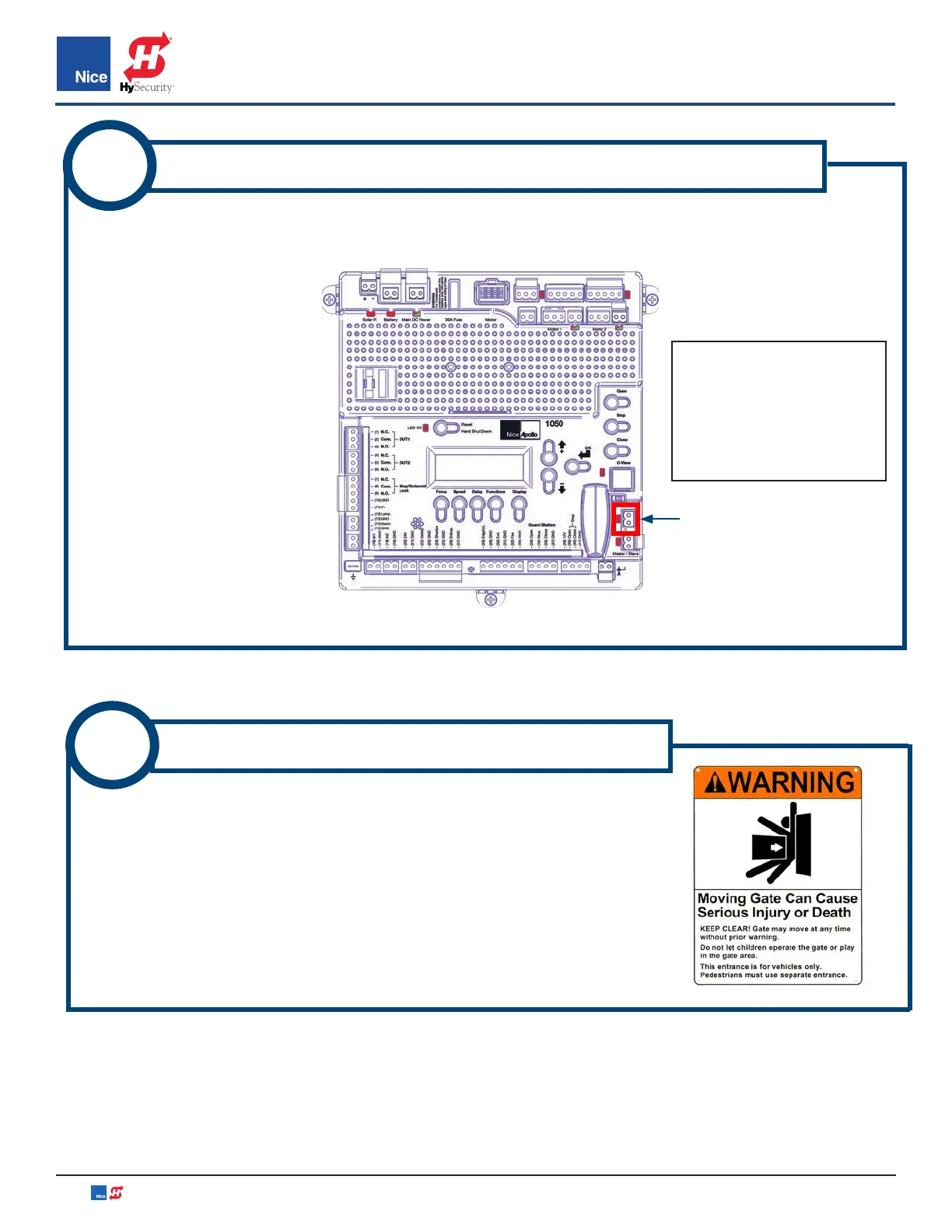

CONNECT BLUEBUS PHOTO EYES TO BOARD
IMAGE 9-1: BLUEBUS CONNECTOR LOCATION
Install through beam photo eye bus wires (no polarity) into 2-pin BlueBUS connector on control board
(IMAGE 9-1). If an alternative photo eye is used, follow installation instructions included with it.
9
1. Place one warning sign (IMAGE 10-1) on outside of gate and the other
inside of gate in high visibility locations (eye height) to warn of entrapment
dangers. If signs cannot be attached to gate, ensure they are as visible as
possible to pedestrians and anyone operating the gate.
2. Use two tie wraps per sign, or alternative means, to securely affix signs to
gate.
10
ATTACH WARNING SIGNS TO GATE
IMAGE 10-1: GATE ENTRAPMENT WARNING SIGN
BLUEBUS
CONNECTOR
IMPORTANT!
Do not attempt to jumper
or short the BlueBus
connector pins as this
will damage the control
board.
